A cooling unit is the single most important purchase in any serious wine cellar, and how it’s installed matters as much as which model you buy. A correctly sized Wine Guardian unit that’s installed with the wrong clearances, a poor drain, or a heat-rejection space that’s too small will short-cycle, ice up, or fail to hold 55°F — and it will void parts of your warranty in the process. This guide walks through what each Wine Guardian system type actually requires, the step-by-step process for the installs a capable homeowner can do, and where a licensed contractor becomes mandatory. We sell the full Wine Guardian line at Wine Majesty and field these questions every week, so this is the practical version — no filler.
First, know which system type you have
Wine Guardian builds three installation categories, and the requirements diverge sharply between them. Choosing the wrong type for your space is the most expensive mistake in this whole process, so settle this before you cut a single hole.
Through-the-wall (TTW) units are ductless, self-contained coolers that mount in an opening in the cellar wall — the cold side faces the cellar, the hot side exhausts into an adjacent space. Models like the TTW009 (up to ~1,100 BTU/h) and TTW018 (up to ~2,100 BTU/h, suitable for rooms up to roughly 1,500 cubic feet) are the simplest to install. No copper, no licensed contractor required.
Ducted self-contained units (the D-series: D025, D050, D088, D200) hold the compressor, condenser, evaporator, fans, and controls in one cabinet that lives outside the cellar. Insulated ductwork carries cold air in and pulls warm air back. Because everything is self-contained, there’s no copper line set to braze — you connect ducts, a drain, and power. These are the workhorses for most residential cellars.
Ducted split systems (the DS-series) separate the evaporator (fan-coil) from the condensing unit, linked by a refrigerant line set. This lets you put the noisy, heat-generating condenser far away — even outdoors. Splits require a licensed HVAC contractor to braze the line set, pull a vacuum, and charge the system. Do not attempt this yourself.
| System type | Example models | Typical coverage | Copper line set? | DIY-friendly? |
|---|---|---|---|---|
| Through-the-wall | TTW009, TTW018 | Up to ~1,500 cu ft | No | Yes (handyperson) |
| Ducted self-contained | D025, D050, D088, D200 | 250–7,000 cu ft | No | Yes, with care |
| Ducted split | DS025, DS050, DS088, DS200 | 250–7,000+ cu ft | Yes | No — licensed contractor |
Ducted self-contained coverage by model: D025 handles 250–2,000 cu ft, D050 covers 650–3,000, D088 covers 850–4,500, and D200 covers 1,500–7,000. If you haven’t confirmed your number yet, work through our Wine Guardian BTU sizing guide first — installation can’t fix an undersized unit.
Pre-installation requirements every install shares
Regardless of system type, four conditions have to be right before the unit runs. Get these wrong and even a perfectly sized unit will struggle.
A sealed, insulated, vapor-barriered room

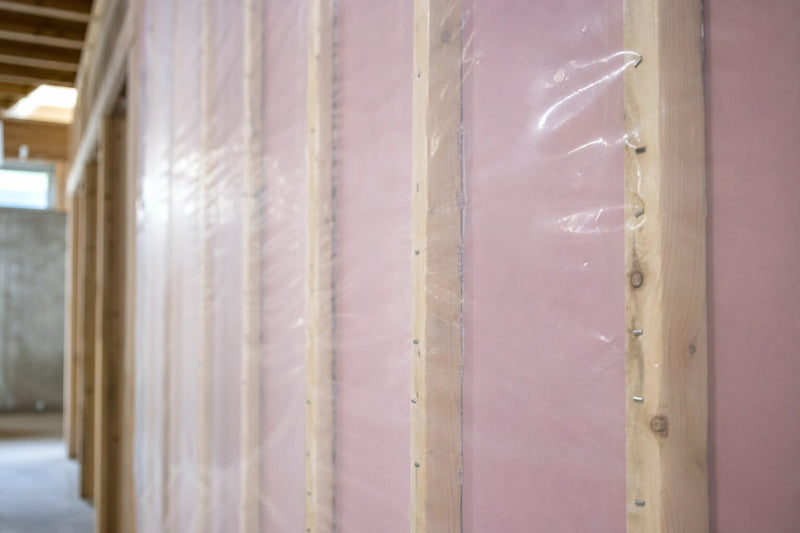

A cooling unit conditions a sealed box. If the cellar leaks air or lacks a vapor barrier, the unit fights the rest of your house indefinitely, runs constantly, and the evaporator coil can ice over. Closed-cell spray foam or a poly vapor barrier on the warm side of the insulation, an exterior-grade insulated door with a full sweep and gasket, and sealed penetrations are non-negotiable. If your room isn’t there yet, start with our wine cellar insulation and vapor barrier guide.
Somewhere for the heat to go
Every cooling unit moves heat out of the cellar and dumps it somewhere. That somewhere needs to be large enough to absorb it. Wine Guardian’s guidance is that the space receiving the exhaust should be at least three times the volume of the wine room, or the hot air should be vented outdoors. For through-the-wall units, leave 3–5 feet of clear space on the exhaust side. Never exhaust into a small closet, a sealed mechanical room, or back into the cellar — trapped heat raises ambient temperature, the unit can’t reject heat, and it overheats.
Ambient temperature within range
Self-contained units are rated for indoor ambient conditions; they are not designed to sit in a 110°F attic or an unheated 20°F garage. If the condenser will live somewhere that gets cold in winter, you need a low-ambient option — Wine Guardian’s split condensing units offer a low-ambient package rated down to about 20°F. Plan the equipment location around where it will actually live year-round, not just in summer.
Electrical and drainage
Most residential Wine Guardian units run on a standard 115V circuit, but confirm the amperage on your specific model’s spec plate and give it a dedicated circuit so it isn’t sharing a breaker with other loads. For moisture: the unit pulls humidity out of the air, collects it in a condensate pan, and that water has to go somewhere. Plan either a gravity-fed drain line (sloped continuously to a drain) or a condensate pump if you can’t get gravity fall. A drain line that’s flat or back-pitched will overflow.
How to install a through-the-wall unit
This is the most DIY-accessible Wine Guardian install. A handy homeowner can complete a TTW018 in an afternoon.
- Confirm the exhaust space. The room behind the cellar wall must be conditioned (or vented) and at least three times the cellar’s volume, with 3–5 feet of clearance on the hot side.
- Frame the opening. Cut and frame a rough opening to the dimensions on your model’s spec sheet, in an interior wall — not an exterior wall exposed to weather extremes.
- Set the unit and seal it. Slide the cooler into the opening so the cold side faces the cellar and the exhaust faces the adjacent space. Seal the perimeter with closed-cell foam so cellar air and house air don’t mix around the cabinet.
- Run the condensate drain. Connect the drain to a gravity line or pump. Confirm continuous downhill slope.
- Power and commission. Plug into the dedicated circuit, set the controller to 55°F, and let it run. Watch the first 24 hours for proper pulldown and a dry drain pan.
How to install a ducted self-contained unit
The D-series lets you hide the equipment in a basement, attic, or mechanical room and duct conditioned air into the cellar — quieter and more discreet than a wall unit.
- Locate the cabinet in a space that meets the ambient and heat-rejection requirements, with service access on all sides the manual specifies.
- Run supply and return ducts. Wine Guardian sells duct kits by unit size; a kit typically includes two adapter collars, a 25-foot length of round flexible insulated duct, and two straps. Keep runs as short and straight as practical — long, kinked, or uninsulated duct kills capacity and causes condensation.
- Place the grilles. Supply high (cold air falls), return low or on the opposite side, to sweep the whole room. Avoid blowing cold air directly onto bottles or labels.
- Connect the condensate drain with continuous slope or a pump, same as above.
- Wire to a dedicated circuit per the spec plate, mount the controller/sensor inside the cellar, set 55°F, and commission. Verify supply-air temperature and that the drain stays clear.
How to install a ducted split system
A ducted split is the right call when you need the condenser well away from living space, or outdoors, and you want the quietest possible cellar. The trade-off is that it is not a DIY job.
The fan-coil mounts in or near the cellar and ducts air in; the condensing unit sits remotely; a refrigerant line set connects them. A licensed HVAC technician must braze the line set, pressure-test, pull a proper vacuum, and charge the system to spec. Brazing and refrigerant handling require EPA certification and the right tools — an improper charge or a moisture-contaminated line will destroy the compressor and isn’t covered under warranty. Budget for the contractor as part of the project from the start. Your role is the same prep as any install: sealed room, heat-rejection space, drain, and electrical roughed in before the tech arrives.
Six common installation mistakes
These are the failures we see most often, and every one is avoidable.
- Exhausting into too small a space. A closet or sealed room can’t absorb the heat. The unit overheats and short-cycles. Vent outdoors or into a space 3x the cellar volume.
- Skipping the vapor barrier. Without it, humidity and heat migrate in continuously, the unit runs nonstop, and the coil ices. Vapor barrier first, cooling unit second.
- A flat or back-pitched drain line. Water backs up into the pan and overflows. Maintain continuous downhill slope or use a condensate pump.
- Long, kinked, or uninsulated ductwork. Robs cooling capacity and sweats condensation onto framing. Keep runs short, straight, and insulated.
- Ignoring winter ambient. A condenser in an unheated garage that drops below its rated low-ambient temperature won’t operate correctly. Spec a low-ambient package if needed.
- Undersizing to save money. No install technique compensates for a unit that’s too small. Size for the worst-case heat load, not the average.
If your already-installed unit is struggling, our wine cellar cooling troubleshooting guide covers the most common fixes before you call for service.
Startup, commissioning, and the first week
Once the unit is in, don’t walk away. Set the controller to 55°F and 50–70% relative humidity, then watch the first 24–48 hours. The cellar should pull down to setpoint steadily — not instantly, and not in fits and starts. Check that the condensate drain runs clear and the pan stays dry, that supply air feels cold and the unit isn’t short-cycling, and that no air is leaking around the door or penetrations. A new cellar can take several days to stabilize as the masonry, racking, and walls reach equilibrium, so judge performance over the first week, not the first hour. Log the temperature daily at first; stability is what protects the wine, and a unit that’s holding a steady 55°F with reasonable humidity is doing its job.
Get the install right the first time
Sizing, system type, and installation are one connected decision — get any of them wrong and the other two can’t save you. If you tell us your room dimensions, wall construction, and where the equipment can live, we’ll point you to the exact Wine Guardian unit and install path for your space.
Need help choosing? Use our free Wine Room Plan tool and we’ll size and spec your cooling system for you — start your Wine Room Plan.
