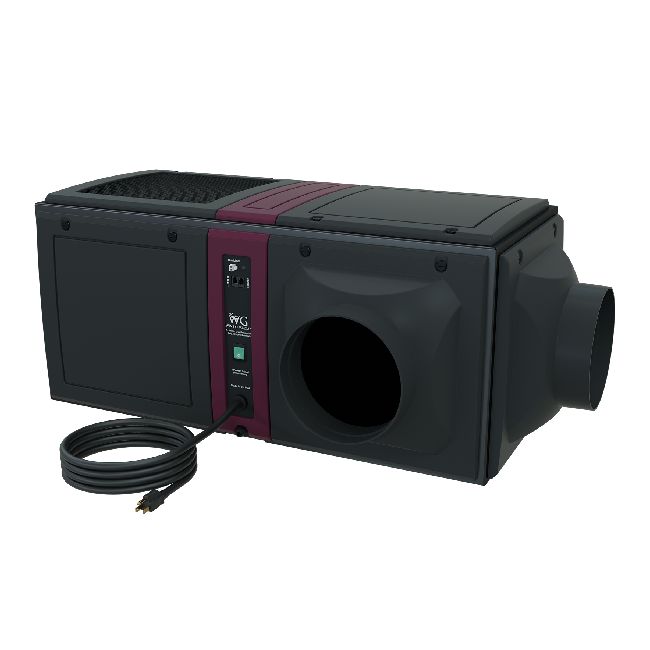

Wine Guardian D025 ducted cooling unit, second view

Wine Guardian D025 ducted wine cellar cooling system

Wine Guardian D025 ducted cooling system installed for a residential wine cellar

Wine Guardian D025 cooling unit installed in wine cellar

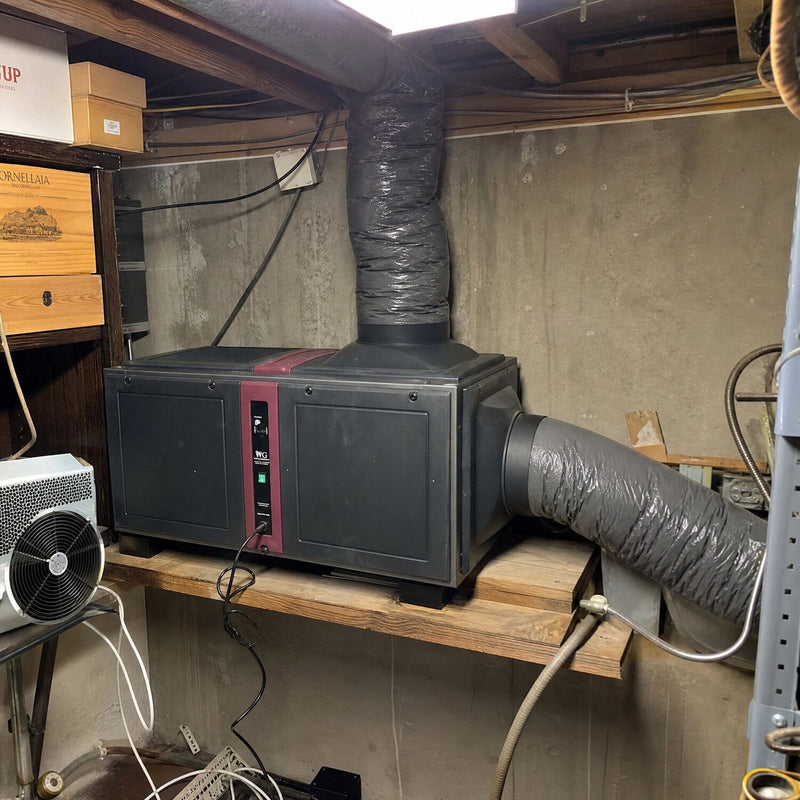

Wine Guardian D025 ducted cooling unit installed in a wine cellar

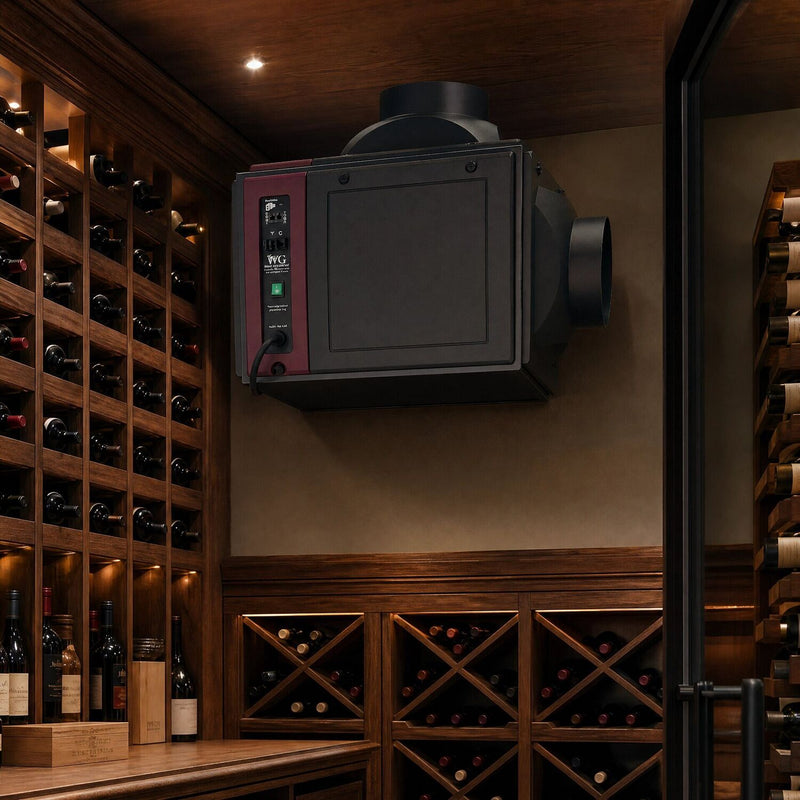

Wine Guardian D025 ducted unit in cellar with racks

Trusted by 39+ collectors★★★★★4.9 · 39 verified reviews

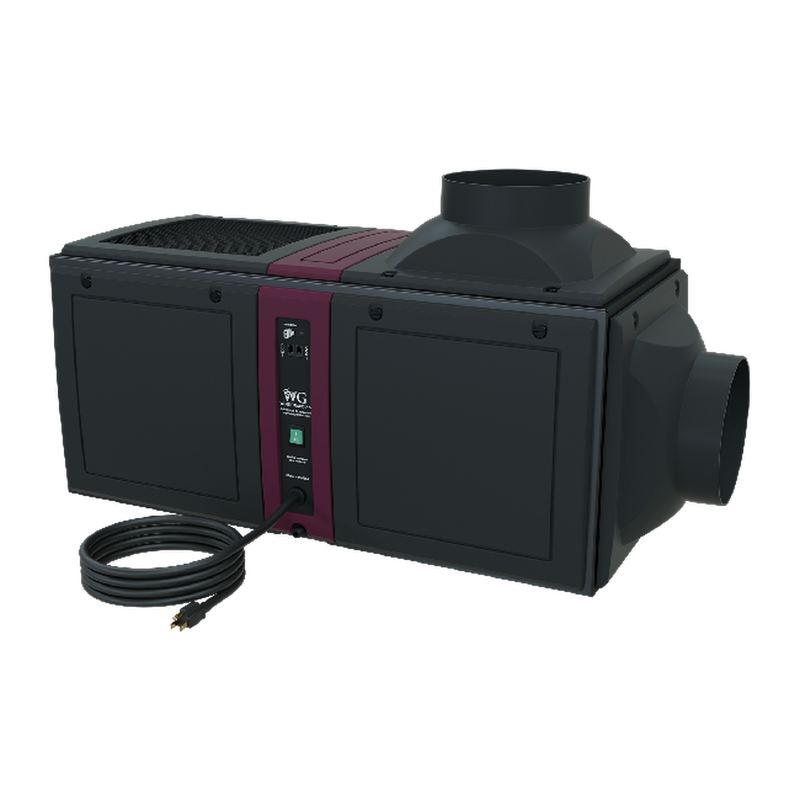

Wine Guardian D025 Ducted Wine Cellar Cooling System (1/4 Ton)

Name: Wine Guardian D025 Ducted Wine Cellar Cooling System (1/4 Ton)
Brand: Wine Guardian
SKU: 99H0250-20
Price: 6483.0 USD
Availability: InStock

$6,483.00 - $9,530.00

$6,483.00

$6,483.00 - $9,530.00

$6,483.00

Cellar size250 to 2,000 cu ft

Cooling4,300 BTU/h

Width33.45 in

Height15.56 in

Available · Ships in 7 to 14 business days

Trusted by 39+ collectors★★★★★4.9 · 39 verified reviews

Quantity

SKU: 99H0250-20

Recommended Add-Ons

Wine Guardian Integrated Cellar Humidifier (D025-Class)Integrated Humidifier D025

$1,442.00

Wine Guardian Combo Duct Kit, 8" (Supply + Return Collars + 25 ft Flex Duct)

$725.00

Wine Guardian Remote Sensor, Temperature & Humidity (Wireless2Base)

$375.00

Wine Guardian Platinum Warranty, 25 Months Parts and LaborTier 1: TTW and 025-Class

$497.00

AI

Free Cellar ConsultationChat with our AI Wine Specialist, any time.Or call our team: (331) 244-8273 · Mon to Fri, 9 to 5 CT

Call

Free Standard DeliveryTo the contiguous United States
25 Months Parts13 months labor · Wine Guardian
30-Day ReturnsUnused, original packaging · fees may apply
Authorized Wine Guardian DealerShips new and sealed

Overview

Cellar cooling sized to the room, not guessed from floor area.

D025 at a glance: maximum capacity 4,300 BTU/h, for cellars of 250 to 2,000 cubic feet (Wine Guardian). Wine Guardian's cellar cooling calculator, or our Free Cellar Plan, confirms the fit for your room.

Ducted Cooling Systems
This base model features a coated evaporator coil engineered for reliable performance across diverse wine storage environments. The ducted system architecture delivers exceptional flexibility, accommodating both residential cellars and commercial facilities with straightforward installation and serviceability. Cooling removes moisture from the air. To add humidity, pair it with the Wine Guardian Integrated Cellar Humidifier. A dependable foundation for maintaining optimal conditions in any wine collection setting.

Standard Features:

1/4 ton to 2-ton capacities (3,300 to 16,200 BTH)
Multi-panel design provides easy access for service
Lightweight, corrosion-resistant, all aluminum outer body
High static pressure fans for extended lengths of ductwork
Multiple supply and return air opening for installation flexibility
Completely self-contained design
Factory tested prior to shipment
Certified to Underwriters Laboratory standards

Options:

Water-Cooled
Electric Heat
Low Ambient
High Ambient
Heating Coil
Humidification

Performance & Capacity

Product Type	ducted self-contained
Installation	ducted self-contained
Cooling Capacity (BTU/h)	4300
Max Cellar Volume (ft³)	250-2000

Dimensions & Electrical

Voltage	115V
Frequency (Hz)	60
Electrical Config	115/1/60

Construction & Warranty

Warranty	Sentinel Series Ducted Warranty (see PDF)
Certifications	Certified to Underwriters Laboratory standards (UL)
Country	USA (Syracuse, NY)

Wine Guardian D025 Ducted Wine Cellar Cooling System (1/4 Ton) - Dimensions

Footprint & Clearances

Check the manual for required clearances and service access before you build.

Height

15.56" (39cm)

Width

33.45" (85cm)

Depth

16.6" (42cm)

Weight

80.0 lb

Manufacturer spec sheets and installation manuals are available on request, plus CAD files where the brand provides them.

Request CAD Files →

What we can send depends on the manufacturer.

STEP 01

Plan the duct run

Confirm the cellar volume, where the unit will sit and how far the supply and return ducts must travel. Duct length affects performance.

STEP 02

Mount and connect

A licensed HVAC technician mounts the unit, runs the ducts to the cellar and connects the drain and power as the manual specifies.

STEP 03

Commission and set

Power on, check airflow and drainage, then set the target temperature. Let the cellar come down to setpoint gradually.

Downloads & Resources

Warranty

Parts	25 months from the original invoice date
Labor	13 months · Wine Guardian approval before work starts
Who Is Covered	Original buyer · normal use and service
Platinum Option	25 months labor · compressor and coils to 61 months (parts)

Full Wine Guardian Warranty Terms →

Care Instructions

Coil Cleaning	Inspect condenser coils annually · clean with soft brush
Drain Line	Must always be connected · inspect quarterly
Filter	Replace per model specifications (check manual)
Refrigerant	Qualified technician only · do not self-service
Installation	Licensed HVAC technician for split and ducted systems

Reviews across all our products

39 collectors can't be wrong.

4.9

out of 5

Based on 39 verified purchases

5★

33

4★

6

3★

0

2★

0

1★

0

Review Highlights

Great service 15 Fast delivery 30 Build quality 18 Quiet operation 8 Easy install 12

Sort

Questions? Call (331) 244-8273 Mon to Fri · 9 AM to 5 PM CT

Designed For The Discerning Collector

Cellar cooling sized to the room, not guessed from floor area.

View Full Specifications → Cooling a custom wine cellar? →

01

Equipment Outside the Cellar

A ducted system sits in a nearby space and moves conditioned air into the cellar through supply and return ducts, so the unit stays out of sight.

02

Ducting Planned to the Room

Duct size and length affect performance, so the duct route is part of sizing. Wine Guardian duct collars and kits are sold separately.

03

Professional Installation

Ducted systems should be fitted by a licensed HVAC technician. We ship the unit; we do not install it.

04

Sized by Cellar Volume

Capacity is rated by room volume in cubic feet, then adjusted for insulation, vapor barrier and glass. Floor area alone is not enough to choose a unit.

05

Free Sizing Help

Send your room dimensions and a specialist recommends a unit in a free cellar plan, returned within 48 hours.

06

Wine Guardian Warranty

25 months on parts and 13 months on labor from the original invoice date, for the original buyer. Labor is covered only when Wine Guardian approves the repair first. Read the full terms.
