Most failed wine cellars don't fail because someone bought the wrong cooling unit. They fail inside the walls. A vapor barrier installed on the wrong side, an under-insulated ceiling, or a door that leaks conditioned air will defeat even a perfectly sized cooling system, and the symptoms (condensation, mold, a unit that runs constantly and still can't hold temperature) usually show up months after the drywall is closed up, when fixing them means tearing the room apart again.
This guide walks through the part of a cellar build-out that you can't see once it's finished: insulation, the vapor barrier, the construction layers, and the door. Get the building envelope right and the cooling unit's job becomes easy. Get it wrong and no amount of cooling capacity will save the room. At Wine Majesty we sell the cooling systems that go into these rooms, so we have a direct interest in your envelope being airtight: a sealed, well-insulated cellar is the single biggest factor in whether your unit performs the way the spec sheet promises.
Why the envelope matters more than the cooling unit
A wine cellar is essentially a walk-in refrigerator built to hold roughly 55Β°F and 50β70% relative humidity year-round. The cooling unit only has to fight whatever heat and moisture leak into that space. Reduce the leakage and you reduce the load. That is the whole game.
Two forces are working against you. The first is heat conduction through the walls, ceiling, and floor, which insulation slows down. The second is moisture: warm, humid air outside the cellar will try to migrate toward the cold interior, and when that water vapor hits a cold surface inside the wall cavity it condenses into liquid. That hidden condensation rots framing, soaks insulation (destroying its R-value), and grows mold. The vapor barrier exists to stop moisture before it ever reaches that cold surface.
Insulation and the vapor barrier are not interchangeable and they are not optional. You need both, installed correctly, on every surface that separates the cellar from a warmer space.
How much insulation does a wine cellar need?
Industry practice for a conditioned wine cellar is meaningfully higher than for ordinary living space, because you're maintaining a much larger temperature difference for the entire life of the room. The widely cited minimums:
| Surface | Minimum R-value | Typical approach |
|---|---|---|
| Walls | R-19 (R-13 absolute minimum) | 2x6 framing with batts, or 2x4 with rigid/closed-cell foam |
| Ceiling | R-30 | Deeper batts or layered foam; ceilings see the most heat gain |
| Floor (slab) | Sealed slab + vapor barrier | Rigid foam if the slab sits over a warm/unconditioned space |
Closed-cell spray foam is popular for cellars because it does two jobs at once: about 3 inches delivers roughly R-19 and forms its own vapor barrier as it cures, eliminating the separate plastic sheeting step. It costs more than batts and rigid board, but in a tight retrofit or an irregular space it's often the cleanest path to an airtight envelope.
If your cellar shares a wall with a hot zone (an attached garage, a furnace room, a south-facing exterior wall, or anything above grade in a warm climate) treat that surface as a priority and insulate it more heavily than the code minimum.
Vapor barrier placement: the rule that trips up almost everyone
It always goes on the warm side
This is the single most important sentence in the entire build-out: the vapor barrier goes on the warm side of the insulation β the side facing away from the cold cellar interior. Because the cellar is the cold side of the assembly almost year-round, the warm side is the outside-facing surface of the framing, before you insulate the cavity.
The logic is straightforward once you picture it: moisture moves from warm/humid toward cold/dry. You want to stop that vapor on the warm side, before it can travel through the insulation and condense against the cold cellar-side surface. Put the barrier on the wrong (interior) side and you've simply moved the condensation point into the wall, trapping moisture exactly where you didn't want it.
Material and sealing
The standard is 6-mil (or heavier, 8-mil) polyethylene plastic sheeting. Wrap all six surfaces β every wall, the ceiling, and the floor β so the cellar is enclosed in a continuous, unbroken envelope. The details are what make it work:
- Overlap every seam by at least 6 inches.
- Seal all seams, staples, and penetrations with sheathing or vapor-barrier tape.
- Seal around electrical boxes, lighting cans, ducting, and the cooling unit's wall penetration. A single unsealed gap undermines the whole barrier.
- Maintain continuity at corners and the wall-to-ceiling and wall-to-floor transitions, where most leaks happen.
The spray foam shortcut
As noted above, closed-cell spray foam is its own vapor barrier once it skims over, so you skip the plastic sheeting on those surfaces. If you mix methods (spray foam on one wall, batts elsewhere) be careful at the transitions so you never end up with two vapor barriers trapping a cavity between them.
A layer-by-layer build-out
Working from the structure inward, a typical insulated cellar wall stacks up like this:
- Frame the walls. Use 2x6 studs if you can spare the room dimension; the deeper cavity makes R-19+ easy. Frame the ceiling to accept R-30.

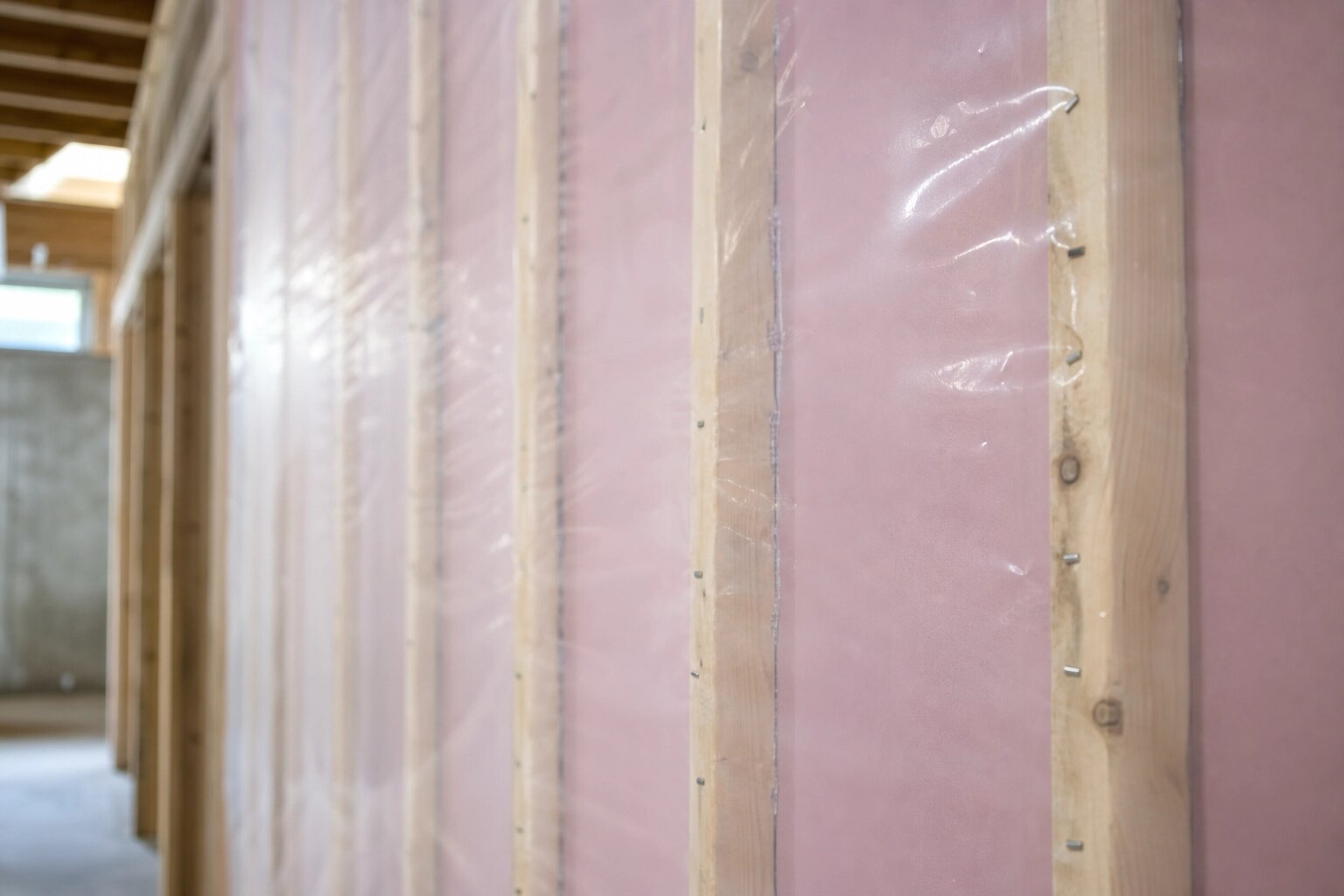

- Install the vapor barrier on the warm side. Staple and tape the 6-mil poly to the exterior face of the framing before insulating (unless you're using closed-cell spray foam, which is applied into the cavity).
- Insulate the cavities. Batts, rigid board, or spray foam to hit your R-values on walls, ceiling, and any floor over a warm space.
- Finish the interior surface with a moisture-tolerant board. Avoid standard paper-faced drywall β the paper feeds mold in a humid room. Use paperless/mold-resistant board (DensArmor-type) or moisture-resistant "purple" board rather than relying on old-style green board, which is less mold-resistant than modern paperless products. Rot-resistant wood paneling (redwood, cedar) is another common cellar finish.
- Seal and finish the floor. A concrete slab needs a vapor barrier and a water-based concrete sealer (confirm sealer compatibility if you'll tile over it). Good floor finishes are tile, slate, marble, stone, or sealed concrete. Never carpet a cellar β it traps moisture and grows mildew in the cool, damp conditions.
The door is part of the envelope β and usually the weak point
You can insulate the room perfectly and still bleed conditioned air through the door. A wine cellar door should be treated as an exterior door, not an interior one:
- Exterior-grade, solid-core construction, at least 1ΒΎ inches thick. A hollow interior door has effectively no R-value.
- Weatherstripping on all four sides plus a bottom sweep or threshold. The seal should compress when the door closes, the same pressure seal you'd expect on an exterior entry door.
- If you want glass, use double- or triple-pane tempered insulated glass with a tight, weatherstripped frame. Glass has a much lower R-value than an insulated door, so a fully glass cellar (or glass door) increases the heat load and frequently calls for a larger-capacity cooling unit to compensate.
Glass walls and doors look spectacular, and they're a legitimate design choice β just budget for the extra cooling capacity up front rather than discovering the shortfall after install.
How your envelope determines cooling unit size
Everything above feeds directly into one number: the cooling load your unit has to handle, measured in BTUs. A small, well-insulated, fully sealed cellar with a solid insulated door presents a modest load. The same size room with glass walls, an unsealed door, or skimped insulation can present a load large enough to push you up an entire model class.
This is why we always tell customers to finalize the envelope before selecting a unit. A through-wall self-contained system like the Wine Guardian D025 is sized for smaller, tight rooms; larger or glass-heavy cellars step up to higher-capacity ducted or split systems in the Wine Guardian lineup. If you haven't run the numbers yet, our complete BTU sizing guide walks through the calculation step by step, and our cellar humidity guide covers the moisture side of the equation.
The relationship is simple: dollars spent on insulation and sealing are partly recovered in a smaller cooling unit, lower running costs, and a system that isn't fighting the room for its entire service life.
Common build-out mistakes to avoid
| Mistake | Why it fails | Do this instead |
|---|---|---|
| Vapor barrier on the cellar (cold) side | Moves the condensation point into the wall; traps moisture and grows mold | Always install on the warm, outside-facing side |
| Skipping insulation on the ceiling | Ceilings see the most heat gain; under-insulating here overloads the unit | Hit R-30 on the ceiling |
| Paper-faced drywall | Paper is a food source for mold in a humid room | Paperless / mold-resistant board or rot-resistant wood |
| Standard interior door | No R-value, no seal β conditioned air leaks out constantly | Exterior-grade, solid-core, fully weatherstripped |
| Carpeted floor | Traps moisture; mildews in cellar conditions | Tile, stone, or sealed concrete |
| Sizing the cooling unit before finishing the envelope | Load assumptions change drastically with glass and air leakage | Lock the envelope, then calculate BTUs |
Build the room around the wine, then the cooling around the room
A wine cellar is a building-science problem before it's a shopping problem. Insulate to at least R-19 on the walls and R-30 on the ceiling, wrap the room in a continuous 6-mil vapor barrier on the warm side, finish with moisture-resistant materials, and hang a real exterior-grade door. Do that, and the cooling unit you choose will hold 55Β°F and 50β70% humidity quietly and efficiently for decades.
