How to Design a Luxury Home Wine Cellar: The Complete Guide (2026)

A home wine cellar is one of the most enduring luxury investments a homeowner can make. Unlike a kitchen renovation that trends in and out of style, a well-designed wine cellar only increases in value — both to your collection and to your home's resale appeal.

But designing a wine cellar well requires more planning than most people expect. Temperature, humidity, lighting, storage, and aesthetics all have to work together. Done right, the result is a space that preserves your wine for decades while becoming one of the most remarkable rooms in your home.

Step 1: Define Your Goals Before You Design Anything

How large is your current collection — and how large do you want it to be?
Planning for a 200-bottle cellar when you intend to collect to 1,000+ bottles is a mistake you'll regret. Design for where you want to be in 10 years, not where you are today.

Is this primarily a storage cellar or a display/entertaining space?
A pure storage cellar prioritizes capacity, darkness, and climate stability. A display cellar or tasting room prioritizes aesthetics, lighting, and flow. Many luxury builds aim for both.

What's your budget?
A basic conditioned wine cellar can be built for $10,000–$15,000. A luxury statement cellar easily runs $50,000–$150,000+. Know your number, then allocate strategically.

Step 2: Choose the Right Location

Below grade (basement): The classic wine cellar location. Naturally cooler and more thermally stable, requiring less work from your cooling system. If you have a basement, this is almost always the right answer.

Interior rooms (above grade): An interior room on the ground floor — away from exterior walls — experiences less thermal variation and can be properly insulated and conditioned.

Under-stair spaces: Increasingly popular in custom home design, making excellent use of otherwise dead space.

Approach carefully: Garage-adjacent spaces experience extreme temperature variation. Shared walls with a garage need exceptional insulation and a more powerful cooling system.

Step 3: Get the Insulation Right — This Is Non-Negotiable

The single most important — and most often underestimated — element of wine cellar construction is insulation. No cooling system can compensate for inadequate insulation.

Industry standard:
- Walls: R-19 minimum (R-30 for exterior-facing walls or warm climates)
- Ceiling: R-30 minimum
- Vapor barrier: Continuous, on the warm side of insulation — moisture migrating through walls causes mold and structural damage

Wine cellar doors should be solid-core, properly gasketed. A standard interior door is thermally inadequate.

Step 4: Select Your Cooling System

Once properly insulated, choose your cooling system based on cubic footage, location, and ambient conditions. Size your unit at calculated cubic footage plus a 15–20% buffer — never at the minimum.

Through-wall units: Self-contained, simpler to install. Best for smaller cellars or retrofits. Examples: Wine Guardian TTW01B, TTW02B and TTW04B, or the Breezaire WKL series.

Split systems: Evaporator inside the cellar, condenser outside. Quieter, more efficient, more design-flexible. Examples: Wine Guardian SS018, CS025 and CS050, or the Breezaire WKSL series.

Ducted systems: Fully hidden, integrated with ductwork. Most discreet option for luxury builds. Examples: Wine Guardian D025 to D200, or the DS025 to DS200 ducted splits.

Target conditions: 55°F temperature, 60–70% relative humidity.

Step 5: Plan Your Storage System

Wall-Mounted Modular Racks

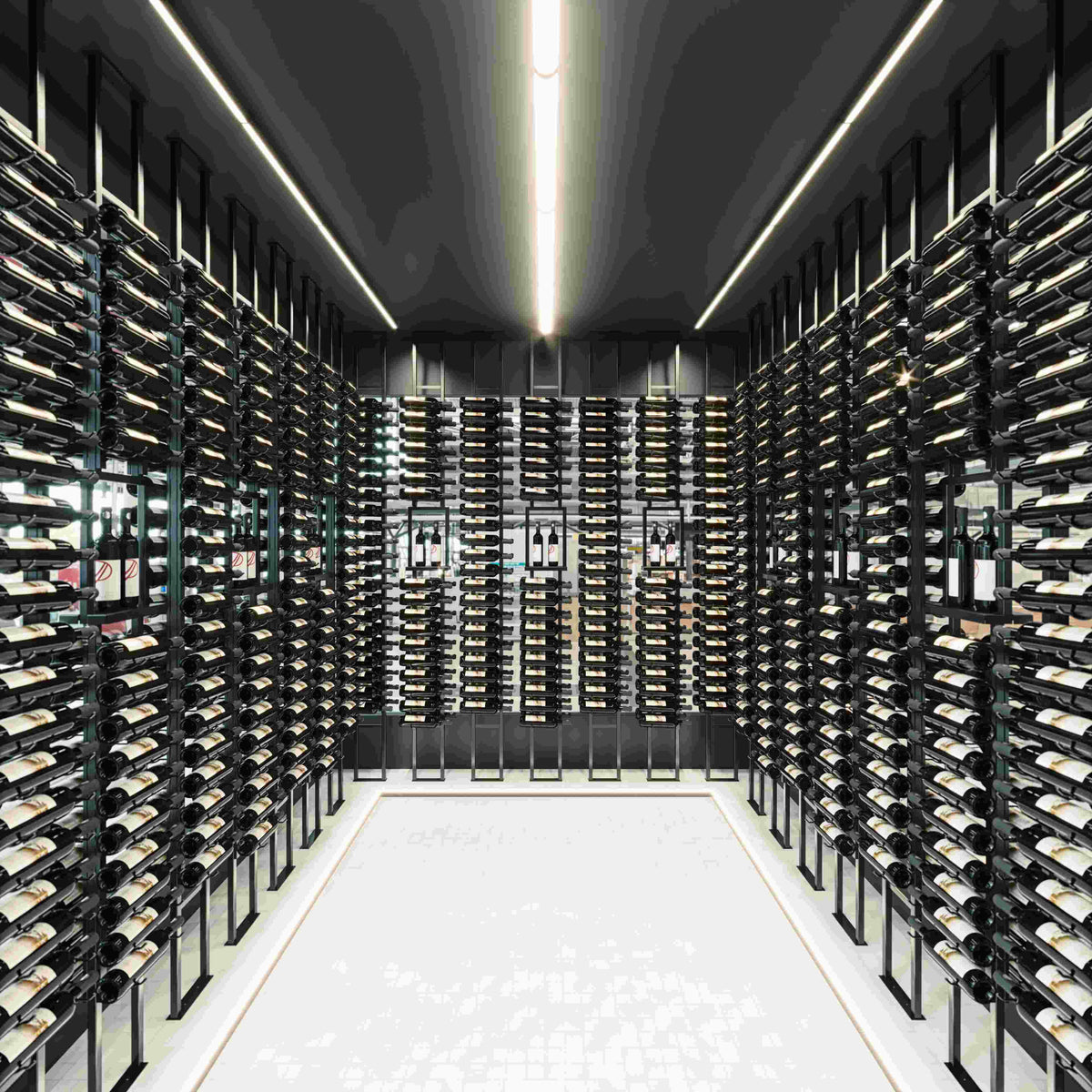

For modern and display-focused builds, wall-mounted modular steel racks — particularly VintageView's W Series — are the design gold standard. Label-forward, modular, and visually striking. A floor-to-ceiling VintageView feature wall is consistently one of the most dramatic design elements in luxury homes.

Traditional Wood Racks

For classic cellar aesthetics — dark redwood or mahogany — wood racks remain the classic choice. Redwood is prized for its natural moisture resistance.

Mixed Approach: Storage + Display

Many well-designed cellars combine high-density storage (traditional cubbies for long-term aging) with display zones (label-forward racks for wines in current rotation). This hybrid approach optimizes both function and aesthetics.

Step 6: Design the Aesthetics

Lighting is the highest-impact design element after the racks themselves. Use warm-tone LEDs (2700–3000K) — they generate minimal heat and no UV light. Consider recessed ceiling spotlights, under-shelf strip lighting, and pendant lighting over a tasting table.

Flooring: Stone (slate, travertine, limestone), brick, or stained concrete. Moisture-tolerant and appropriate for the cellar aesthetic. Avoid carpet.

The Tasting Area: Even a small bistro table and two chairs within the cellar dramatically increases how often the space gets used and enjoyed.

Doors & Glass: A glass-front door or full glass wall turns the cellar into a visual feature visible from the adjacent dining room or kitchen — even when not in use.

Wine Cellar Design: Budget Allocation Guide

Frequently Asked Questions

How much does it cost to build a wine cellar?
A properly built, conditioned home wine cellar starts at $10,000–$15,000 for a modest build and can reach $50,000–$150,000+ for a large luxury installation.

What is the ideal temperature and humidity for a wine cellar?
55°F (13°C) is the classic target, with 60–70% humidity to keep corks properly sealed without promoting mold.

How long do wines last in a properly conditioned cellar?
Fine wines can age 20–50+ years. Without proper conditions, the same wines can degrade in 5–10 years.

What is the best wine cellar cooling system for a home cellar?
The right system is the one sized for your cellar's volume, insulation and the space where its heat goes. We carry Wine Guardian and Breezaire and can size either for your room.
