A wine cellar cooling system is a purpose-built climate-control unit that holds a sealed wine room at the temperature and humidity wine needs to age β typically 55Β°F and 50β70% relative humidity. Standard HVAC won't do this job. It pulls too much moisture out of the air, cycles too aggressively, and isn't designed for the year-round, low-temperature setpoint a cellar requires.
If you're building a wine room β or planning to put bottles into a closet, basement nook, or dedicated cellar β choosing the right cooling system is the single most consequential decision you'll make. The wrong architecture means dried-out corks, oxidized bottles, condensation on walls, or a unit that runs nonstop and dies within a few years. The right one disappears into the build and keeps your collection drinking the way the winemaker intended.
At Wine Majesty we specify Wine Guardian and other cellar-grade cooling for builds ranging from 100-bottle closets to 4,000-bottle commercial rooms. This guide walks through the four system architectures, how to match one to your room, and what to plan for during installation.

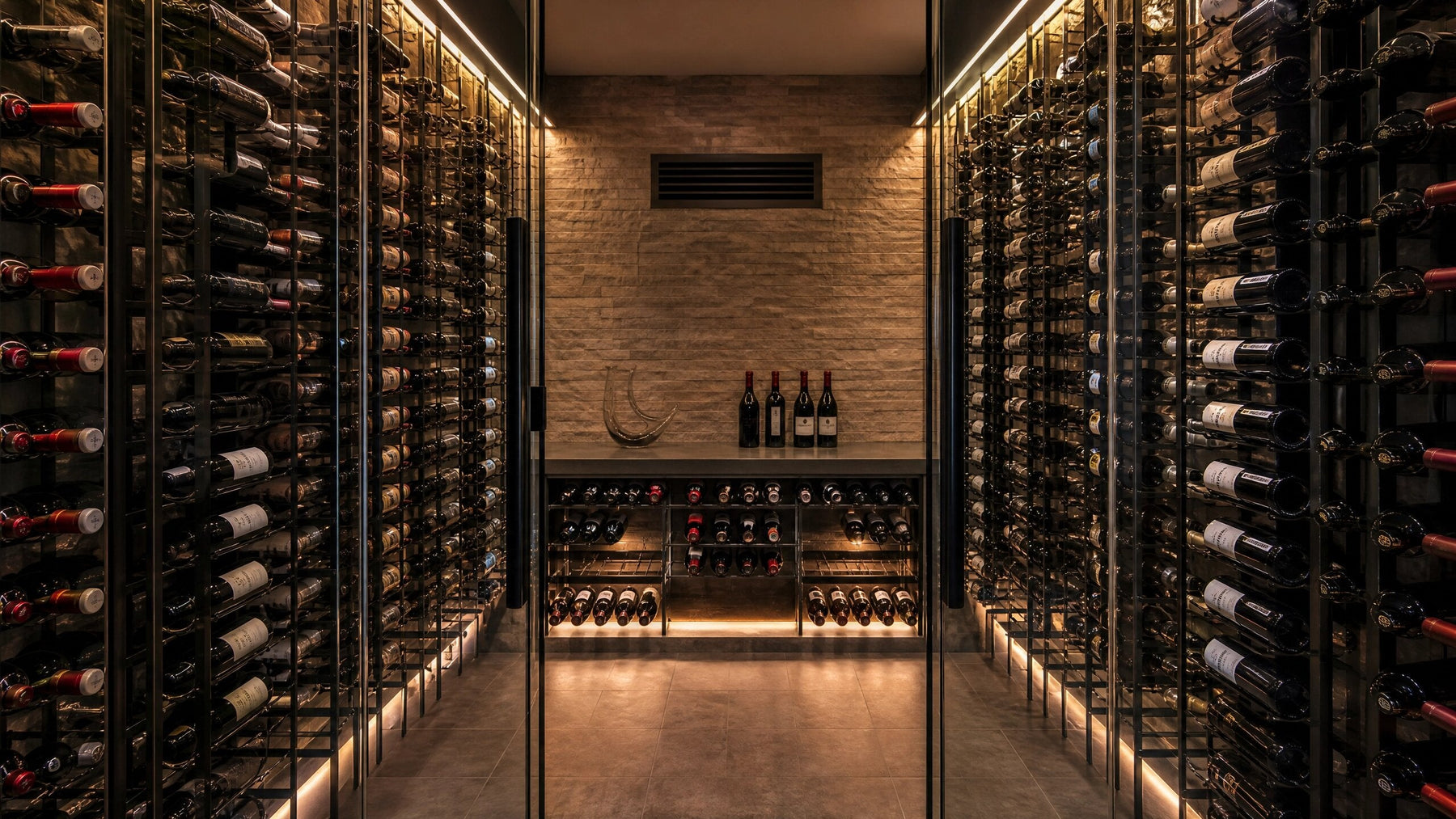

Suggested: Cutaway-style render or photo of a finished wine cellar showing the cooling unit mounted through the wall, with bottles racked floor to ceiling.
Alt text: Modern home wine cellar with through-the-wall cooling unit and floor-to-ceiling wine racks at 55Β°F
Manus prompt: photorealistic interior of a 300-bottle home wine cellar, glass door, dark-stained wood VintageView-style racks floor-to-ceiling on side walls, small rectangular through-the-wall cooling unit mounted high on back wall with discrete grille, warm ambient lighting from above-rack LED strip, 16:9 aspect, 1920x1080, no people, no text, no logos.
What a wine cellar cooling system actually does
A cellar cooling unit is a small, single-zone refrigeration system tuned for two outputs that ordinary air conditioning ignores:
- Setpoint hold near 55Β°F. The widely accepted ideal for long-term wine storage is 55Β°F, with most experts citing an acceptable range of 50β59Β°F. The number matters less than the stability β temperature swings let bottles expand and contract, dislodging corks and letting oxygen in.
- Humidity in the 50β70% range. Below 50%, corks dry, shrink, and break their seal. Above 75%, mold blooms on labels and corks. 60% is the figure most cellar specialists target.
A standard mini-split or central AC system can technically cool a room to 55Β°F, but it will strip humidity down to 30β40% in the process, and its compressor will short-cycle trying to hold a setpoint that low. That's the gap a cellar cooling system fills β tighter control, lower setpoint, and humidity management built in.
The four cooling system architectures
Every cellar cooling unit on the market fits into one of four architectures. Pick the wrong architecture and no amount of BTU sizing will save the build β it's a structural decision.
1. Self-contained through-the-wall
The whole unit β evaporator, fans, compressor, condenser, controls β lives in a single rectangular box that mounts through a wall in the cellar. Cold side blows into the cellar; hot side vents into an adjacent non-conditioned space (garage, mechanical room, basement).
Best for: Cellars roughly 50β1,500 cubic feet that share a wall with a non-conditioned room of at least 1,000 cubic feet for heat rejection. These are the workhorse choice for closet conversions, basement build-outs, and most residential wine rooms under 2,500 bottles.
Pros: Lowest install cost, no refrigerant lines, no licensed HVAC contractor required, simplest service path.
Cons: Audible β you'll hear the compressor cycle. The warm-side room gets warmer; that space has to be able to absorb the rejected heat.
2. Ducted self-contained
The whole unit lives outside the cellar β usually in a mechanical room, attic, or crawlspace β and connects to the cellar through flexible insulated ductwork. Cold air gets pushed in through one duct; warm cellar air returns through another.
Best for: Cellars where you don't want a visible grille on the wall, where the cellar has no shared wall with a non-conditioned space, or where the owner wants the compressor noise as far from the bottles as possible. Common in finished basements, custom homes, and architect-led builds.
Pros: Silent in the cellar β only duct rush is audible. Clean architectural finish β no equipment box on the wall. Easier service because the unit sits in a utility space.
Cons: Higher install cost. Requires duct runs, return air path, and condensate drainage. Duct length is limited β long runs lose capacity.
3. Ducted split
The system is split in two: a fan coil (evaporator) inside the cellar or adjacent space, and a condenser unit somewhere else β outdoors, in an attic, or in a remote utility room. The two halves are joined by insulated copper refrigerant lines run by a licensed HVAC tech.
Best for: Larger cellars (1,500β7,000+ cubic feet), multi-zone cellars, commercial wine rooms, or any build where the condenser needs to be far from the cellar β for noise, for heat rejection, or because there's no available non-conditioned space to vent into.
Pros: Longest refrigerant line runs of any architecture. Scales to the largest cellars. Condenser can sit outdoors. Quietest in-cellar experience.
Cons: Highest install cost. Requires licensed HVAC work, refrigerant charging, and electrical for the outdoor condenser. Most service-intensive when something goes wrong.
4. Ductless split
Similar split architecture, but the evaporator mounts directly on the cellar wall or ceiling like a mini-split head β no ductwork. Condenser still lives remotely.
Best for: Retrofits where running ducts isn't feasible, small-to-medium cellars where you want the condenser outside the cellar but don't need a full ducted build.
Pros: No ductwork β faster, cheaper install than a ducted split. Condenser can be outdoors.
Cons: Visible evaporator head inside the cellar. Air pattern is less even than a ducted system β bottles closer to the head run cooler.
Suggested: Side-by-side diagram of the four architectures.
Alt text: Diagram comparing the four wine cellar cooling system types β self-contained through-the-wall, ducted self-contained, ducted split, ductless split
Manus prompt: clean technical diagram, 4 panels in a 2x2 grid, each showing a cross-section of a wine cellar with a different cooling architecture β (1) through-the-wall box, (2) ducted unit in mechanical room with duct runs, (3) split with outdoor condenser and indoor fan coil + ducts, (4) ductless mini-split style head. Minimalist line-art style, dark navy and gold accents on white background, labeled clearly, 1600x1200, no photo realism, no logos.
How to size a wine cellar cooling unit
Sizing is a BTU/h calculation. Get it wrong and the unit either runs constantly (undersized β fails early, can't hold setpoint) or short-cycles (oversized β humidity drops, compressor wears out, energy waste).
The formula has three inputs:
- Cellar volume in cubic feet β length Γ width Γ ceiling height.
- Insulation and vapor barrier quality β R-19+ walls with a 6-mil vapor barrier on the warm side is the baseline. Anything less and you need to upsize.
- Glass exposure and ambient conditions β a glass door faces a much larger heat load than a solid wood door. A cellar bordered by 95Β°F garage space loads heavier than one in a 70Β°F basement.
Here is the Wine Guardian product map against typical residential cellar sizes:
| Cellar volume | Wine Guardian model (60Hz) | Max capacity | Architecture options |
|---|---|---|---|
| Up to ~1,000 cu ft | D025 or DS025 split | 3,300β3,400 BTU/h | Ducted self-contained, ducted split |
| 650β3,000 cu ft | D050 or DS050 split | 5,535β6,320 BTU/h | Ducted self-contained, ducted split |
| 850β4,500 cu ft | D088 or DS088 split | 8,640β10,763 BTU/h | Ducted self-contained, ducted split |
| 1,500β7,000 cu ft | D200 or DS200 split | 14,900 BTU/h | Ducted self-contained, ducted split |
For ductless through-the-wall builds at the entry level, the Wine Guardian SS018 ductless split covers smaller spaces with a compact wall-mounted head.
A few sizing pitfalls to avoid:
- Don't size by bottle count. Two cellars with 500 bottles each can need very different BTU outputs depending on rack density, ceiling height, and ambient temperature.
- Don't oversize "just to be safe." An oversized compressor short-cycles, which drives humidity down below 50% and shortens cork life.
- Glass doors count as a heat load. A full-glass entry door can add 10β20% to your required capacity.
- Door seals matter. An unsealed door turns any cooling system into a partial-load HVAC unit fighting the rest of the house.
If you want a sanity check on your numbers, read our detailed Wine Guardian sizing guide β it walks through the BTU math for cellars from 200 to 4,500 cubic feet.
What installation actually involves
Installation difficulty steps up sharply as you move through the architectures. Here's what to plan for at each level.
Self-contained through-the-wall
A handy homeowner with a stud finder, reciprocating saw, and a helper can install one of these in a long afternoon. You frame a rough opening through the cellar wall to manufacturer spec, slide the unit through, secure it, run a dedicated 115V circuit, and plumb a condensate drain. No refrigerant work. No HVAC contractor needed.
Critical detail: the warm-side room must be at least 1,000 cubic feet, ventilated, and ideally not climate-controlled. The unit dumps heat into that space β it can warm a small adjacent room by several degrees in summer.
Ducted self-contained
This is where you start needing a contractor. The unit lives in a mechanical room or attic; ducts (supply and return) run through wall or ceiling cavities into the cellar. You'll need:
- A platform or hanging bracket for the unit rated for its weight (typically 80β200 lbs).
- Insulated flexible duct, sized to the manufacturer's static pressure spec.
- A condensate drain run to an existing drain line.
- Dedicated 115V or 208/230V electrical depending on capacity.
- Adequate ventilation for the equipment space β the unit is rejecting cellar heat into that room.
Ducted and ductless splits
Always a licensed HVAC contractor. Refrigerant lines have to be brazed, evacuated, and charged correctly β a leak ruins the unit. You'll also need:
- An outdoor pad or wall bracket for the condenser, with clearance per manufacturer spec.
- A line set (insulated copper refrigerant pair) routed from condenser to evaporator, ideally under 50 ft.
- Communication wiring between the two halves.
- Dedicated 208/230V electrical at the outdoor unit.
- Condensate management at the indoor fan coil.
For deeper detail by architecture, see our Wine Guardian installation guide.
Suggested: Photo or render of a Wine Guardian unit installed in a mechanical room with ductwork running into the cellar.
Alt text: Wine Guardian ducted self-contained cooling unit mounted in a mechanical room with insulated supply and return ducts feeding the wine cellar
Manus prompt: clean utility-room interior photograph, gray walls, Wine Guardian-style rectangular ducted cooling unit hanging from ceiling bracket, insulated flexible silver ducts running to an opening in the wall, electrical conduit, condensate PVC line, no people, no text, no logos, soft daylight, 16:9, 1920x1080.
Common mistakes that kill cellar cooling systems early
A few patterns we see repeatedly in calls from collectors whose first cooling unit failed within five years:
- Skipping the vapor barrier. Without a 6-mil polyethylene barrier on the warm side of the wall, moisture migrates into the cellar, the unit fights it, and the compressor wears out. This is the single most common build-out failure.
- Using a regular AC unit. A standard mini-split can't hold 55Β°F reliably, kills humidity, and isn't rated for continuous low-temperature operation.
- Inadequate warm-side venting. A through-the-wall unit ducted into a closet runs hotter and hotter until the unit overheats and shuts down.
- Ignoring the glass door heat load. Designers often spec a beautiful glass entry, then size cooling for the cellar volume without adding the glass heat gain.
- Choosing on price. Cellar cooling is the one place in a build where buying the lowest-priced unit costs more in the long run β both in early failure and in damaged wine.
If you're worried about any of these, read our companion piece on wine cellar humidity β many of these failure modes show up first as humidity drift before the temperature setpoint slips.
Which architecture should you pick
A quick decision tree to start with:
- Closet or small basement cellar, under 500 bottles, sharing a wall with a garage or utility room? Self-contained through-the-wall. Lowest cost, fastest install, most service-friendly.
- Custom-designed cellar with a finished ceiling, architect involved, no visible equipment desired? Ducted self-contained or ducted split.
- Cellar above 1,500 cu ft, or any cellar with no adjacent non-conditioned space? Ducted split. The condenser goes outdoors or to a remote utility space.
- Retrofit where ductwork is impossible but a through-the-wall vent isn't an option either? Ductless split.
If you're building from scratch, the architecture decision should happen before framing β rough openings, duct chases, and refrigerant line paths all need to be planned in. We see too many builds where the cellar is finished and then the cooling system has to be retrofitted with a worse architecture than it deserved.
Get a sized recommendation for your room
Cellar volume, insulation, glass exposure, and warm-side conditions all change the answer. If you'd like Wine Majesty to spec a system β architecture, model, and a full BTU calculation for your specific room β submit a free plan request and we'll come back with a written recommendation within two business days.
Get your free Wine Cellar plan Β»
You can also browse our full Wine Guardian cooling system collection if you already know which architecture and capacity you need.
