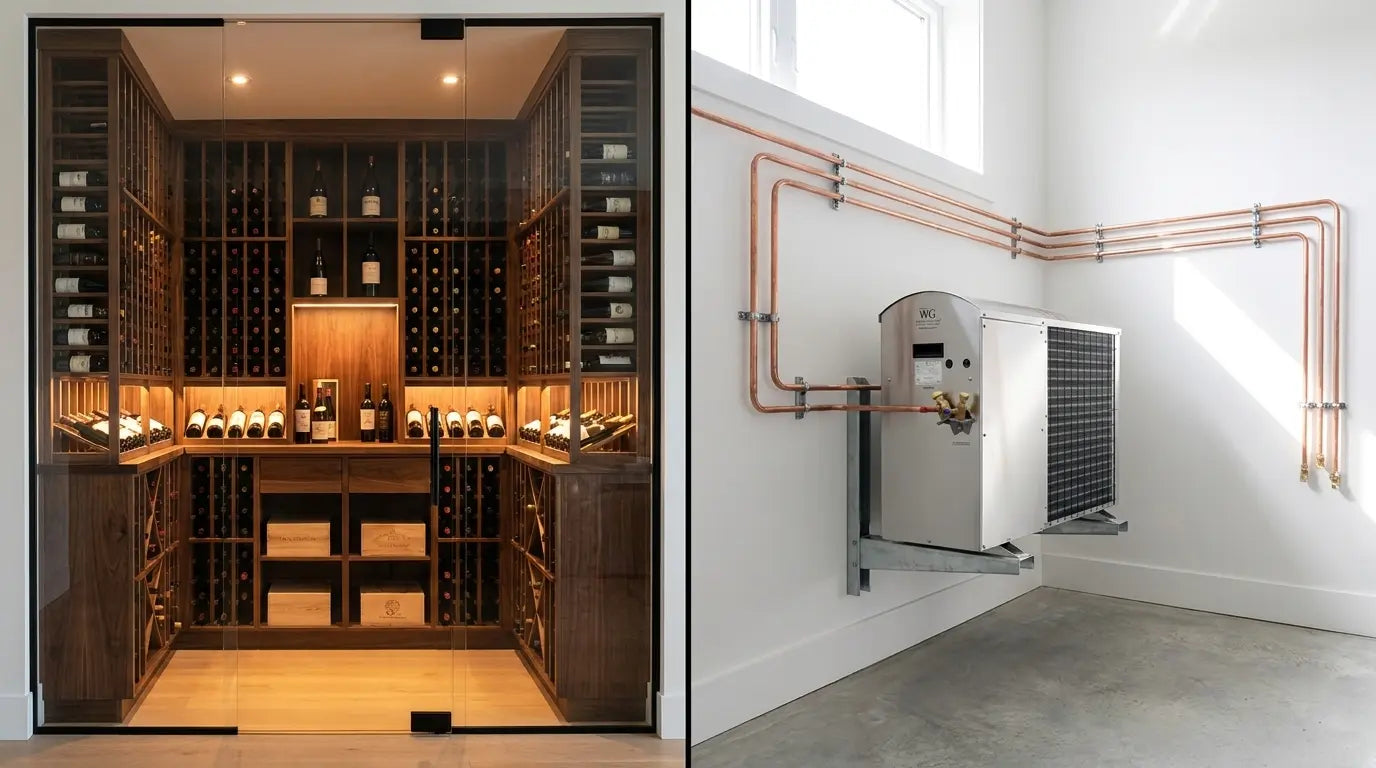

Ducted vs Split Wine Cellar Cooling: Which System Is Right for Your Wine Room? (2026)

You've decided on a real wine cellar. The room is framed, you have a working temperature target (55°F, 50–70% RH), and now there's one decision standing between you and a working cellar: what kind of cooling system goes in it.

If you've spent any time on manufacturer sites or competing retailer blogs, you've probably noticed the terminology is a mess. Self-contained, through-the-wall, ductless split, ducted split, ducted self-contained — they describe overlapping things in slightly different ways, and the wrong choice can mean a louder cellar, a higher install bill, or a system that simply can't keep up with the room.

This guide cuts through the noise. We'll explain what ducted and split actually mean, where they overlap, where they don't, and which Wine Guardian configuration fits which kind of cellar. By the end you'll know whether your project calls for a self-contained ducted unit like the D050 or D088, a ductless split like the SS018, or a fully split system like the DS050 or DS088 — and roughly what to budget for install.

We sell all of these. We also install them in real homes for real collectors every week — so we're answering the questions we actually get asked, not the abstract ones.

The terminology, sorted out

Before we compare systems, we have to fix the vocabulary. Two questions matter:

1. Where do the mechanical parts live?

• Self-contained: Compressor, condenser, and evaporator all sit in one cabinet. The unit lives in or next to the cellar.
• Split: The condenser (the loud, hot part) lives somewhere else — a mechanical room, a garage, or outside the home. The evaporator (the cold part) stays near the cellar. The two halves connect via refrigerant lines.

2. How does cold air get into the cellar?

• Ducted: Air moves through ductwork. You see vents in the cellar, not the unit.
• Ductless: The evaporator coil discharges air directly into the cellar. You see the indoor unit.

Once you separate those two questions, the four real configurations make sense:

The trade-offs are real, and they show up in three places: noise, install cost, and how the finished room looks.

How they actually differ in a finished home

Noise inside the cellar

This is usually the deciding factor for serious cellars, especially the glass-front ones designed to be looked at from a living room or wine bar.

• Self-contained, through-the-wall: Loudest. Compressor is feet from your bottles. Fine for a basement utility cellar; less fine for a display cellar off the dining room.
• Self-contained ducted (D-series): Quieter inside the cellar because the unit is somewhere else and you only hear airflow at the vents. The mechanical room or closet hosting the unit will be noisy.
• Ductless split (SS018): The evaporator fan is in the cellar, so there's some airflow noise — but no compressor hum. Substantially quieter than self-contained.
• Ducted split (DS-series): Quietest. The condenser is remote, the evaporator is in a mech room, and only conditioned air comes through the vents. This is what you want for a cellar adjacent to a living space.

What you actually see in the room

• Self-contained through-wall: a vent grille that hides a roughly fridge-sized cabinet in the wall.
• Ducted (either kind): supply and return vents only. No equipment visible.
• Ductless split: a wall-mounted indoor evaporator unit, roughly the size of a residential mini-split head. Visible.

If you've spent real money on custom cabinetry, lighting, and a glass entry, the ductless split's visible head is the most common regret. Either go ducted or accept that you'll see hardware.

Install scope and cost

A rough hierarchy, cheapest to most expensive in installed cost:

1. Self-contained through-the-wall (DIY-friendly for some homeowners)
2. Self-contained ducted
3. Ductless split
4. Ducted split

Splits require a licensed HVAC tech to braze refrigerant lines, evacuate the system, and charge it. Self-contained units arrive pre-charged. That alone is usually a $1,500–$4,000 swing in labor depending on your market.

Choosing by room type

In practice, almost every cellar we spec falls into one of four buckets. Match your project to a bucket and you've made 80% of the decision.

Closet conversion or small basement cellar (under 500 cu. ft.)

You're cooling roughly 200–500 bottles in a small, well-insulated room. Noise is usually tolerable because the cellar isn't adjacent to a quiet space.

Best fit: Self-contained through-the-wall, or D025 if you have a closet next door to vent into. Ductless split (SS018) is overkill here unless the room sits next to a bedroom or office and noise matters.

Mid-sized residential cellar (500–1,500 cu. ft., glass front)

This is the "showcase cellar off the dining room" — 500 to 1,500 bottles, real custom millwork, glass door, often visible from a living space. Noise is the #1 concern.

Best fit: Self-contained ducted (the D050 at 6,320 BTU/h covers up to ~3,000 cu. ft.) if you have a utility space next door, or a ducted split (DS050) if you don't want any compressor running near the cellar.

If the cellar is glass-fronted and sits off the kitchen or great room, default to the DS-series. You'll never regret the silence.

Large residential cellar (1,500–6,000 cu. ft.)

You're storing 1,500–4,000 bottles in a finished basement cellar with stone, brick, or wood interior. Solar load is usually low; glass area may be moderate.

Best fit: D088 (8,640 BTU/h, up to 6,000 cu. ft.) for self-contained ducted, or DS088 paired with its matching condensing unit for split. At this size the split is usually worth the install premium because the heat rejection from a 1-ton unit is real, and you don't want it dumping into a mechanical room next to the cellar.

Glass-walled or "feature" wine room

These are the rooms designed to be seen — full glass walls, often a wine cube in the middle of a living area or hallway. They are punishing on cooling equipment because glass is a terrible insulator and solar/ambient heat gain is high.

Best fit: Almost always a ducted split. Heat load calculations frequently push these rooms to a unit one full size larger than the cubic-foot rule of thumb would suggest. Don't size off cubic feet alone — a feature room with 80 sq. ft. of glass can require 2–3× the BTU/h of a fully insulated room of the same volume.

For these rooms, get a real load calculation done. Wine Guardian publishes one; we'll run it for you for free if you submit a Wine Room Plan request.

What about ducted self-contained vs. ducted split?

This is the close call most buyers struggle with, because both look the same in the finished room (just vents) and both are quiet relative to a through-the-wall unit.

The honest answer:

• Ducted self-contained wins on price and install simplicity. One unit, pre-charged, plug-and-play for any HVAC contractor.
• Ducted split wins on flexibility and silence. The condenser can go outside or 25+ feet away. Nothing hot runs inside the conditioned envelope of the home.

Pick ducted self-contained (D-series) if:

• You have a dedicated mechanical room, garage, or unconditioned closet within ~10 feet of the cellar where the heat can dump.
• Install budget is tighter.
• Your cellar is below ~3,000 cu. ft.

Pick ducted split (DS-series) if:

• You don't have a great place to dump the heat indoors.
• The cellar is near living/sleeping space.
• You're in a hot climate where heat rejection inside the home is a real cooling-load problem in summer.
• Your cellar exceeds ~3,000 cu. ft. or has significant glass.

Don't size off rules of thumb — run the numbers

Cubic feet alone doesn't size a wine cellar cooling unit. The real BTU/h load depends on:

• Cellar volume (cubic feet)
• Wall, ceiling, and floor R-values (most cellars need R-19 walls minimum, R-30 ceiling, and a continuous vapor barrier)
• Glass area (glass loses heat 10–20× faster than insulated wall, and lets solar load in)
• Door type and seal
• Ambient temperature where the unit dumps heat (a garage that hits 100°F in July is very different from a 70°F basement mech room)
• Lighting load (LED is negligible; halogen is not)
• Number of people accessing the cellar daily

A 1,000 cu. ft. cellar with R-19 walls and a single insulated door might run fine on a D050 (6,320 BTU/h). The same 1,000 cu. ft. as a glass cube in a sunny living room might need a D088 (8,640 BTU/h) or larger. Don't guess. Either use Wine Guardian's published sizing tool, or have us run the load for your specific room.

We've covered the full sizing methodology in detail in our BTU sizing guide — read that next if you haven't already, and pair it with our wine cellar insulation and vapor barrier guide before you finalize the rough-in.

Common mistakes that wreck the install

After watching this go wrong a few hundred times across customers' projects, a short list of what to avoid:

1. Buying ductless split for a glass-front feature cellar. The indoor head is visible and the cellar isn't quiet enough to justify the cost. Go ducted split instead.
2. Putting a self-contained unit's heat dump into a sealed closet. The unit will short-cycle and fail early. The exhaust side needs at least 1,000 CFM of ventilation or a vent to outdoors.
3. Skipping the vapor barrier. Moisture migration through walls will rust out an evaporator coil in 3–5 years, regardless of which system you buy.
4. Undersizing for the glass. Default to one size up if the cellar has a glass door wider than 30" or any glass wall.
5. DIYing a split system. Refrigerant work requires EPA 608 certification. The factory warranty is void on a self-installed split.

So which one should you buy?

If you want a single decision tree:

• Small cellar, tight budget, utility space available → D025 or D050
• Mid-sized glass-front cellar, visible from living space → DS050
• Large cellar, plenty of mechanical room → D088
• Large cellar, no good heat-dump location, or hot climate → DS088
• Feature glass cube → DS088 or larger, sized by load calc

The right call almost always trades a few thousand dollars of install premium for a permanently quieter, longer-lived system. On a $5,000–$30,000 cellar build, that math usually favors the split.

Need help sizing your specific room?

We'll run a free heat load calculation for your cellar and recommend the right Wine Guardian unit (and rack and door spec, if you need it). Submit your room dimensions, insulation values, and glass area via our Wine Room Plan form and we'll come back with a written sizing and a price. No salesperson follow-up unless you ask for it.
