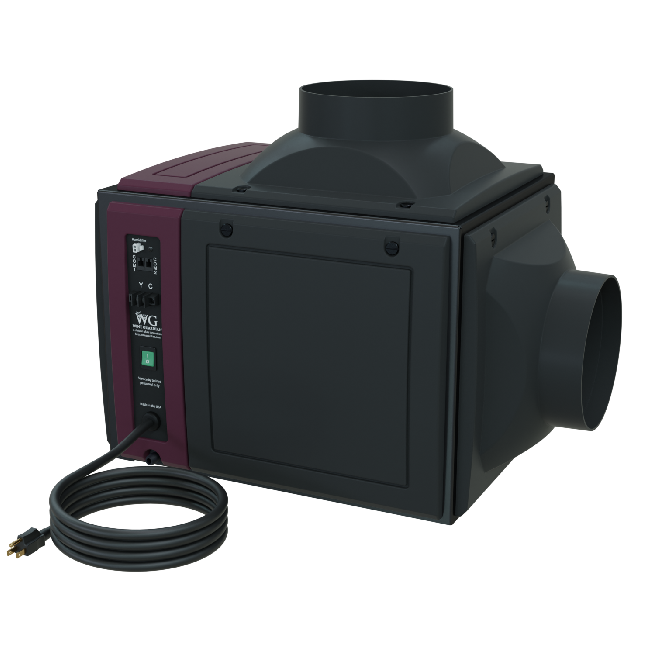

Wine Guardian ducted split fan coil — indoor section only

Wine GuardianSKU: 99H0340-20

Wine Guardian DS025 Split Wine Cellar Cooling System — Fan Coil

Name: Wine Guardian DS025 Split Wine Cellar Cooling System — Fan Coil
Brand: Wine Guardian
SKU: 99H0340-20
Price: 3548.0 USD
Availability: InStock

$3,548.00 - $4,963.00

$3,548.00

$3,548.00 - $4,963.00

$3,548.00

⚑ Price Match Guarantee — found it lower? We'll match it.

In Stock — Ships in 7–14 business days

Questions? (331) 244-8273

Complete Your System

Requires this matching condensing unit:Wine Guardian DS025 Split Wine Cellar Cooling System — Condensing Unit+ $4,615.00

Quantity

Recommended Add-Ons

Wine Guardian Standalone Cellar Humidifier — Wall Mount (WG-Powered)

$1,784.00

Wine Guardian Combo Duct Kit — 8" (Supply + Return Collars + 25 ft Flex Duct)

$681.00

Wine Guardian Remote Sensor — Temperature & Humidity (Wireless2Base)

$359.00

Wine Guardian Platinum Extended Warranty — 2 Years Parts & LaborTier 1 — TTW & 025-Class

$460.00

4.9 · 39 verified reviews

“She was honest about what I needed and didn’t try to oversell.”Louis C. · Verified Buyer

“Build quality feels solid and premium. Would buy again.”Stephanie C. · Verified Buyer

or

Request a Quote · Trade Pricing

Free Standard DeliveryDelivered to your door, 5–9 business days
Full Manufacturer WarrantyHonored direct via authorized dealer
30-Day ReturnsFull refund, we arrange pickup
Secure Checkout256-bit SSL · PCI DSS Level 1

WM

Free Cellar ConsultationSpeak with our wine storage specialistMon–Fri · 9 AM–5 PM EST

Call

Authorized Wine Guardian Dealer. Every unit ships new, sealed, and covered by the full manufacturer warranty.

Free Standard DeliveryFree to contiguous US · door delivery

Authorized DealerFull manufacturer warranty honored

Price-Match GuaranteeWe'll match any MAP-compliant price

Real Humans, Real SupportWine specialists Mon–Fri, 9–5 EST

Overview

A refrigerator the way a sommelier would build one.

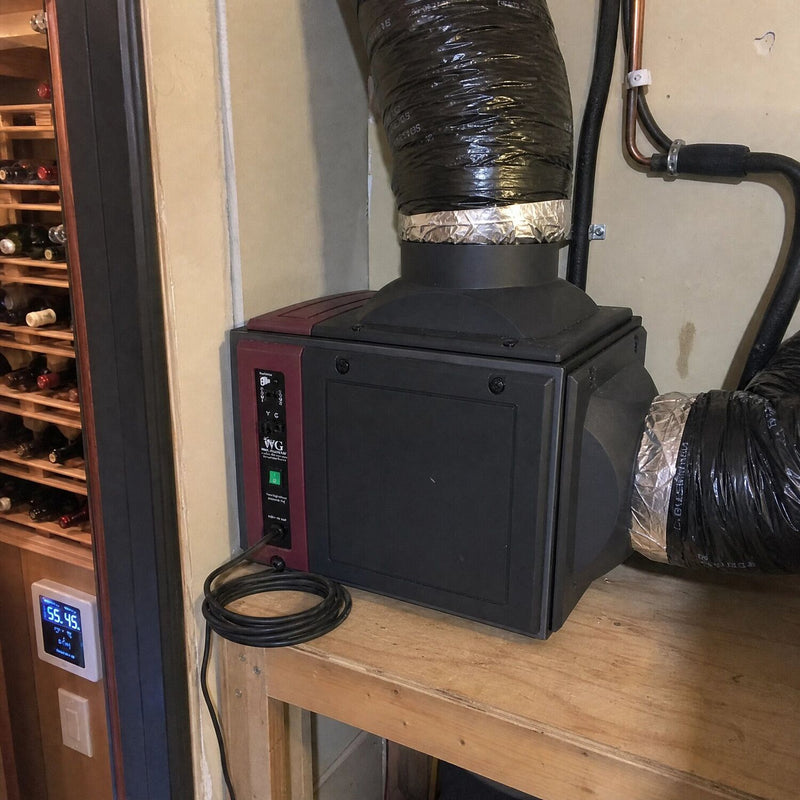

Important: This listing is for the fan coil (indoor section) only. A matching Wine Guardian DS025 condensing unit is required for a complete system — sold separately. Get the complete DS025 system here.

Capacity: 3,400 BTU/H

Multiple supply air openings for installation flexibility (5 sides, including bottom option)
High static pressure fans for extended lengths of ductwork
Commercial-grade, all-aluminum construction for long-term durability
Remote user interface for temperature control and humidity readout
Operates in ambient temperatures between 0° - 122°F (-18° - 50°C) with standard low ambient protection on DS025 & WGS40

Features

The DS025 represents a sophisticated split-system solution engineered for wine storage applications requiring compact installation flexibility. This base model features a coated evaporator coil and delivers 3,400 BTU/h capacity, making it well-suited for modest wine cellars where space constraints demand efficient equipment placement. The system's modular design enables wall, balcony, shelf, or ground-level mounting, while ergonomic handles facilitate straightforward installation by qualified contractors. Ideal for small residential and commercial wine preservation, the DS025 accommodates various configurations—available with integrated heating, humidity control, or serving-temperature operation spanning 42°F to 64°F. The condensing unit incorporates low-ambient technology, functioning reliably in conditions as low as 20°F, ensuring year-round performance across diverse climates and installation environments.

Performance & Capacity

Product Type	ducted split system
Installation	ducted split (fan coil + condensing unit)
Cooling Capacity (BTU/h)	1000-3485
Max Cellar Volume (ft³)	250-2000

Construction

Cabinet Finish	304 Stainless Steel, brushed
Door Material	Triple-pane Low-E, argon-filled
UV Filtration	< 2% transmission
Shelving	Ebony beechwood · 7 shelves
Interior Lighting	LED, dimmable
Lock	Factory-installed, 2 keys

Dimensions & Electrical

Voltage	115V (evap) / 208-230V (condenser)
Frequency (Hz)	60
Electrical Config	115/1/60 (evap), 208-230/1/60 (condenser)

Construction & Warranty

Warranty	Sentinel Series Ducted Warranty (see PDF)
Country	USA (Syracuse, NY)

Wine Guardian DS025 Split Wine Cellar Cooling System — Fan Coil — Dimensions

Footprint & Clearances

Allow 2" of clearance at rear and sides for ventilation when building in.

Height

15.56" (39cm)

Width

21.43" (54cm)

Depth

16.6" (42cm)

Weight

57.0 lb

Door Swing

27"

Capacity

—

Rough-in spec sheet, CAD files, and a full installation manual are available on request for contractors and interior designers.

Request CAD Files →

CAD file availability and fees vary by brand. A quote will be provided upon request.

STEP 01

Unpack & Upright

Let the unit stand upright for a minimum of 24 hours before first power-on. This allows the refrigerant to fully settle after transit.

STEP 02

Level & Position

Adjustable front legs level the cabinet on uneven floors. Ensure 2" rear clearance for built-in installs; 4" recommended for freestanding.

STEP 03

Power & Program

Plug into a dedicated 15 A circuit. Set upper and lower zones via the digital touch panel. Initial cool-down takes 6–8 hours.

Downloads & Resources

Warranty

Full Unit	2 years from installation date
Parts	Covered under 2-year factory warranty
Labor	Covered year 1; parts-only year 2
Coverage	Residential & light commercial

Full Wine Guardian Warranty Terms →

Care Instructions

Coil Cleaning	Inspect condenser coils annually · clean with soft brush
Drain Line	Must always be connected · inspect quarterly
Filter	Replace per model specifications (check manual)
Refrigerant	Authorized technician only · do not self-service
Installation	Licensed HVAC-R technician required (split & ducted systems)
