How Quiet Are Wine Cellar Cooling Units? Noise Levels, Placement, and the Quietest Setups (2026)

If your wine room sits next to a living room, a home office, or an open kitchen, the question on your mind isn't just whether a cooling unit can hold 55°F—it's whether you'll hear it humming through the wall every evening. It's a fair concern. A wine cellar cooling unit is a refrigeration system with a compressor and fans, and where you put it determines how much of that sound reaches the rooms you actually live in.

The good news: noise is almost entirely a function of which type of system you choose and where its loud components end up—not luck. This guide explains how cooling-unit noise is measured, what dBA ratings really mean, how the four main system types compare, and the placement decisions that separate a near-silent cellar from one with a persistent drone. Wine Majesty is an authorized Wine Guardian dealer, so the recommendations here map to the Wine Guardian systems we sell.

How wine cellar cooling noise is measured

Cooling-unit noise is rated in dBA (A-weighted decibels), a scale tuned to how the human ear actually perceives loudness. Two details matter when you compare numbers:

• Distance changes everything. Sound pressure drops roughly 6 dB each time you double your distance from the source. A unit measured at 3 feet will read meaningfully louder than the same unit measured at 6 feet, so always check the distance a spec was taken at before comparing two products.
• The decibel scale is logarithmic. A 10 dB increase sounds roughly twice as loud to your ear, so the gap between a 50 dBA and a 60 dBA unit is far bigger than it looks on paper.

For a frame of reference: a quiet library or a soft whisper sits around 30–40 dBA, a quiet home office or refrigerator hum is about 45–50 dBA, and normal conversation runs roughly 55–65 dBA. Anything under about 50 dBA is generally unobtrusive in a living space; once you climb past 55–60 dBA you'll notice it when the room is otherwise calm.

What you're actually hearing

A wine cooling unit makes two kinds of sound: compressor noise (a low mechanical hum when the unit is actively cooling) and fan/air noise (a steady whoosh from the evaporator fan that circulates cold air through the cellar, plus the condenser fan that dumps heat). The single biggest lever you have over perceived noise is keeping the compressor and condenser fan—the loud half—out of the room you occupy.

Noise by system type: from loudest to quietest

The four common configurations differ mainly in where the heat-rejecting components sit, which is exactly what drives in-room noise. Wine Guardian builds through-the-wall, split and ducted units; our model-by-model selection guide covers the full lineup, but here's how they stack up on sound.

Self-contained units

A self-contained unit packs the compressor, both fans, and the controls into one box that lives inside the cellar. It's the simplest, lowest-cost install, but it's also the loudest inside the room. That's rarely a problem for a dedicated, sealed cellar you only enter to retrieve bottles—but it's the wrong pick for a glass-walled display cellar off your dining room.

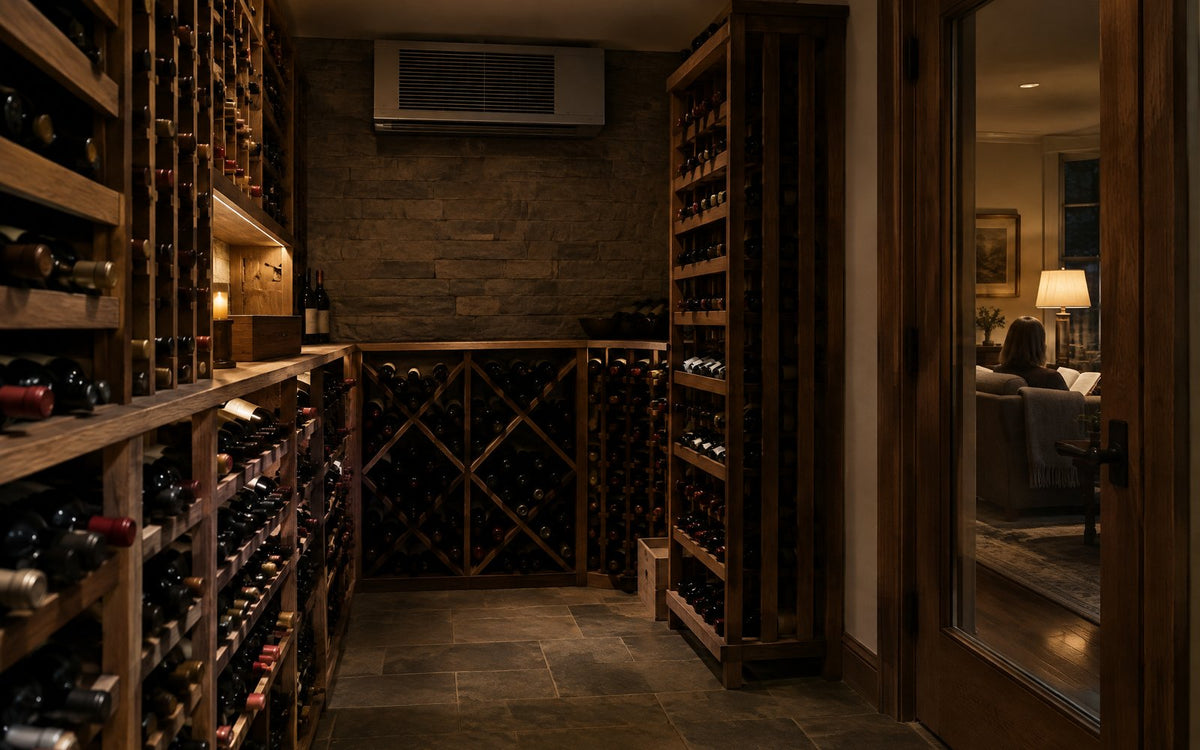

Through-the-wall units

Through-the-wall units mount in a shared wall and push warm exhaust—and most of the noise—into the space on the other side. Wine Guardian's published figures put its quietest through-the-wall models, the Defender trim, as low as 48 dBA at 6 feet, achieved with internal sound-reduction foam and added attenuation material around the grilles (an optional Ultra Quiet Package goes further). Wine Guardian lists 47.9 dBA for the TTW01B Defender and 54.0 dBA for the TTW02B Defender; the Classic and Sentinel trims list higher figures, about 56.9 to 59.3 dBA. The practical takeaway: a TTW unit is excellent when the wall it vents into is a garage, mechanical room, or closet, and less ideal when it backs onto a bedroom.

The Wine Guardian TTW01B is a sensible entry point for small to mid-size cellars that back onto unoccupied space—just plan the exhaust side carefully (more on that below).

Split and ducted systems: the quiet champions

Split systems separate the cellar-side fan coil from a remote condensing unit that holds the compressor and condenser fan. You can place that condensing unit in a garage, basement, or outdoors, within the line-set distance the manufacturer allows, which moves nearly all the noise out of earshot. What stays near the cellar is the fan coil, so the main sound left in the room is its fan. Fully ducted systems take it a step further: the entire unit lives elsewhere and only insulated supply/return ducts enter the cellar, making them the quietest option of all.

For a cellar adjacent to living space, a split system like the Wine Guardian SS018 ductless split or the DS025 split system is usually the right call—you get serious quiet without the cost and structural work of a full duct network. If you want the deeper comparison, see our ducted vs split breakdown.

Placement: the free way to cut noise

Once you've chosen a system type, where you put it does as much for quiet as the equipment itself. A few rules:

1. Give the exhaust room to breathe. Through-the-wall and self-contained units need unobstructed clearance on the warm-air exhaust side; follow the clearance listed in the unit's manual. A cramped, enclosed exhaust makes the unit work harder, run longer, and sound louder.
2. Vent into the right space. For a TTW unit, send the exhaust into a garage, mechanical room, or large closet—never a bedroom or the room you relax in. An exhaust duct kit lets you route warm air (and its noise) to a different area entirely.
3. Locate the condensing unit thoughtfully. With a split system, put the condensing unit somewhere its hum won't matter—and avoid hot, enclosed spots like an unventilated attic, which forces the compressor to run hotter and longer.
4. Mind the ambient temperature. Wine Guardian rates capacity at a set condenser air temperature: 75°F for the TTW units and 80°F for the DS splits. If the unit (or its condenser) sits in a hot space, it cycles more often and runs longer—which means more total noise, not just more energy use.
5. Seal and insulate the cellar. A well-sealed, well-insulated room holds temperature longer, so the unit cycles less. Less run time is less noise. Our insulation and vapor barrier guide covers how to build the envelope right.

How to choose the quietest setup for your situation

Match the system to where your cellar sits relative to the rooms you use:

• Dedicated cellar in a basement or unused room: A self-contained or through-the-wall unit is fine—you won't be sitting in there, and a sealed door contains the sound. Prioritize correct sizing over silence.
• Cellar backing onto a garage or mechanical room: A through-the-wall unit such as the TTW01B is cost-effective—the noise and heat go where they don't bother anyone.
• Glass display cellar off a living or dining room: Go split or ducted. Keep the compressor remote and only quiet fan noise stays in the space. This is a common reason to choose a DS025 split over a cheaper self-contained box.
• Large or multi-zone cellar where silence is non-negotiable: A fully ducted system hides the entire unit elsewhere and is the quietest of all.

One caution: don't undersize a unit to chase a lower dBA number. An undersized system runs constantly to keep up, which means more cumulative noise and shortened equipment life. Size first, then optimize for quiet within the right capacity class—our BTU sizing guide walks through the math, and the cost guide shows how system type affects budget.

Quick answers to common noise questions

Will I hear a cooling unit through a closed cellar door? With a properly sealed, insulated cellar and a remote-condenser split system, usually not in a meaningful way. With a self-contained unit and a poorly sealed door, you may notice the compressor cycling.

Are newer units quieter than older ones? Often, yes. Sound foam and grille attenuation, like the material in Wine Guardian's Defender trim, make a real difference. If your current unit is loud and aging, our troubleshooting guide can help you decide between a repair and an upgrade.

Does a quieter unit cool worse? No. Quiet comes from where the loud parts are located and how well the unit is built—not from reduced cooling power. A correctly sized split system cools just as effectively as a self-contained one.

Need help choosing the quietest system for your cellar?

The quietest setup depends on your room size, where it sits in your home, and how you'll use it. Tell us about your space and we'll recommend the right Wine Guardian configuration—and the placement that keeps it out of earshot. Start with our free Wine Room Plan, or browse the full Wine Guardian cooling collection to compare self-contained, through-the-wall, split, and ducted options side by side.
