Wine Guardian makes a wide range of cellar cooling units, and the lineup can be confusing. There's a through-the-wall series, a self-contained ducted series, ductless and ducted splits, and ceiling-mount fan coils—each in several capacities. Pick a unit that's too small and it runs constantly and never holds temperature; pick one that's oversized and it short-cycles, fails to pull humidity, and wears out early. This guide walks through the entire Wine Guardian range model by model, tells you which cellar size and layout each one is built for, and shows you how to narrow the catalog down to the two or three units worth quoting. Wine Majesty is an authorized Wine Guardian dealer, and the capacities and room volumes below are Wine Guardian's published figures.
Start with the one number that decides everything: room volume
Before you compare models, calculate your cellar's volume in cubic feet: length × width × height. A 10 × 8 room with a 9-foot ceiling is 720 cubic feet. That single figure is the starting point for every Wine Guardian recommendation, because Wine Guardian publishes most of its ratings by room volume.
Volume is only a starting point, though. The actual heat load your unit has to remove depends on insulation quality, whether you have a glass wall or door, how many exterior walls the room has, your local climate, and lighting. A 600-cubic-foot cellar with a full glass front can carry a larger heat load than a well-insulated 1,200-cubic-foot room. That's why every serious quote ends with a heat-load calculation rather than a volume guess. For the full method, see our companion piece on how to size a Wine Guardian cooling unit—this article focuses on which model the calculation usually points to.
The four Wine Guardian system types, in plain terms
Every Wine Guardian model falls into one of four families. Choosing the family is usually easier than choosing the capacity.
- Through-the-Wall (TTW): A single self-contained unit that mounts through an interior wall. The front faces the cellar; the back exhausts into an adjacent conditioned room. Easiest install, lowest cost, no ductwork, no licensed contractor required. Best for small cellars where a little fan noise inside the room is acceptable.
- Self-Contained Ducted (D-Series): An all-in-one unit—compressor, condenser, evaporator—mounted outside the cellar (an attic, closet, or mechanical room) with insulated ducts carrying cold air in and warm air out. Keeps all equipment and noise out of the wine room. The workhorse of residential cellars.
- Ducted & Ductless Split (DS / SS-Series): The condenser and evaporator are separate. The condenser lives outdoors or in a large mechanical space; the fan coil sits near or in the cellar. Maximum flexibility for long runs, tight rooms, or where you can't easily exhaust condenser heat. Requires a licensed HVAC contractor.
- Ceiling-Mount Fan Coil (CS-Series): A low-profile split evaporator designed to disappear above the ceiling, paired with a remote condenser. Used in design-forward rooms and wine walls where no equipment can be visible.
If you want a deeper look at the trade-offs between the last two, our ducted vs split cooling comparison covers noise, cost, and serviceability in detail. For the rest of this guide, we'll match capacities within each family to room size.
Through-the-Wall units: small cellars, simplest install
The TTW series is where most first cellars start. These units need no ductwork and no contractor—they mount through a framed interior wall opening and plug in. The trade-off is that the unit lives in the room, so you'll hear the fan, and the back has to exhaust into an adjacent space that stays cool year-round (not a hot garage or sealed closet).
| Model | Nominal capacity | Typical room volume* | Best for |
|---|---|---|---|
| TTW01B | 1,440 BTU/h at 75°F condenser air | No published cu ft range | Closets, small reach-in cellars, wine nooks |
| TTW02B | 2,650 BTU/h at 75°F condenser air | No published cu ft range | Small dedicated rooms |
| TTW04B | 3,760 BTU/h at 75°F condenser air | No published cu ft range | Larger small rooms or rooms with a glass door |
*Wine Guardian rates the TTW units by BTU/h, not by room volume, so size them with a heat-load calculation. Each model comes in Classic, Sentinel and Defender trims.
If you're converting a closet or building a first small room, the Wine Guardian TTW01B is the entry point. Step up to the TTW02B or TTW04B when your heat-load calculation calls for more capacity, for example with a glass door.
An even smaller-scale alternative: if you're not building a room at all—just storing 100–300 bottles in a living space—a self-contained wine refrigerator is simpler and cheaper than a cooled cellar. An Allavino FlexCount or Vite II cabinet handles that job without any construction. We cover that decision in when to upgrade from a wine fridge to a cellar.
D-Series self-contained ducted: the residential workhorse

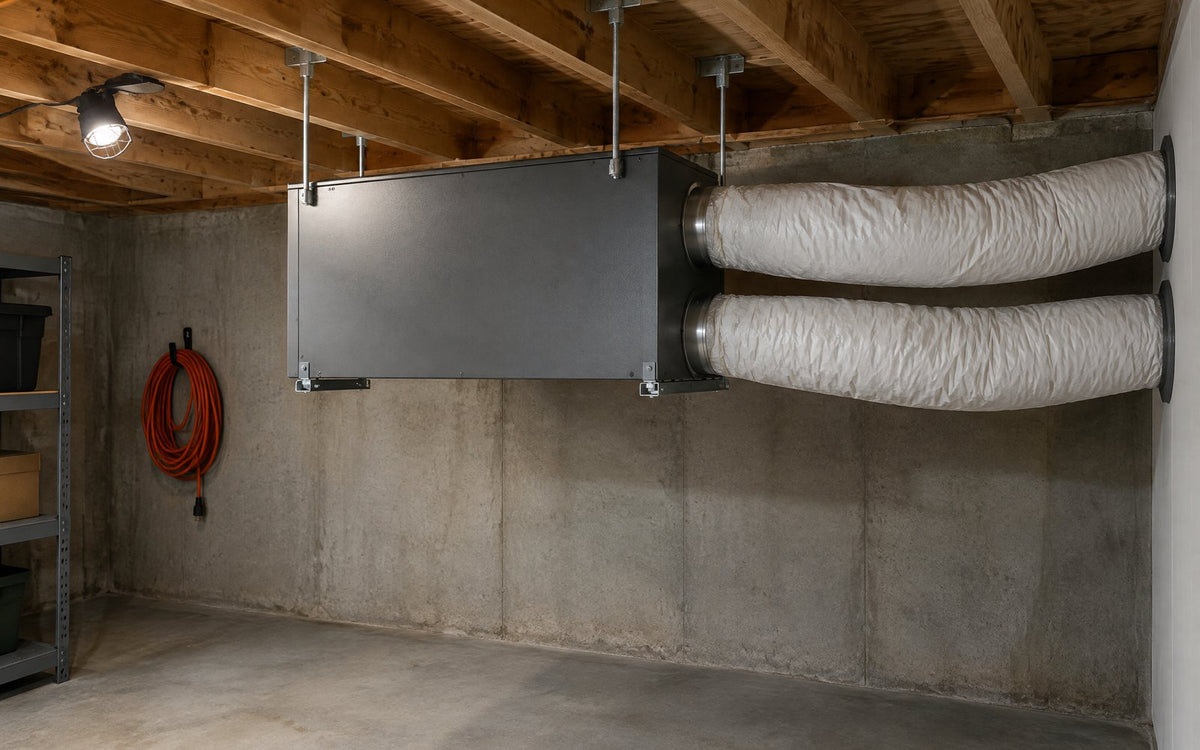

For most dedicated home cellars, the D-Series is the answer. The unit sits out of sight—an attic, a basement mechanical room, a nearby closet—and insulated ducts carry conditioned air to and from the cellar. Nothing intrudes on the room, and fan noise stays outside it. These are self-contained, so installation is far simpler than a split, though you'll want a pro to run and insulate the ducts.
| Model | Nominal size | Max capacity | Typical room volume* |
|---|---|---|---|
| D025 | 1/4 ton | up to ~4,300 BTU/h | 250 to 2,000 cu ft |
| D050 | 1/2 ton | up to ~6,320 BTU/h | 650 to 3,000 cu ft |
| D088 | 1 ton | up to ~8,640 BTU/h | 850 to 4,500 cu ft |
| D200 | 2 ton | up to ~14,100 BTU/h | 1,500 to 7,000 cu ft |
*Room volumes are Wine Guardian's published ratings. Insulation, glass and climate still change the load; glass-walled rooms in particular often need a larger model.
In practice, the D025 covers the bulk of compact home cellars, the D050 is the most common pick for a typical 1,000–2,000-cubic-foot wine room, and the D088 handles larger collections or rooms with significant glass. Each D-Series model is also available in a water-cooled (WC) variant for installations where rejecting heat to air isn't practical—useful in tight mechanical rooms or warm climates.
One sizing reminder: resist the urge to "round up for safety." An oversized cooling unit cools the air too fast, shuts off before it has pulled enough moisture, and leaves your cellar swinging between too dry and too damp. Correct sizing—not maximum sizing—is what protects your wine. (More on why humidity stability matters in our cellar humidity guide.)
DS & SS split systems: big rooms, tough installs, silent cellars
When the room is large, the duct run is long, or you simply cannot put any noise or heat near the cellar, a split system earns its higher install cost. The condenser sits outdoors or in a large mechanical space; only the fan coil lives near the wine. Wine Guardian's split line mirrors the D-Series capacities, so you can match the same heat load with a remote-condenser design.
- SS018 ductless split: A compact ductless option rated for 100 to 1,200 cu ft, for rooms where you want the condenser remote but don't need ductwork.
- DS025 / DS050 / DS088 / DS200 ducted splits: The flexible, scalable choice for medium through large and commercial cellars. Each one needs its matching fan coil and condensing unit, and we sell them together as complete systems.
For a large collection or a glass-walled showpiece where silence is non-negotiable, the DS088 complete split system, rated for 850 to 4,500 cu ft, is a common specification. Splits require a licensed HVAC contractor to charge and commission, so factor that into the budget. If your design calls for completely hidden equipment above the ceiling, the CS-Series ceiling-mount fan coils achieve the same goal in a low-profile form.
How to choose: a quick decision path
- Measure room volume (L × W × H in feet). This sets your capacity tier.
- Flag the heat-load multipliers: glass wall or door, exterior walls, warm climate, or bright lighting. Any of these may push you up one model size.
- Pick the system type by install reality: no ductwork and a tight budget → TTW; want equipment and noise out of the room → D-Series ducted; long run, large room, or no place to exhaust heat → DS/SS split; nothing can be visible → CS ceiling-mount.
- Confirm with a heat-load calculation before buying. Volume narrows you to two candidates; the calculation picks the right one.
| Your situation | Where to start |
|---|---|
| First small cellar / closet conversion, simplest install | TTW01B, TTW02B or TTW04B |
| Standard home wine room, equipment out of sight | D025 or D050 ducted |
| Large collection or glass-walled room | D088 ducted or DS088 split |
| Long duct run, no place to exhaust heat, or silent room required | DS / SS split, or CS ceiling-mount |
| Not building a room—just storing bottles | Allavino self-contained wine refrigerator |
A note on installation and longevity
Whichever model you choose, the install has a large effect on how long it lasts. Self-contained units need a properly sized, year-round-cool space to exhaust into; ducted units need insulated, correctly sized duct runs; splits need a competent line-set and charge. Cellar walls also need a continuous vapor barrier and R-value to match—without that, no cooling unit can hold 55°F and 50–70% humidity. We cover the build side in our Wine Guardian installation guide and insulation and vapor barrier guide.
