DS050 Fan coil only Base model

Capacity: 5,812 BTU/H

• Multiple supply air openings for installation flexibility (5 sides, including bottom option)
• High static pressure fans for extended lengths of ductwork
• Commercial-grade, all-aluminum construction for long-term durability
• Remote user interface for temperature control and humidity readout
• Operates in ambient temperatures between 0° - 122°F (-18° - 50°C) with standard low ambient protection on DS025 & WGS40

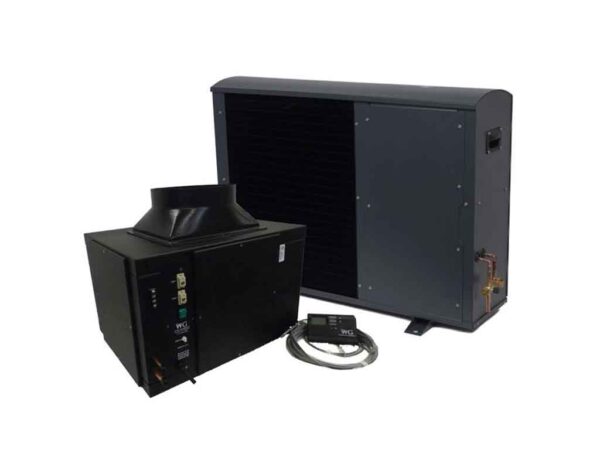

The DS050 Base Model fan coil unit serves as the evaporator component of a split cooling system engineered for wine storage environments. This unit pairs seamlessly with a Wine Guardian condensing unit to deliver efficient temperature control with a capacity of 6,300 BTU/H at 80°F inlet conditions. The compact design accommodates wall, balcony, shelf, or ground-level installation, making it particularly suited for wine cellars where space is constrained. Operating range spans 20°F to 115°F, with the condensing unit featuring low-ambient capability for cold-climate installations down to 20°F. The fan coil's ergonomic handles facilitate straightforward installation and positioning. This base configuration provides a foundation for customization—upgrade options include integrated heating, humidity management, or serving-temperature settings with a refined 42°F to 64°F cooling band for optimal wine service conditions.
