A climate-controlled wine cellar is only as good as its weakest seal β and on almost every build, that weak point is the door. You can pour money into closed-cell foam, a vapor barrier, and a correctly sized cooling unit, then watch your system run nonstop and your humidity drift because the door leaks conditioned air around its edges. The door is the one part of the cellar envelope that has to move, which makes it the hardest part to seal and the easiest to get wrong. This guide walks through how to choose between an insulated solid door and a glass door, the five sealing details that actually matter, and how your door choice changes the size of cooling unit you need. At Wine Majesty we sell the Wine Guardian cooling systems that have to overcome a leaky door every minute of every day, so we have a direct stake in helping you seal the room properly the first time.
Why the door is the weakest link in a sealed cellar
A wine cellar is built like a small cold room. The walls, ceiling, and floor get rigid foam insulation (roughly R-7 per inch of thickness) and a continuous vapor barrier on the warm side so that the cooling unit can hold 55Β°F and 50β70% relative humidity without fighting the rest of the house. A standard interior passage door undoes all of that. Hollow-core interior doors have almost no insulation value, no weatherstripping, and a gap at the threshold you can slide a magazine under. Every one of those gaps is a path for warm, dry house air to leak in and for cold, humid cellar air to leak out.
The consequences show up fast: the cooling unit short-cycles or runs continuously, the area near the door reads several degrees warmer than the far wall, condensation forms on the cold side of the frame, and humidity is impossible to hold. The fix is to treat the door as what it really is β an exterior-grade opening that happens to sit inside your home. That single mental shift drives every decision below.
Insulated solid doors vs. glass doors
There are two legitimate choices for a climate-controlled cellar, and the right one depends on whether you want to see the collection or hide the mechanical work the cellar has to do.
Insulated solid-core doors
A solid-core or solid-wood door is the easiest path to a tight, efficient cellar. A solid wood door around 2 1/4 inches thick carries a meaningfully higher R-value than a hollow interior door, and because it is a single opaque mass, there is no glazing for heat to pass through. Solid doors are the lower-cooling-load option, they are quieter, and they are more forgiving if your insulation or vapor barrier is not perfect. The trade-off is purely aesthetic: you cannot see the wine until you open the door.

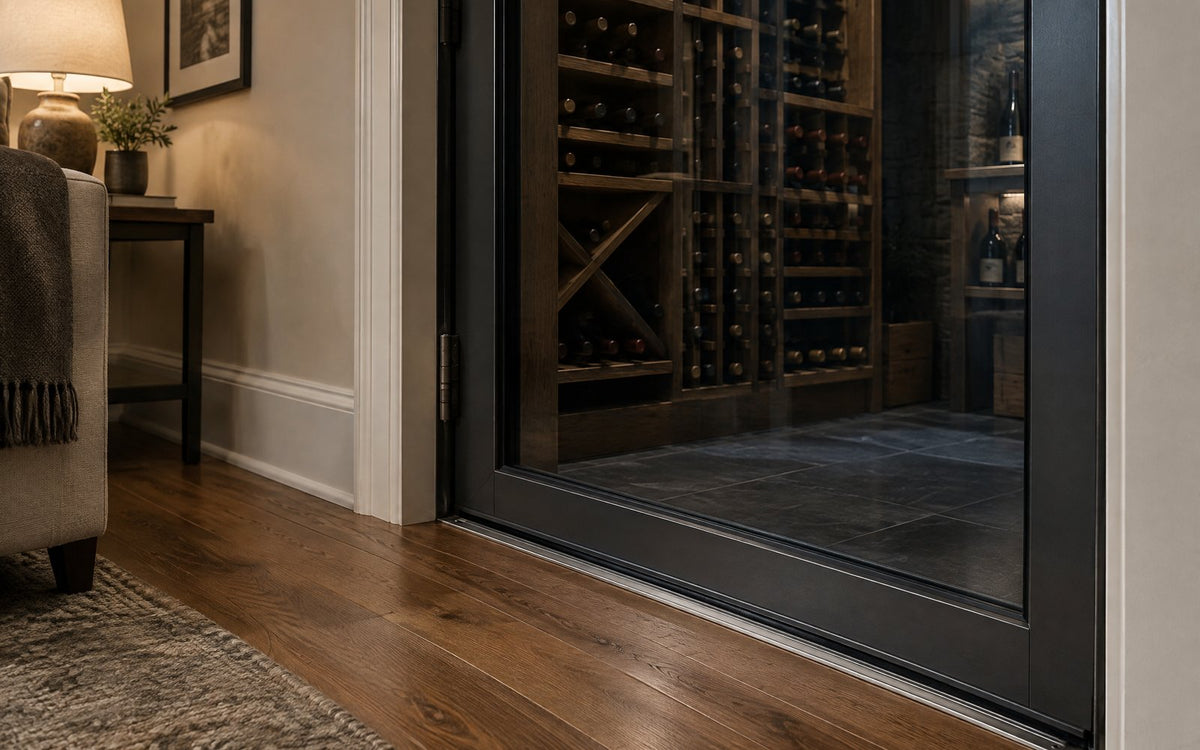

Glass doors β and what the view costs you
A glass door (or glass wall with a glass door) is the showpiece look, but glass is a thermal liability. Single-pane glass is a non-starter: it bridges heat straight through and forms condensation on the cellar side. Dual-pane insulated glass is the minimum standard for a climate-controlled cellar, and triple-pane is the right call in warmer or more humid climates. The space between panes is sealed and often filled with argon or krypton to slow heat transfer, and a low-emissivity (low-E) coating cuts both heat gain and the UV that fades labels and damages wine. Even with the best glass, expect to pay for the view in BTUs: adding glass can roughly double the cooling capacity a room needs compared with a fully insulated, solid-door build.
| Factor | Insulated solid door | Glass door (dual/triple pane) |
|---|---|---|
| Cooling load added | Low | High β can roughly double required BTUs |
| Condensation risk | Low | Moderate; rises sharply with single-pane glass |
| UV exposure to wine | None | Controlled only with low-E coating |
| Visibility of collection | None when closed | Full display |
| Frame requirement | Reinforced, weatherstripped | Thermally broken, weatherstripped, magnetic gaskets |
| Best for | Efficiency-first builds, warm climates, tight budgets | Showcase cellars where the cooling system is sized for it |
The five sealing details that actually matter
Whether you go solid or glass, the door only performs if these five elements are right. Miss any one and the rest stop mattering.
- Exterior-grade door construction. Specify a door rated and built for exterior use β solid-core or insulated, dimensionally stable, and able to take weatherstripping. Hollow-core interior doors cannot be made to seal no matter what you add to them.
- Perimeter weatherstripping. Compression weatherstripping on the jamb and head closes the gap between the door slab and the frame. Inspect it on a schedule β worn or flattened weatherstripping is the most common cause of a cellar that "suddenly" can't hold temperature.
- A bottom sweep or threshold. The gap under the door is the single largest leak path. An automatic door bottom (sweep) or an adjustable threshold seals it. This is non-negotiable on both solid and glass doors.
- Magnetic gaskets (glass doors especially). Refrigerator-style magnetic gaskets pull a glass or framed door tight against the frame for an airtight closure, the same principle that seals a commercial cold-room door.
- A reinforced, thermally broken frame. A reinforced frame supports the weight of a solid-wood or glass slab and lets the door close into a consistent seal. For glass, the frame must be thermally broken so the frame itself doesn't bridge heat and sweat. Seal joints between glass and framing with clear silicone.
How your door choice sizes your cooling system
Cooling-unit selection is a heat-load calculation: the unit has to remove as much heat as leaks into the room. Your door is part of that load. A solid, well-sealed door adds little; a glass door β even a good one β adds a lot, which is why the same room can need a noticeably larger unit just because it has a glass wall and door. This is exactly why door and glass decisions must be made before the cooling system is specified, not after.
For a fully insulated room with a solid door, a ducted unit like the Wine Guardian D025 (1/4 ton) covers a typical small-to-mid cellar. Add a glass door or glass wall, or build in a warmer space such as a garage-adjacent room, and you may step up to a D050 (1/2 ton) for the same floor area. When a through-the-wall or retrofit install is cleaner than ducting, the Wine Guardian SS018 ductless split is the flexible option. The point isn't the exact model β it's that the door changes the answer. Get a real heat-load number using our Wine Guardian BTU sizing guide with your actual door spec plugged in.
Sizing, swing, and build-out details
Beyond sealing, a few practical build details keep the door functioning for the life of the cellar:
- Rough opening and frame. Frame the rough opening for an exterior-style door and a reinforced jamb, not a standard interior pre-hung. Solid-wood and glass slabs are heavy, and an under-built frame will sag out of seal within a season.
- Swing direction. Hang the door to swing out of the cellar where possible. It preserves rack space inside and keeps the cold air from spilling toward you when you open it.
- Glazing on glass doors. Confirm dual-pane minimum, low-E coating, and inert-gas fill on the spec sheet. Insist on a thermally broken frame; the glass is only as good as what holds it.
- Hardware. Use a latching handleset that pulls the door firmly into the gaskets. A door that merely rests closed will leak.
- Vapor barrier continuity. The vapor barrier in the surrounding wall must tie cleanly into the door frame. A perfect door in a wall with a broken vapor barrier still gives you condensation problems.
Step-by-step: spec and seal your cellar door
- Decide solid vs. glass first. This drives your cooling load, so make it before sizing anything mechanical.
- Specify exterior-grade construction. Solid-core/solid-wood, or dual-pane (triple in warm climates) low-E glass in a thermally broken frame.
- Build a reinforced rough opening and hang the door to swing out of the cellar.
- Install full perimeter weatherstripping plus a bottom sweep or adjustable threshold.
- Add magnetic gaskets on glass or framed doors, and seal glass-to-frame joints with clear silicone.
- Tie the wall vapor barrier into the frame so the envelope is continuous.
- Size the cooling unit to the finished room β door, glass, and all β using a real heat-load calculation.
- Re-inspect the seals seasonally. Weatherstripping and sweeps wear; a five-minute check prevents a "mystery" temperature problem.
Get the door right before you size the cooling
The door is the cheapest place to lose a well-built cellar and the cheapest place to save one. Decide solid vs. glass, seal it like an exterior opening, and only then size the cooling system to the room you actually built. If you want a sizing number that accounts for your specific door and glass, get your free Wine Room Plan and we'll help you match the right Wine Guardian cooling unit to your finished space.
