How to Build a Wine Cellar in Your Basement: A Step-by-Step Guide (2026)

A basement is the single best place in most homes to build a wine cellar. It sits below grade where temperatures are already cool and stable, it's shielded from direct sunlight, and the surrounding earth does much of the insulating work for you. But "best place" is not the same as "ready to store wine." Pour your collection into an unsealed, uncooled basement room and you will trade fast temperature swings for slow ones — still enough to cook a serious bottle over a few summers.

This guide walks through building a basement wine cellar the right way, in the order the work actually happens: planning capacity, framing, insulation, vapor barrier, cooling, door, and racking. At Wine Majesty we sell the cooling units and racking that go into these rooms every week, so the specs below are the real numbers you'll size against — not rounded-off rules of thumb.

Why the Basement Wins (and Where It Can Bite You)

Below-grade rooms start with a built-in advantage: the earth around them holds a fairly constant temperature year-round, so a basement cellar fights smaller temperature differentials than a room on the main floor or in a garage. That means a smaller cooling unit, lower running cost, and less stress on the equipment.

The trade-off is moisture. Concrete foundation walls and slabs wick humidity, and a sealed, cooled room is exactly the kind of warm-meets-cold boundary where condensation forms inside your walls. Get the insulation and vapor barrier wrong and you invite mold, rot, and ruined framing behind a wall you just finished. Almost every basement cellar problem traces back to this one detail, which is why two of the six steps below are dedicated to it.

Step 0: Plan Capacity, Location, and Budget

Size the room to the collection — plus room to grow

Decide how many bottles you're building for, then add 30–50% headroom; collectors almost always fill a cellar faster than they expect. A practical planning figure is roughly 10–12 bottles per cubic foot of racking volume once you account for aisles and walkways. For most homeowners the sweet spot is a 200–1,000 bottle room carved out of an existing basement corner.

Pick the right corner

Favor an interior or north-facing corner away from furnaces, water heaters, and laundry — anything that throws heat or vibration. Two foundation walls forming the corner is ideal, because below-grade masonry is your cheapest insulation. Keep the room away from sump pumps and obvious moisture problems; fix any active water intrusion before you frame, not after.

Budget realistically

A built-out basement cellar is a multi-thousand-dollar project once you add framing, insulation, a vapor barrier, a cooling unit, an exterior-grade door, and racking. The cooling unit and door are not the places to cut corners — they're the two components that actually protect the wine.

Step 1: Frame the Room for a Cold, Damp Environment

Frame as if you're building an exterior wall, because functionally you are — you're separating a cold, humid box from the rest of the house.

• Use pressure-treated lumber for any framing that touches concrete or masonry (bottom plates against the slab, walls against foundation). Untreated wood against damp concrete will eventually rot.
• Set a capillary break — a sill gasket or strip of waterproof membrane — between the bottom plate and the slab so moisture can't wick up into the framing.
• Frame 2x6 walls if you can spare the floor space. Deeper cavities let you reach higher insulation values without resorting to thinner, more expensive materials.
• Plan the cooling and electrical now. Rough in a dedicated outlet for the cooling unit and any low-heat LED lighting before insulation goes up.

Step 2: Insulate to the Right R-Values

A cellar's cooling system can only hold 55°F if the envelope keeps the heat out. Industry build standards for wine rooms call for:

• Walls: a minimum of R-19, with R-19 to R-30 recommended for exterior and below-grade walls.
• Ceiling: a minimum of R-30, with R-38 or higher recommended — the ceiling separates your cold room from warmer space above and does a lot of work.

Three materials do the job, in rough order of performance:

Closed-cell spray foam is the favorite for basement cellars precisely because it insulates and seals moisture in a single pass, removing the most error-prone step in the whole build. For a deeper treatment of materials and placement, see our complete wine cellar insulation and vapor barrier guide.

Step 3: Install the Vapor Barrier on the Warm Side

This is the step that quietly ruins cellars when it's skipped or reversed. The vapor barrier must go on the warm side of the wall — the side facing the rest of the house — so warm, humid household air can't migrate into the cold wall cavity and condense.

• Use 6-mil polyethylene sheeting across walls and ceiling.
• Overlap all seams by at least 6 inches and seal them with vapor-barrier tape.
• Wrap the barrier continuously — walls and ceiling — so the cold box is fully encapsulated.

One important exception: if you insulated with closed-cell spray foam, it already acts as a vapor barrier, so the separate poly sheet is unnecessary. Doubling up can actually trap moisture between two barriers — pick one approach and execute it cleanly.

Step 4: Choose and Size the Cooling System

A wine cellar holds 55°F and 50–70% relative humidity, and a purpose-built wine cooling unit is what gets you there — a regular HVAC system or a window AC can't maintain those conditions and will dry the air out. Sizing is driven by your room's cubic footage (length × width × height) plus adjustments for insulation quality, glass, and climate.

Wine Guardian's self-contained Sentinel-series units cover the range most basement cellars fall into:

These figures are starting points — always confirm with a full heat-load calculation, because a glass door, an uninsulated ceiling, or a hot adjacent room can push you up a size. We walk through the math in our Wine Guardian BTU sizing guide. Browse the full lineup in the Wine Guardian cooling collection, and if you'd rather not run ductwork, our ducted vs split comparison covers which configuration fits a basement build.

Not ready for a built-out room yet? A built-in unit like the Allavino FlexCount 56-bottle built-in is a strong bridge: it holds proper cellar conditions for a meaningful collection while you plan the larger project.

Step 5: Hang an Exterior-Grade, Fully Sealed Door

The door is part of the thermal envelope, not an afterthought. A standard interior door leaks cold air and forces the cooling unit to run continuously — one of the most common reasons a unit "never shuts off."

• Use an exterior-grade door, typically 1¾" thick — solid core or insulated.
• Apply weatherstripping on all four sides of the jamb (felt, rubber, or silicone bulb) to form a pressure seal when closed.
• Seal the bottom with a threshold and sweep or an automatic door bottom that presses against the floor.
• If you want a glass door, specify double- or triple-pane insulated tempered glass — single-pane glass sweats and bleeds your cold air.

A well-sealed door pays for itself in lower energy bills and a cooling unit that cycles normally instead of grinding around the clock.

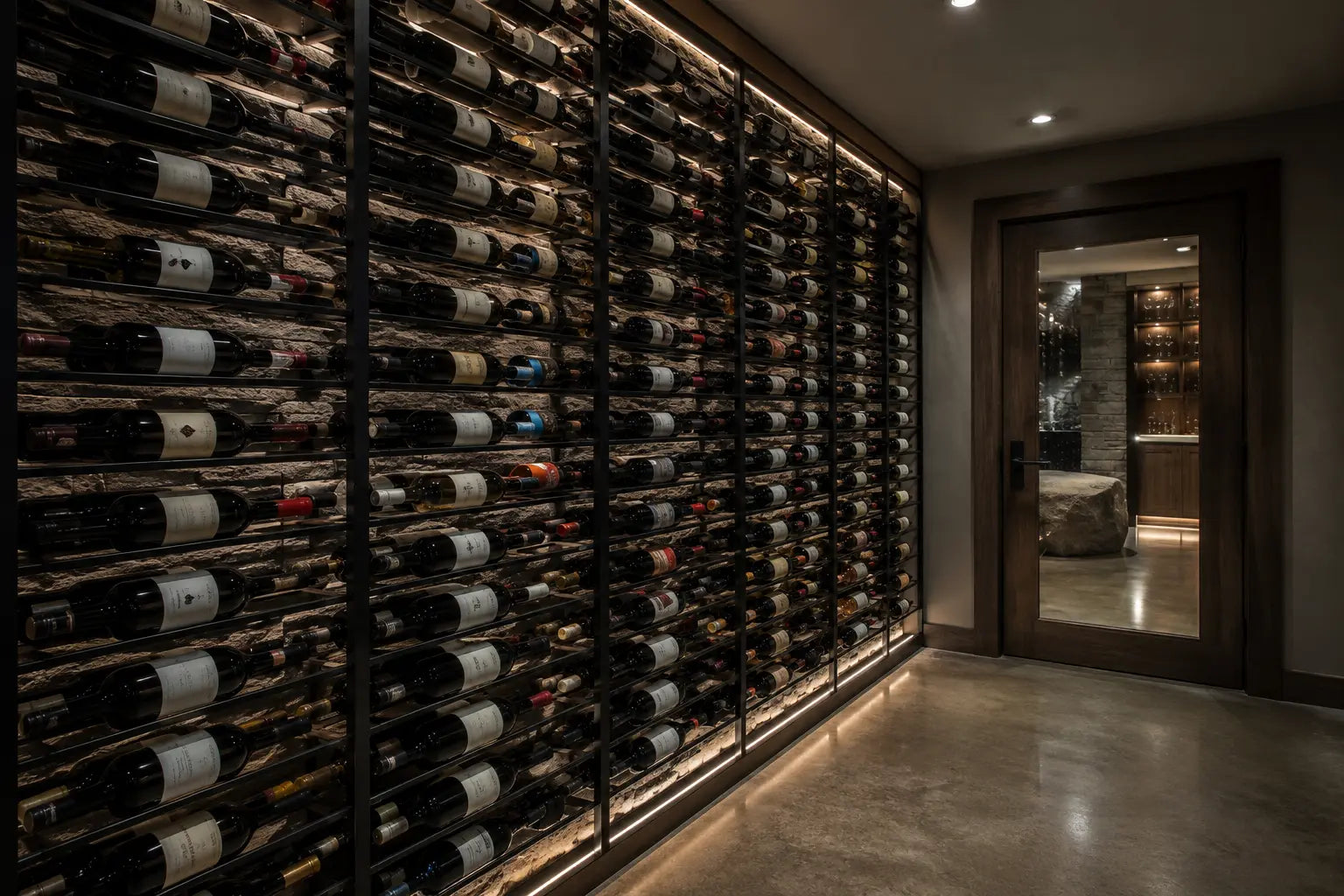

Step 6: Install Racking and Finish the Room

With the envelope sealed and cooled, racking is the fun part. In a finished basement cellar with good lighting, label-forward metal racking turns the wall into a display while making every bottle easy to find. VintageView pioneered label-forward storage, and its floor-to-ceiling systems scale cleanly — a single 10-foot W-Series frame supports up to 162 standard 750ml bottles, so you can plan walls in predictable increments.

A few finishing notes for basement rooms specifically:

• Lighting: use low-heat, dimmable LED only, and keep UV away from labels. See our cellar lighting guide.
• Flooring: sealed concrete, tile, or stone tolerates the humidity far better than hardwood, which can cup.
• Leave airflow gaps behind and around racking so the cooled air circulates evenly.

Explore configurations in our wine racks collection, and if you're combining display racking with bulk storage, our hybrid cellar design guide shows how to lay it out.

Quick Build Checklist

1. Confirm capacity and pick a dry interior/north corner away from heat sources.
2. Frame with pressure-treated lumber and a capillary break against the slab.
3. Insulate walls to R-19+ and ceiling to R-30+.
4. Install a 6-mil vapor barrier on the warm side (skip if using closed-cell foam).
5. Size and install a wine-specific cooling unit from a full heat-load calculation.
6. Hang a sealed, exterior-grade door with weatherstripping on all four sides.
7. Install label-forward racking, low-heat LED lighting, and moisture-tolerant flooring.

Build It Once, Build It Right

A basement gives you the best starting conditions of any room in the house — but the wine is only as safe as the envelope, the cooling unit, and the door you put around it. Nail those three and a basement cellar will hold 55°F through every season for decades.
