Hybrid Wine Cellar Design: Combining VintageView Display Racks With Bulk Storage for Serious Collections

Most serious collectors hit the same wall at around 200 bottles: the racks that look like a wine cellar in a magazine spread can't actually hold the cases you're buying. Label-forward metal racks display 24 bottles beautifully. Bulk bins hide 384. A good cellar needs both — and the way you split them determines whether the room works for the next ten years or feels cramped by the second case purchase.

This guide walks through how to design a hybrid wine cellar that pairs VintageView display racks with bulk storage, what each system actually does well, and how to plan the cooling load so the mixed racking doesn't fight your Wine Guardian unit. At Wine Majesty we spec these layouts for collectors building 200- to 1,500-bottle rooms, and the patterns below are what consistently work.

What "hybrid cellar" actually means

A hybrid wine cellar combines two different racking philosophies in one room:

• Display racking — label-forward, single-bottle-deep, designed to be seen. VintageView's Wall Series and Vino Pins systems sit here. Capacity is intentionally low per square foot because the bottle face is the point.
• Bulk storage — case-style bins, deep wood diamond cubes, or full-height metal bins. Bottles stack horizontally with the cork facing out. Capacity per square foot is 3–5× higher than display, but no individual bottle is on showcase.

The hybrid approach uses display racking where the eye lands — the entry wall, the wall opposite the door, the wall behind a glass enclosure — and pushes bulk storage into corners, side walls, and the area under counter-height runs. You get the magazine-cover aesthetic and a cellar that can actually absorb a case-buying habit.

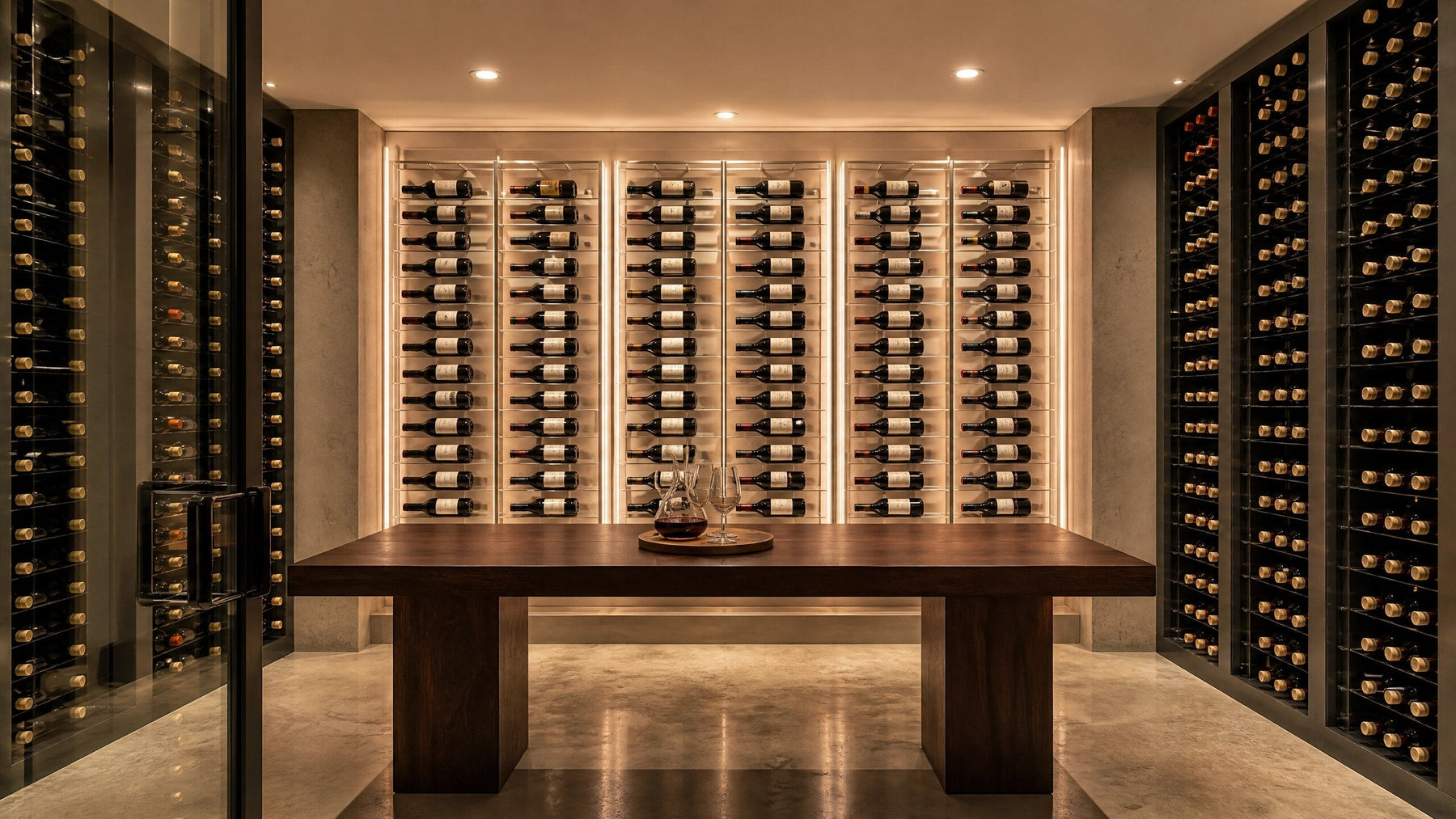

[IMAGE PLACEHOLDER — HERO: Modern hybrid wine cellar with label-forward VintageView racks and bulk wine bins]

The 70/30 rule: how to split display vs. bulk

For most home cellars sized between 200 and 1,000 bottles, the working ratio is 30% display, 70% bulk storage. That allocation reliably handles the way collectors actually buy and drink:

• Display section (30%) — daily-drinkers, current-vintage trophy bottles, anything you want guests to see. These get rotated frequently, so easy single-bottle access matters more than density.
• Bulk section (70%) — cases bought for aging, futures, library wines, backup bottles of favorites. These sit untouched for years. Density and labeling discipline matter; visibility does not.

If you flip the ratio (70% display, 30% bulk), you'll run out of storage by year two and start stacking cases on the floor. We see it constantly. The display rack is the dessert; bulk storage is the meal.

When to deviate from 70/30

Choosing the display section: VintageView's three relevant systems

VintageView makes a lot of products. For a hybrid cellar, three systems do the heavy lifting:

1. Wall Series — for accent walls

The W Series wall-mounted racks are the entry point. A single W Series 3 (single-depth) panel is 36" tall, 13" wide, and only 4.25" deep, holding 9 bottles label-forward. The W Series 4 doubles the depth to 8.5" for 24 bottles in the same footprint. Multiple panels stack with couplers for a full wall of label display.

Use these when you have a flat, unobstructed wall you want to feature and the wall isn't load-bearing the bulk capacity. They install with screws into studs or a furring strip — no floor footprint.

2. Vino Pins / Vino Series — for glass-wall and feature installations

The Vino Pins Post Kit uses floor-to-ceiling steel posts with individual pegs that cradle each bottle by the neck. Single-deep configurations hold one bottle per pin slot; double- and triple-deep versions extend back. The visual signature is the bottle floating on a thin rod — extremely modern, often used in glass-walled cellars where both sides are visible.

Vino Pins are floor-to-ceiling, so they need both a finished floor and ceiling to anchor against. Plan post locations before drywall.

3. Evolution Low Profile — the hybrid product within VintageView itself

The Evolution Low Profile series is worth singling out because it bridges display and bulk in a single unit. The Evolution Low Profile Combo Kit pairs label-display posts with case-style boxes underneath, in just 3" of depth. If you have a tight wall that needs to function as both display and storage, this is the cleanest single-product solution before you start mixing brands.

Choosing the bulk section: case-style bins and wood diamonds

For the 70% bulk allocation, two paths dominate:

Metal case-style bins (VintageView Case & Crate)

The Wine Bin Tall is the workhorse here. Bottles store horizontally, cork-forward, in tight columns. A single-wide unit holds 96 bottles; a four-wide configuration scales to 384 bottles in the same vertical footprint. Steel construction matches the W Series visually if you've used those upstairs in the display section, so the room reads as one design language instead of two clashing materials.

Bins are flat-pack and freestanding — they need a level floor, not wall anchors. Plan a 14.75" footprint depth.

Traditional wood diamond cubes and individual racking

If you want a more classical look behind glass — particularly in homes with traditional or transitional interiors — wood diamond bins remain the default. Mahogany and redwood handle 60–70% humidity without warping; pine and oak are cheaper but less durable in a humid cellar environment. Wood is also a better vibration damper than metal, which matters slightly for very long-term storage of fine wine but is largely overstated as a concern.

Wood racking is harder to mix visually with VintageView metal — the materials clash unless you commit to a deliberate two-zone aesthetic (one wall metal, one wall wood). When in doubt, stay with metal throughout for visual cohesion.

Cooling load: why hybrid cellars are easier to cool, not harder

A common misconception is that hybrid cellars complicate cooling. They don't. The Wine Guardian unit cares about three things: room volume in cubic feet, insulation R-value, and the heat load from outside air. Racking material is irrelevant to the BTU calculation.

What matters is sizing the unit to the room. The current Wine Guardian Sentinel ducted lineup covers most home cellars:

For a typical 200–500 bottle hybrid cellar (roughly 80–150 sq ft floor area, 8' ceiling, well-insulated), a D025 is usually correct. A 500–1,000 bottle room (150–250 sq ft) sits in the lower D050 range. Above that, the D088 or a split system becomes the right call.

The one cooling consideration unique to hybrid layouts is airflow. Tall bulk bins (like the Wine Bin Tall at 8' high) can block return air paths if they're placed in front of the evaporator coil. Plan your supply and return positions so cooled air reaches the display walls and warm air gets pulled back without bottles blocking the path. For a deeper dive into picking the right size, see our Wine Guardian sizing guide.

The four-step hybrid layout process

Step 1 — Calculate total bottle target

Start with the realistic 5-year capacity, not the 1-year. Most collectors underbuild by 40–60%. If you currently own 200 bottles and buy 5 cases per year (60 bottles), plan for 500 bottles. If you sell or drink 2 cases per year, you'll still net ~360 over five years. Build the cellar for the final number.

Step 2 — Apply the 70/30 split

For a 500-bottle target: 150 display bottles, 350 bulk bottles. Convert that to product counts.

• 150 display bottles ≈ 6 panels of W Series 4 (24 bottles each), or a mix of Wall Series and Vino Pins covering ~50 linear feet of wall.
• 350 bulk bottles ≈ a triple-wide Wine Bin Tall (288 bottles) plus a single-wide for the remaining 96, with a few empty slots for growth.

Step 3 — Place display where the eye lands, bulk where it doesn't

The wall opposite the door gets display racks. Side walls get bulk. Corners get bulk. Anything behind a glass partition gets display. This is not a design rule — it's about what visitors notice in the first three seconds.

Step 4 — Size cooling to the finished room, not the bottle count

Run the BTU math on the room dimensions and insulation, not on how many bottles you'll have. A 1,000-bottle room and a 200-bottle room with identical dimensions take the same cooling unit. The bottles themselves contribute minimal thermal mass once they're at temperature.

Common mistakes to avoid

• All display, no bulk. The cellar looks incredible at the photographer's appointment and runs out of capacity by Christmas. Build for years 3–5, not the housewarming.
• Mixing materials without a plan. A wood diamond rack next to a brushed nickel Wall Series panel looks like an accident unless you commit to a deliberate two-material zoning. If in doubt, pick one finish family and stay within it.
• Underspeccing cooling for the room volume. A D025 in a 1,500 cu ft room with mediocre insulation will short-cycle and never hit setpoint. Spec to room volume + climate, then verify against the bottle count.
• Ignoring the entry sight line. Whatever the visitor sees when the door opens is the cellar's identity. If that view is a wall of brown cardboard cases stacked on the floor, the room reads as a basement, not a cellar.

Bringing it together

A working hybrid cellar isn't fancier than a single-system cellar — it's just better matched to how collectors actually use the room. Display where it counts. Bulk where it doesn't. Cooling sized to the room volume, not the rack material. Mixing VintageView's Wall Series, Vino Pins, and Case & Crate within a single cohesive finish lets you do all three without the room reading as compromised.

If you're planning a cellar build right now, the design choices in months one through three lock in the next ten years of collecting. Get the racking ratio right at the start and everything downstream — from cooling load to insurance valuation — becomes easier.
