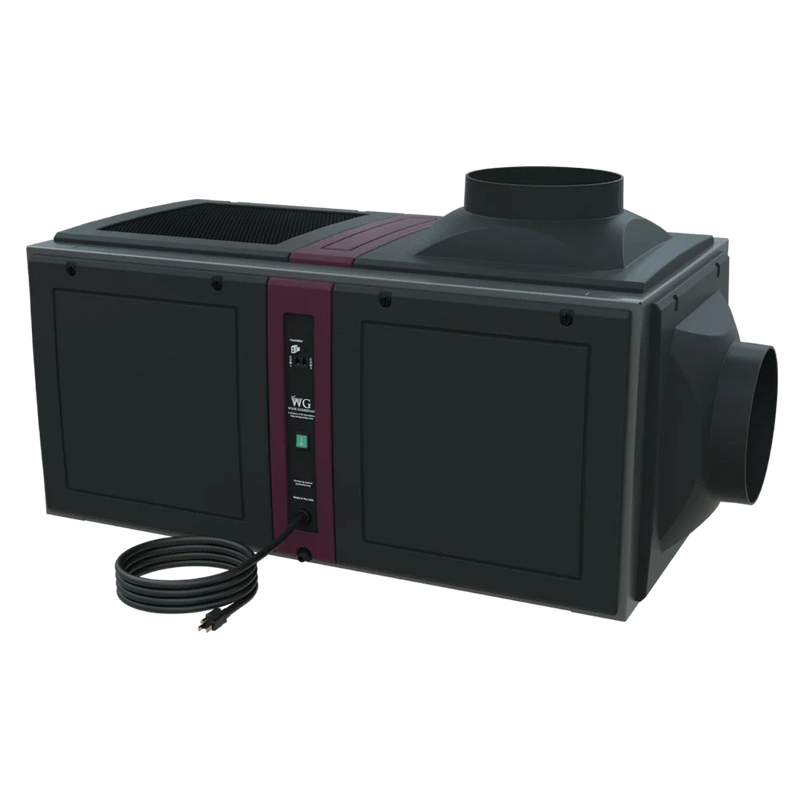

Wine Guardian D088 ducted wine cellar cooling unit

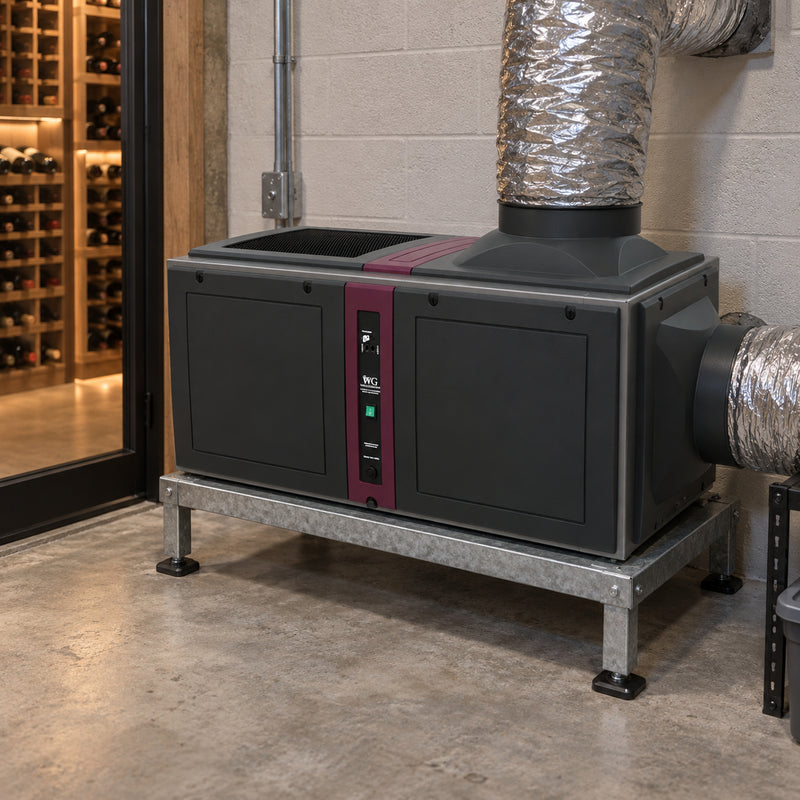

Illustration of a Wine Guardian ducted cooling unit on a platform with insulated ducts

Wine Guardian D088 Ducted Wine Cellar Cooling System (1 Ton)

Name: Wine Guardian D088 Ducted Wine Cellar Cooling System (1 Ton)
Brand: Wine Guardian
SKU: 99H0252-20
Price: 8715.0 USD
Availability: InStock

$8,715.00 - $11,391.00

$8,715.00

$8,715.00 - $11,391.00

$8,715.00

Pay in full

Free shipping included

Pay monthly from /mo

with Shop Pay Installments

Cellar size850 to 4,500 cu ft

Width41.5 in

Height18.85 in

Depth22.4 in

Available · Ships in 7 to 14 business days

Trusted by 39+ collectors★★★★★4.9 · 39 verified reviews

Quantity

SKU: 99H0252-20

Recommended Add-Ons

Wine Guardian Integrated Cellar Humidifier (D025-Class)Integrated Humidifier D050 D088 D200

$1,573.00

Wine Guardian Combo Duct Kit, 10" (Supply + Return Collars + 25 ft Flex Duct)

$840.00

Wine Guardian Remote Sensor, Temperature & Humidity (Wireless2Base)

$375.00

Wine Guardian Platinum Warranty, 25 Months Parts and LaborTier 2: 050 and 088-Class

$631.00

AI

Free Cellar ConsultationChat with our AI Wine Specialist, any time.Or call our team: (331) 244-8273 · Mon to Fri, 9 to 5 CT

Call

Free Standard DeliveryTo the contiguous United States
25 Months Parts13 months labor · Wine Guardian
30-Day ReturnsUnused, original packaging · fees may apply
Authorized Wine Guardian DealerShips new and sealed

Which unit fits your cellar?

Measure the room in feet and multiply length × width × height. The result is your cellar volume in cubic feet. Then find the unit rated for that volume.

Model	Rated cellar volume	Type	Price
D025	250 to 2,000 cu ft	Ducted, self-contained	$6,483.00
D050	650 to 3,000 cu ft	Ducted, self-contained	$7,915.00
D088This model	850 to 4,500 cu ft	Ducted, self-contained	$8,715.00
D200	1,500 to 7,000 cu ft	Ducted, self-contained	$11,980.00
D025WC	250 to 2,000 cu ft	Ducted, water-cooled	$7,235.00
D050WC	650 to 3,000 cu ft	Ducted, water-cooled	$8,770.00
D088WC	850 to 4,500 cu ft	Ducted, water-cooled	$9,551.00
D200WC	1,500 to 7,000 cu ft	Ducted, water-cooled	$12,500.00

Ratings are Wine Guardian's published figures. Glass, thin insulation and a warm space around the cellar all add load, so a room near the top of a range may need the next size up.

Not sure? Send us your room size and we will check it for free.

Free Cellar Plan

Overview

Cellar cooling sized to the room, not guessed from floor area.

D088 at a glance: maximum capacity 8,640 BTU/h, for cellars of 850 to 4,500 cubic feet, 208 to 230 V single phase, about 125 lb (Wine Guardian). Wine Guardian recommends contractor installation and its cellar cooling calculator to confirm the fit.

Ducted Cooling Systems
Experience the pinnacle of wine climate control with this ducted cooling system, engineered for maximum adaptability across diverse applications. The self-contained design streamlines both installation and upkeep in commercial and residential environments. Cooling removes moisture from the air. To add humidity, pair it with the Wine Guardian Integrated Cellar Humidifier. Available in multiple capacities and configurations, this unit addresses the exacting demands of any wine storage scenario with professional-grade performance and reliability.

Standard Features:

1/4 ton to 2-ton capacities (3,300 to 16,200 BTH)
Multi-panel design provides easy access for service
Lightweight, corrosion-resistant, all aluminum outer body
High static pressure fans for extended lengths of ductwork
Multiple supply and return air opening for installation flexibility
Completely self-contained design
Factory tested prior to shipment
Certified to Underwriters Laboratory standards

Options:

Water-Cooled
Electric Heat
Low Ambient
High Ambient
Heating Coil
Humidification

Performance & Capacity

Product Type	ducted self-contained
Installation	ducted self-contained
Cooling Capacity (BTU/h)	5000-9600
Max Cellar Volume (ft³)	850-4500

Dimensions & Electrical

Voltage	208-230V
Frequency (Hz)	60
Electrical Config	208-230/1/60

Construction & Warranty

Warranty	Sentinel Series Ducted Warranty (see PDF)
Certifications	Certified to Underwriters Laboratory standards (UL)
Country	USA (Syracuse, NY)

Wine Guardian D088 Ducted Wine Cellar Cooling System (1 Ton) - Dimensions

Footprint & Clearances

Check the manual for required clearances and service access before you build.

Height

18.85" (48cm)

Width

41.5" (105cm)

Depth

22.4" (57cm)

Weight

125.0 lb

Manufacturer spec sheets and installation manuals are available on request, plus CAD files where the brand provides them.

Request CAD Files →

What we can send depends on the manufacturer.

STEP 01

Plan the duct run

Confirm the cellar volume, where the unit will sit and how far the supply and return ducts must travel. Duct length affects performance.

STEP 02

Mount and connect

A licensed HVAC technician mounts the unit, runs the ducts to the cellar and connects the drain and power as the manual specifies.

STEP 03

Commission and set

Power on, check airflow and drainage, then set the target temperature. Let the cellar come down to setpoint gradually.

Downloads & Resources

Warranty

Parts	25 months from the original invoice date
Labor	13 months · Wine Guardian approval before work starts
Who Is Covered	Original buyer · normal use and service
Platinum Option	25 months labor · compressor and coils to 61 months (parts)

Full Wine Guardian Warranty Terms →

Care Instructions

Coil Cleaning	Inspect condenser coils annually · clean with soft brush
Drain Line	Must always be connected · inspect quarterly
Filter	Replace per model specifications (check manual)
Refrigerant	Qualified technician only · do not self-service
Installation	Licensed HVAC technician for split and ducted systems

Reviews across all our products

39 collectors can't be wrong.

4.9

out of 5

Based on 39 verified purchases

5★

33

4★

6

3★

0

2★

0

1★

0

Review Highlights

Great service 15 Fast delivery 30 Build quality 18 Quiet operation 8 Easy install 12

Sort

Questions? Call (331) 244-8273 Mon to Fri · 9 AM to 5 PM CT

Designed For The Discerning Collector

Cellar cooling sized to the room, not guessed from floor area.

View Full Specifications → Cooling a custom wine cellar? →

01

Equipment Outside the Cellar

A ducted system sits in a nearby space and moves conditioned air into the cellar through supply and return ducts, so the unit stays out of sight.

02

Ducting Planned to the Room

Duct size and length affect performance, so the duct route is part of sizing. Wine Guardian duct collars and kits are sold separately.

03

Professional Installation

Ducted systems should be fitted by a licensed HVAC technician. We ship the unit; we do not install it.

04

Sized by Cellar Volume

Capacity is rated by room volume in cubic feet, then adjusted for insulation, vapor barrier and glass. Floor area alone is not enough to choose a unit.

05

Free Sizing Help

Send your room dimensions and a specialist recommends a unit in a free cellar plan, returned within 48 hours.

06

Wine Guardian Warranty

25 months on parts and 13 months on labor from the original invoice date, for the original buyer. Labor is covered only when Wine Guardian approves the repair first. Read the full terms.
