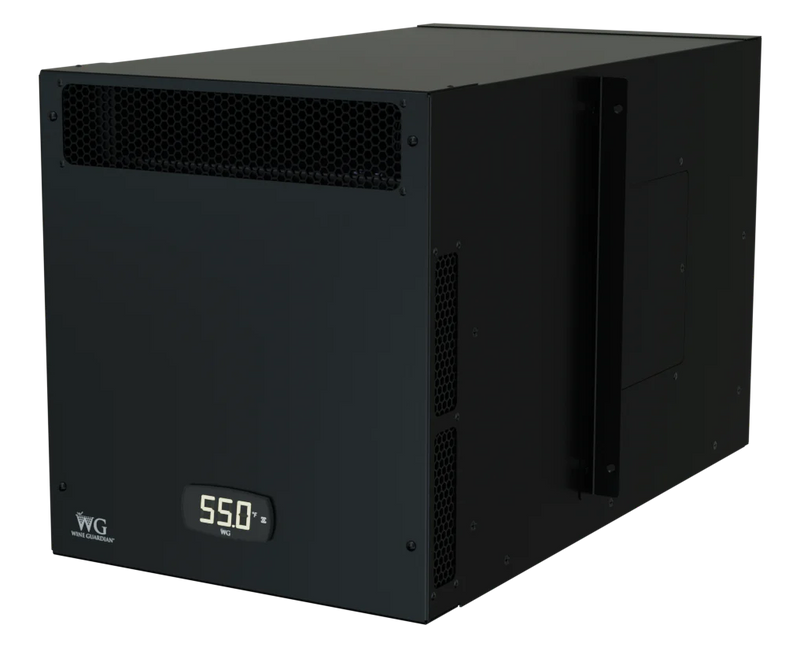

Wine Guardian TTW Classic through-the-wall wine cellar cooling unit — front

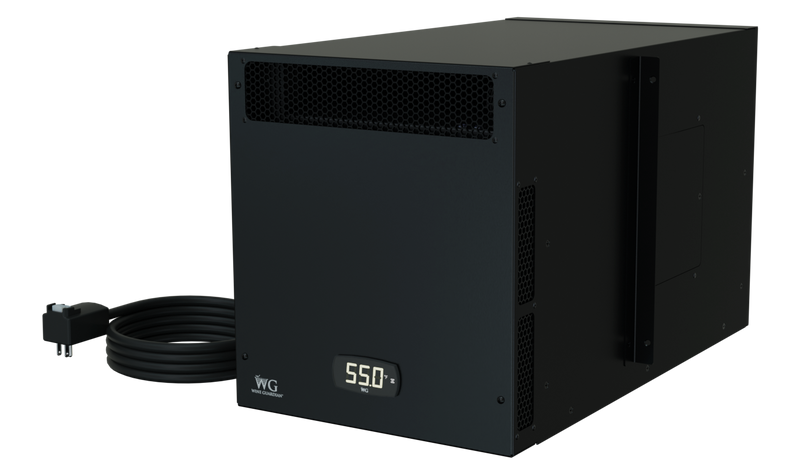

Wine Guardian TTW Classic cooling unit — front with power cord

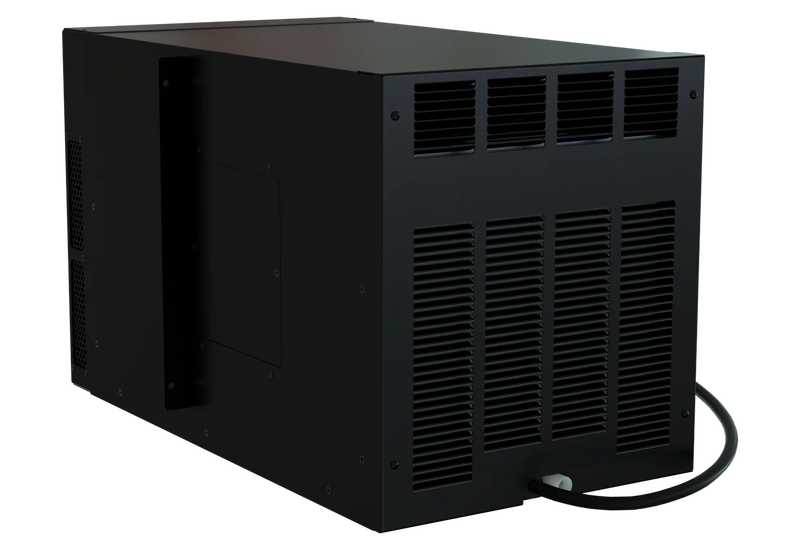

Wine Guardian TTW Classic cooling unit — rear view

Trusted by 39+ collectors★★★★★4.9 · 39 verified reviews

Wine Guardian TTW04B Classic Through-the-Wall Wine Cellar Cooling Unit

Name: Wine Guardian TTW04B Classic Through-the-Wall Wine Cellar Cooling Unit
Brand: Wine Guardian
SKU: WGTTW04B00SCC1A0000
Price: 5105.0 USD
Availability: InStock

$5,105.00 - $5,105.00

$5,105.00

$5,105.00 - $5,105.00

$5,105.00

⚑ Price Match Guarantee — found it lower? We'll match it.

In Stock — Ships in 7–14 business days

Questions? (331) 244-8273

SKU: WGTTW04B00SCC1A0000

“She was honest about what I needed and didn’t try to oversell.”Louis C. · Verified Buyer

“Build quality feels solid and premium. Would buy again.”Stephanie C. · Verified Buyer

or

Request a Quote · Trade Pricing

Free Standard DeliveryDelivered to your door, 5–9 business days
Full Manufacturer WarrantyHonored direct via authorized dealer
30-Day ReturnsFull refund, we arrange pickup
Secure Checkout256-bit SSL · PCI DSS Level 1

WM

Free Cellar ConsultationSpeak with our wine storage specialistMon–Fri · 9 AM–5 PM EST

Call

Authorized Wine Guardian Dealer. Every unit ships new, sealed, and covered by the full manufacturer warranty.

Free Standard DeliveryFree to contiguous US · door delivery

Authorized DealerFull manufacturer warranty honored

Price-Match GuaranteeWe'll match any MAP-compliant price

Real Humans, Real SupportWine specialists Mon–Fri, 9–5 EST

Overview

A refrigerator the way a sommelier would build one.

The Wine Guardian TTW04B Classic is a self-contained, through-the-wall cooling unit rated at 4000 BTU/hr, engineered to hold precise temperature and humidity in larger wine cellars. Its patented design installs DIY-friendly through a single interior wall, runs quietly, and is controlled right on the unit face via a Bluetooth-compatible touchscreen.

Includes eco-friendly refrigerant, a coated evaporator coil, and a mounting bracket.

Replacing an older Wine Guardian? This unit ships with a mounting bracket and no new wall sleeve — it fits directly into your existing TTW009 / TTW018 wall sleeve.

Capacity & Cooling

Bottle Capacity	174 (standard 750 mL Bordeaux)
Zones	Dual — Upper & Lower
Upper Zone Range	41°F – 53°F
Lower Zone Range	54°F – 66°F
Cooling System	Compressor (Tru-Vino™)
Temperature Accuracy	±1°F
Ambient Range	55°F – 90°F
Noise Level	< 38 dB

Construction

Cabinet Finish	304 Stainless Steel, brushed
Door Material	Triple-pane Low-E, argon-filled
UV Filtration	< 2% transmission
Shelving	Ebony beechwood · 7 shelves
Interior Lighting	LED, dimmable
Lock	Factory-installed, 2 keys

Dimensions & Weight

Height	71.00 in (180.34 cm)
Width	23.38 in (59.39 cm)
Depth (w/ handle)	26.75 in (67.95 cm)
Depth (w/o handle)	24.00 in (60.96 cm)
Door Swing Clearance	27.00 in
Empty Weight	265 lb
Shipping Weight	311 lb

Electrical & Certifications

Voltage	115 V / 60 Hz
Amperage	2.5 A
Plug Type	NEMA 5-15
Refrigerant	R-600a (natural)
Energy Consumption	1.6 kWh/day (avg.)
Certifications	UL, ETL, Energy Star pending
Warranty	2-year parts & labor
Country of Manufacture	Assembled in Taiwan

Footprint & Clearances

Allow 2" of clearance at rear and sides for ventilation when building in.

Height

71.00 in

Width

23.38 in

Depth

24.00 in

Weight

265 lb

Door Swing

27"

Capacity

174 btl

Rough-in spec sheet, CAD files, and a full installation manual are available on request for contractors and interior designers.

Request CAD Files →

CAD file availability and fees vary by brand. A quote will be provided upon request.

STEP 01

Unpack & Upright

Let the unit stand upright for a minimum of 24 hours before first power-on. This allows the refrigerant to fully settle after transit.

STEP 02

Level & Position

Adjustable front legs level the cabinet on uneven floors. Ensure 2" rear clearance for built-in installs; 4" recommended for freestanding.

STEP 03

Power & Program

Plug into a dedicated 15 A circuit. Set upper and lower zones via the digital touch panel. Initial cool-down takes 6–8 hours.

Warranty

Full Unit	2 years from installation date
Parts	Covered under 2-year factory warranty
Labor	Covered year 1; parts-only year 2
Coverage	Residential & light commercial

Full Wine Guardian Warranty Terms →

Care Instructions

Coil Cleaning	Inspect condenser coils annually · clean with soft brush
Drain Line	Must always be connected · inspect quarterly
Filter	Replace per model specifications (check manual)
Refrigerant	Authorized technician only · do not self-service
Installation	Licensed HVAC-R technician required (split & ducted systems)

Designed For The Discerning Collector

Precision cooling, furniture-grade finish, and the capacity to grow with your collection.

View Full Specifications →

01

Tru-Vino Dual-Zone Precision

Independent temperature control for reds (54–66°F) and whites (41–53°F). Digital control within ±1°F — engineered to aging-cellar standards.

02

Flexible, Full-Bottle Shelving

Ebony-stained beechwood shelves glide on ball-bearing rails, holding Bordeaux, Burgundy, and oversized Champagne without reconfiguration.

03

Triple-Pane Low-E Glass

UV-filtering tinted glass shields bottles from light degradation. Argon-filled seal maintains consistent humidity for long-term cellaring.

04

Whisper-Quiet Compressor

Vibration-dampened compressor operates at under 38 dB — quieter than a library. Your wines rest undisturbed, your room stays serene.

05

Built-In or Freestanding

Front-vented cooling allows flush installation under cabinetry — or stand it alone. The 304 stainless trim reads premium in either placement.

06

Secure Lock & LED Lighting

Factory-installed lock plus soft interior LED on a dimmer — showcase the collection without raising temperature a single degree.
