Summit SWCDAR36UC 36" Undercounter Wine Cooler & Drawer Refrigerator, Dual-Zone

Name: Summit SWCDAR36UC 36" Undercounter Wine Cooler & Drawer Refrigerator, Dual-Zone
Brand: Summit
SKU: SWCDAR36UC
Price: 3395.0 USD
Availability: InStock

$3,810.00

$3,810.00 - $4,085.00

$3,810.00

$3,395.00

$3,190.00 - $3,470.00

$3,395.00

Pay in full

Free shipping included

Pay monthly from /mo

with Shop Pay Installments

Capacity34 bottles

Zones2 independent zones

Width35.5 in

Height34.13 in

Available · Ships in 7 to 14 business days

Trusted by 39+ collectors★★★★★4.9 · 39 verified reviews

Quantity

SKU: SWCDAR36UC

AI

Free Cellar ConsultationChat with our AI Wine Specialist, any time.Or call our team: (331) 244-8273 · Mon to Fri, 9 to 5 CT

Call

Free Standard DeliveryTo the contiguous United States
1 Year Parts and LaborCompressor covered to year 5 · Summit
No Change-of-Mind ReturnsUnopened units only · see return policy
Authorized Summit DealerShips new and sealed

Overview

Built to keep the collection at its temperature.

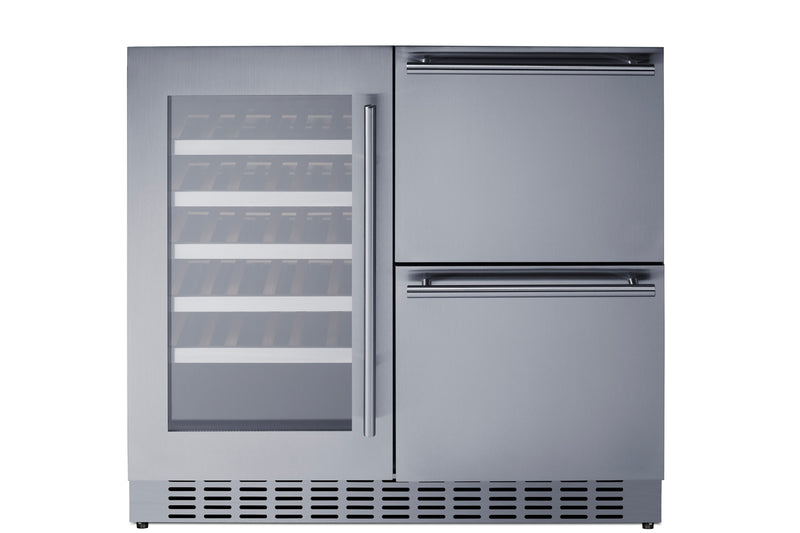

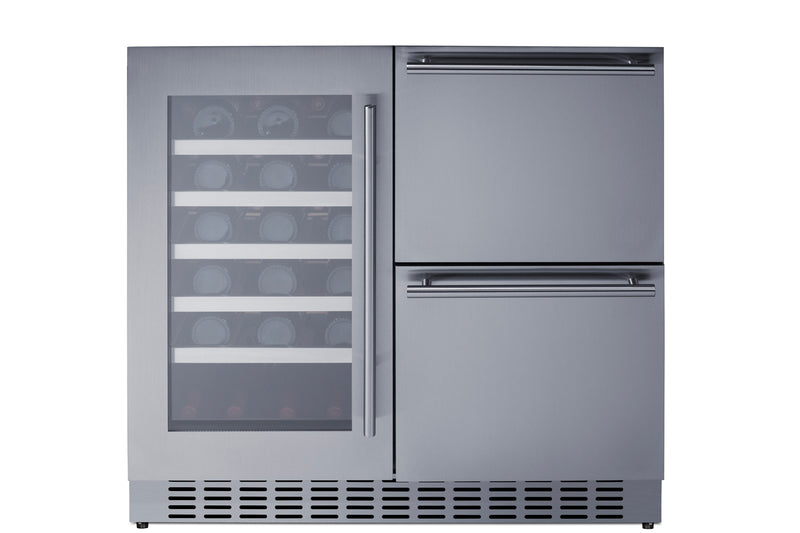

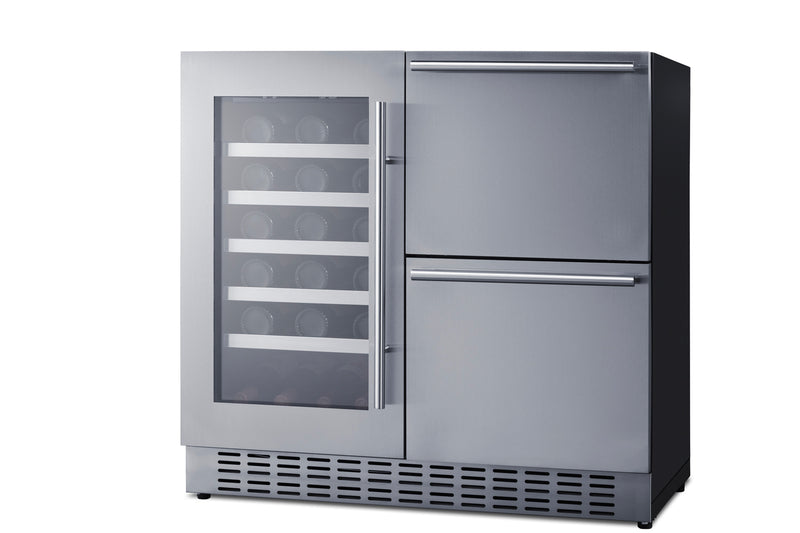

The Summit SWCDAR36UC is a 36 inch wide undercounter unit that combines a 34-bottle wine cellar at 40 to 72°F with a two-drawer refrigerator at 35 to 47°F, each with its own control, for home bars, kitchens and entertaining spaces.

Best for

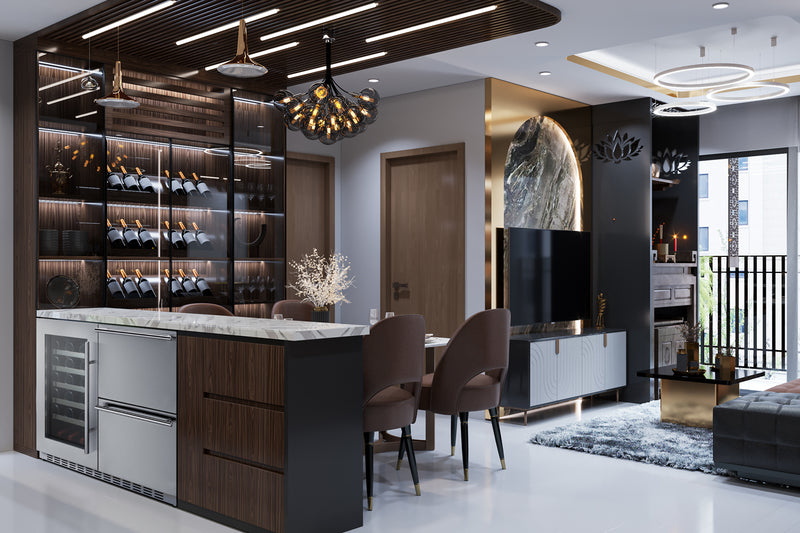

Wine plus food or drinks in one 36 inch undercounter space.
Lower ADA counters: choose the ADA Height version (ADRWC36), 32.38 inches tall, also panel-ready (ADRWC36PNR).
A built-in that breathes from the front, or freestanding use.
Commercial settings as well as homes. Summit lists it as ETL-S listed to NSF-7 standards.

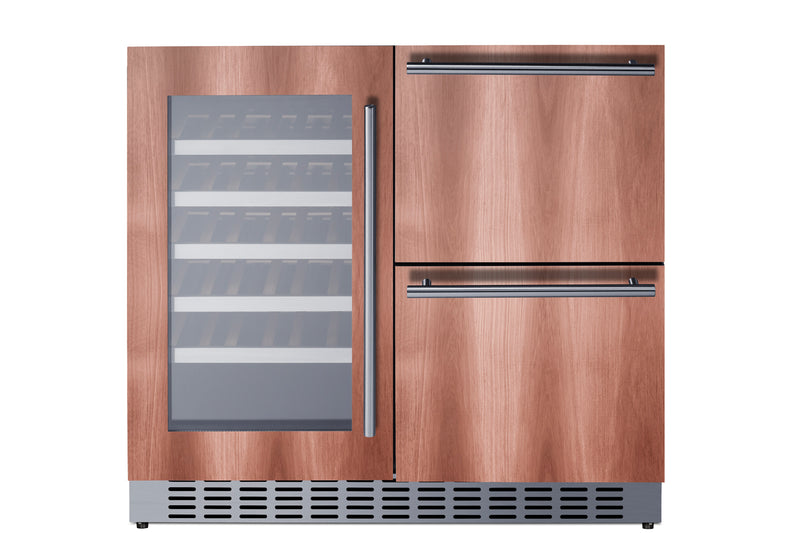

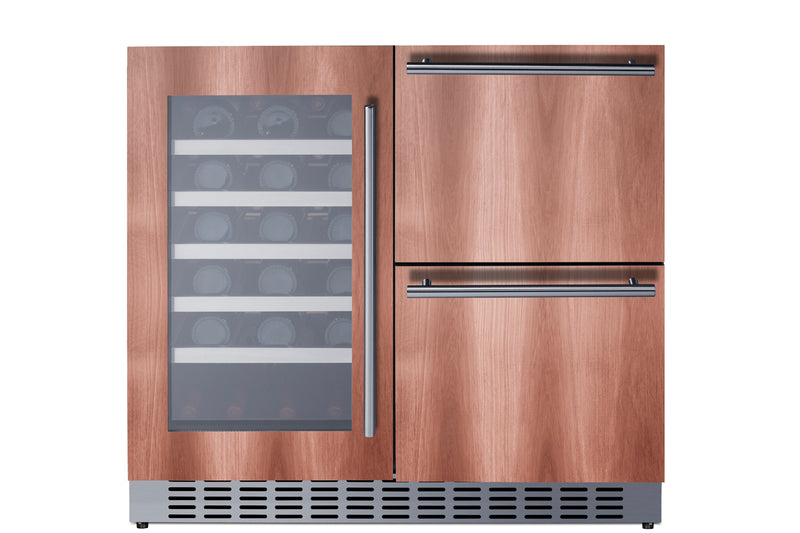

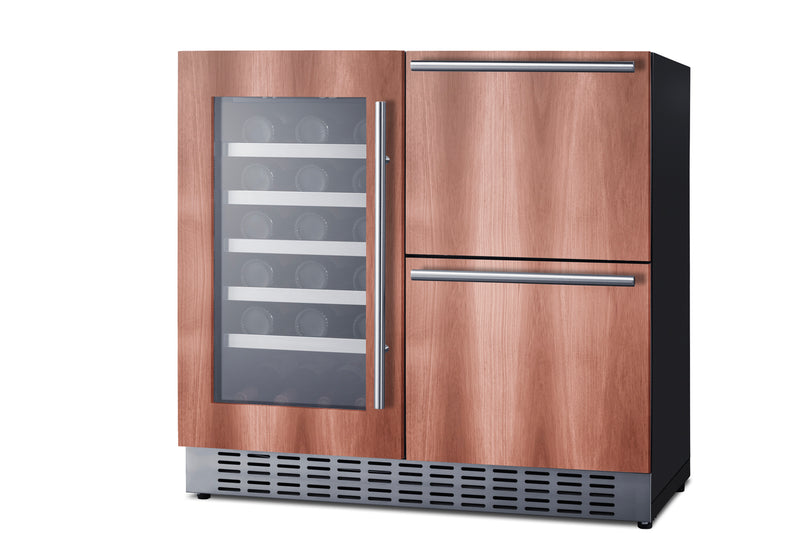

Matching cabinetry with the panel-ready version.

Not the right fit if

You need two wine temperatures. The second zone is the refrigerator drawers.
You need a lock. Summit lists no door lock for this model.

Installation requirements

Cutout 34 1/2 inches high, 36 inches wide and 23 5/8 inches deep, per Summit, for the standard height. The ADA version is 32.38 inches tall and we confirm its cutout with you before you order. Install the included anti-tip bracket.

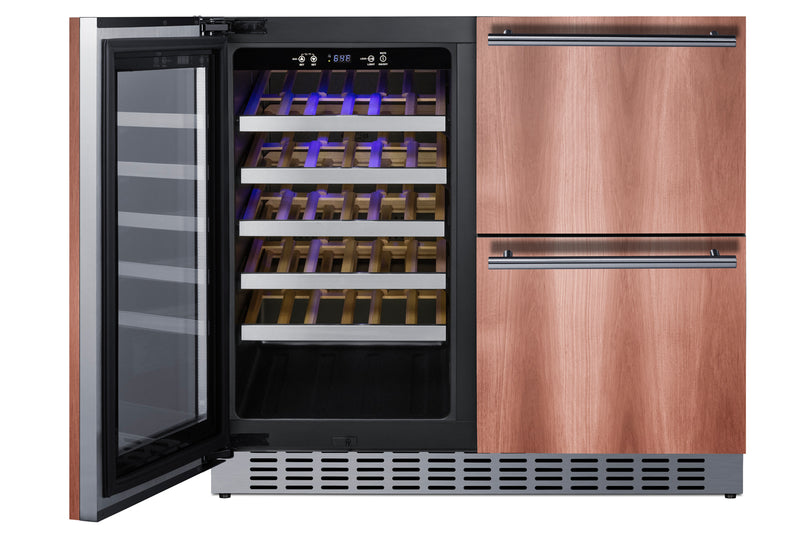

44.25 inches of depth with the wine door open at 90 degrees.

Key specs

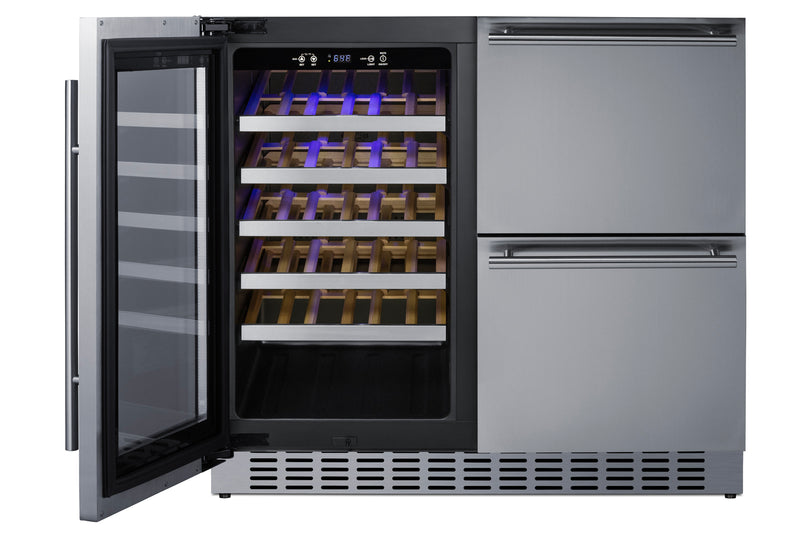

Wine cellar	34 Bordeaux or Burgundy bottles, 5 wooden shelves, 40 to 72°F

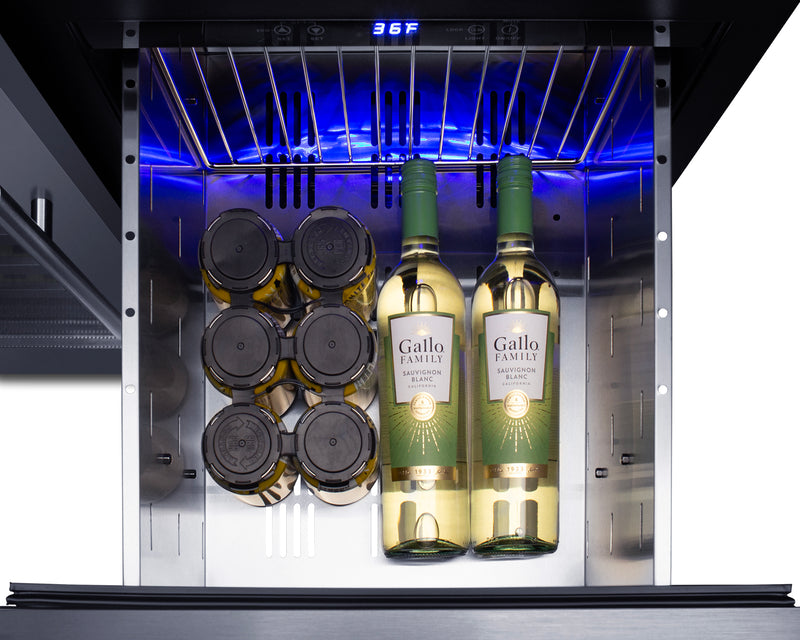

Refrigerator	2 stainless steel drawers, 35 to 47°F
Dimensions	34.13" H x 35.5" W x 23.63" D; ADA version 32.38" H
Electrical	115 V, 60 Hz, 1.3 A
Weight	159 lb
Sound	34.3 dB
Warranty	1 year parts and labor, 5 years compressor
Shipping	Free, ships in 7 to 14 business days

Common questions

What is the ADA version? The ADRWC36 is the same combination at 32.38 inches tall, for lower counters built to ADA guidelines. It comes with the stainless trimmed glass door or panel-ready (ADRWC36PNR).

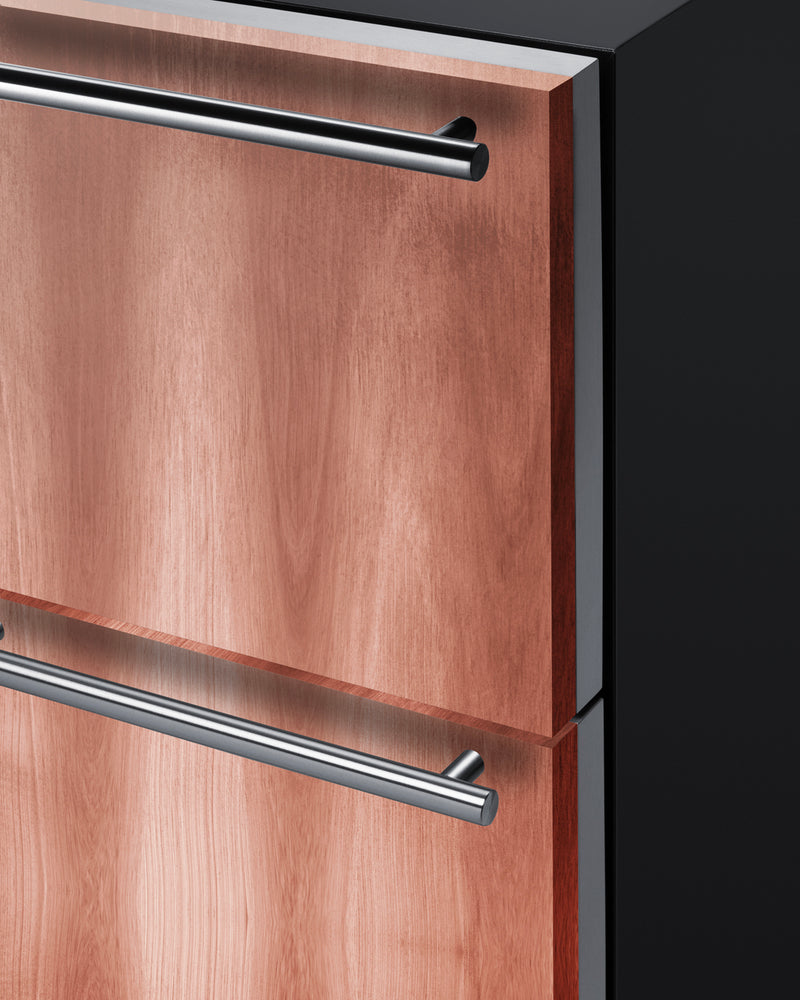

What does the panel-ready version need? Summit lists a wine door panel 29 1/8 inches high and 17 3/8 inches wide and drawer panels 14 1/2 inches high and 17 5/8 inches wide, all 3/4 inch thick. We confirm the sizes with you before you order panels.

Does it have alarms? Yes. A high and low temperature alarm and an alarm if a drawer or the door is left open for over 5 minutes.

Not sure it fits your space? Chat with our AI wine specialist or call (331) 244-8273, Monday to Friday, 9 to 5 CT, and we will check it before you order.

Wine Majesty is an authorized Summit dealer.

Capacity & Configuration

Wine Capacity	34 bottles (Bordeaux or Burgundy)
Refrigerator	2 sealed drawers
Cooling Zones	2 independent zones

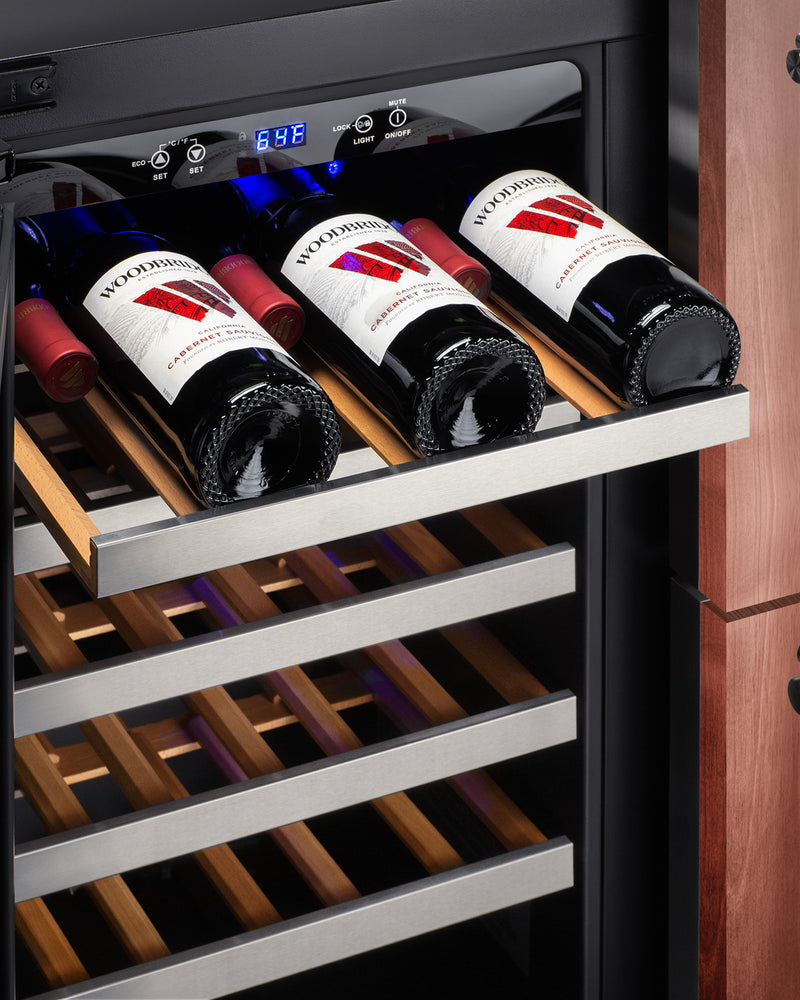

Wine Shelves	5 wood shelves with stainless steel trim
Use	Commercial or residential

Construction & Finish

Cabinet	Black
Door	Double-pane tempered glass

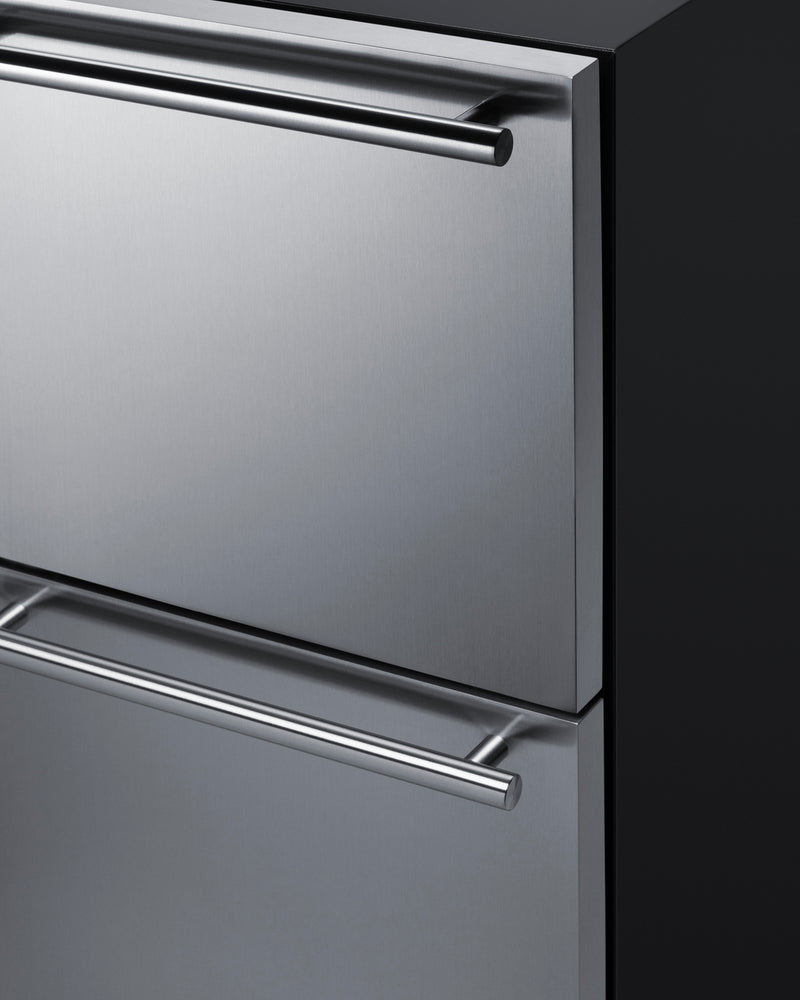

Trim	Stainless steel fronts and kickplate
Door Swing	User-reversible, articulating hinge
Lighting	LED both zones with on/off switch
Anti-Tip	Bracket included

Dimensions & Weight

Height	34.13 in (87 cm); ADA version 32.38 in (82 cm)
Width	35.5 in (90 cm)
Depth	23.63 in (60 cm)
Depth with Panel	24.13 in (61 cm)
Weight	159.0 lb (72 kg)

Cooling, Electrical & Certifications

Wine Temperature	40-72F
Refrigerator Temperature	35-47F
Refrigerant	R600a
Power	115V / 60Hz, 1.3 Amps
Defrost	Frost-free
Certifications	ETL, ETL-C, ETL-S to NSF-7, STAR-K, Sabbath Mode
Sound	34.3 dB
Warranty	1 yr parts & labor, 5 yr compressor

Summit SWCDAR36UC 36" Undercounter Wine Cooler & Drawer Refrigerator, Dual-Zone - Dimensions

Footprint & Clearances

Check the manual for the ventilation clearance before you build it in.

Height

34.13" (87cm)

Width

35.5" (90cm)

Depth

23.63" (60cm)

Weight

159.0 lb

Capacity

34 bottles

Manufacturer spec sheets and installation manuals are available on request, plus CAD files where the brand provides them.

Request CAD Files →

What we can send depends on the manufacturer.

STEP 01

Unpack and stand upright

Let the unit stand upright before first power-on so the refrigerant can settle. The manual gives the exact wait.

STEP 02

Position and level

Place and level the unit, leaving the ventilation clearance the manual specifies. Build it in only if the model is rated for built-in use.

STEP 03

Power and set

Plug in, set the temperature and let the unit cool down before loading it.

Downloads & Resources

Warranty

Parts & Labor	1 year from date of purchase
Compressor	Years 2 to 5 · see full terms
Who Is Covered	Original buyer · not transferable
Where	Contiguous 48 states

Full Summit Warranty Terms →

Care Instructions

Exterior	Soft, damp cloth · no abrasive cleaners
Interior	Mild soap and warm water, then dry
Door Gasket	Wipe clean · check the seal periodically
Refrigerant	Qualified technician only · do not self-service

Reviews across all our products

39 collectors can't be wrong.

4.9

out of 5

Based on 39 verified purchases

5★

33

4★

6

3★

0

2★

0

1★

0

Review Highlights

Great service 15 Fast delivery 30 Build quality 18 Quiet operation 8 Easy install 12

Sort

Questions? Call (331) 244-8273 Mon to Fri · 9 AM to 5 PM CT

Designed For The Discerning Collector

Summit storage, sold new through an authorized dealer.

View Full Specifications →

01

Two Temperature Zones

Temperature range of 40 to 72°F.

02

34-Bottle Capacity

34 bottles (Bordeaux or Burgundy). The real count depends on bottle shape and size.

03

Wood Shelving

5 wood shelves with stainless steel trim.

04

Double-Pane Glass Door

Double-pane tempered glass.

05

Interior Lighting

LED both zones with on/off switch.

06

Summit Warranty

One year on parts and labor, then a replacement compressor through year five, for the original buyer. Read the full terms.
