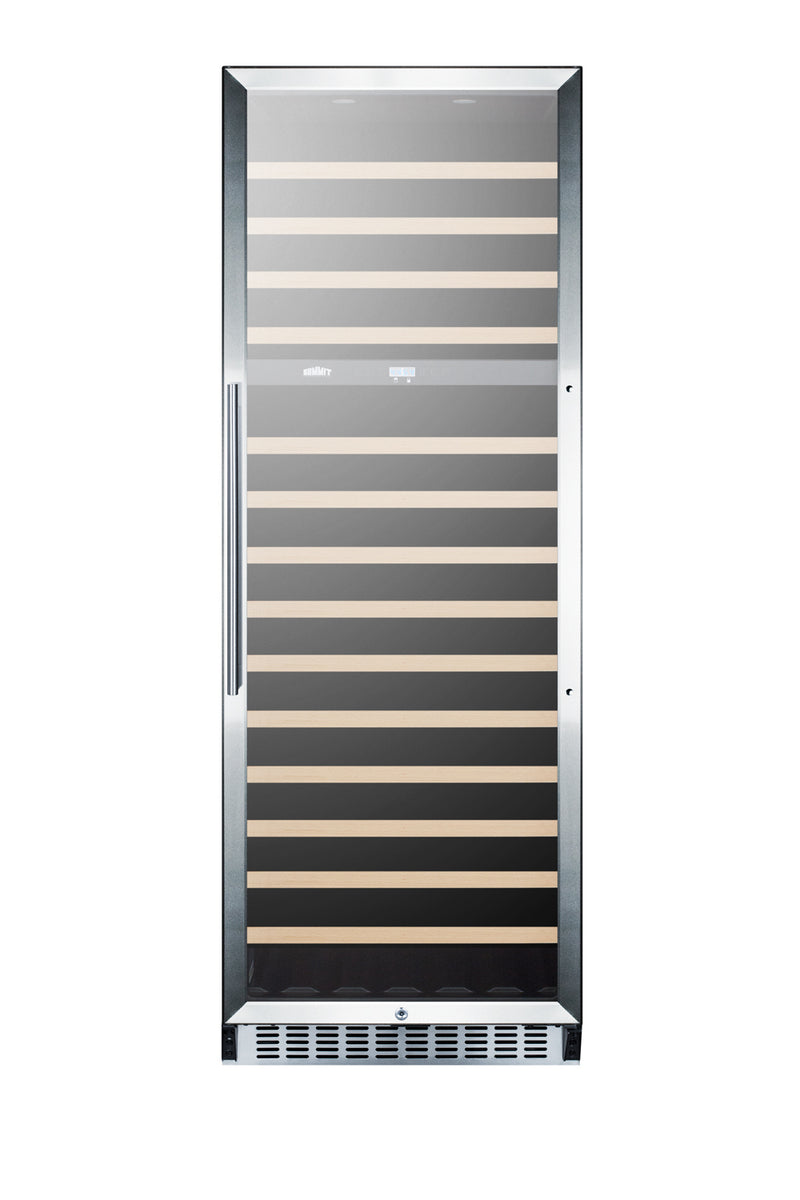

Summit SWC1966 24 in dual-zone wine cellar, black cabinet, front

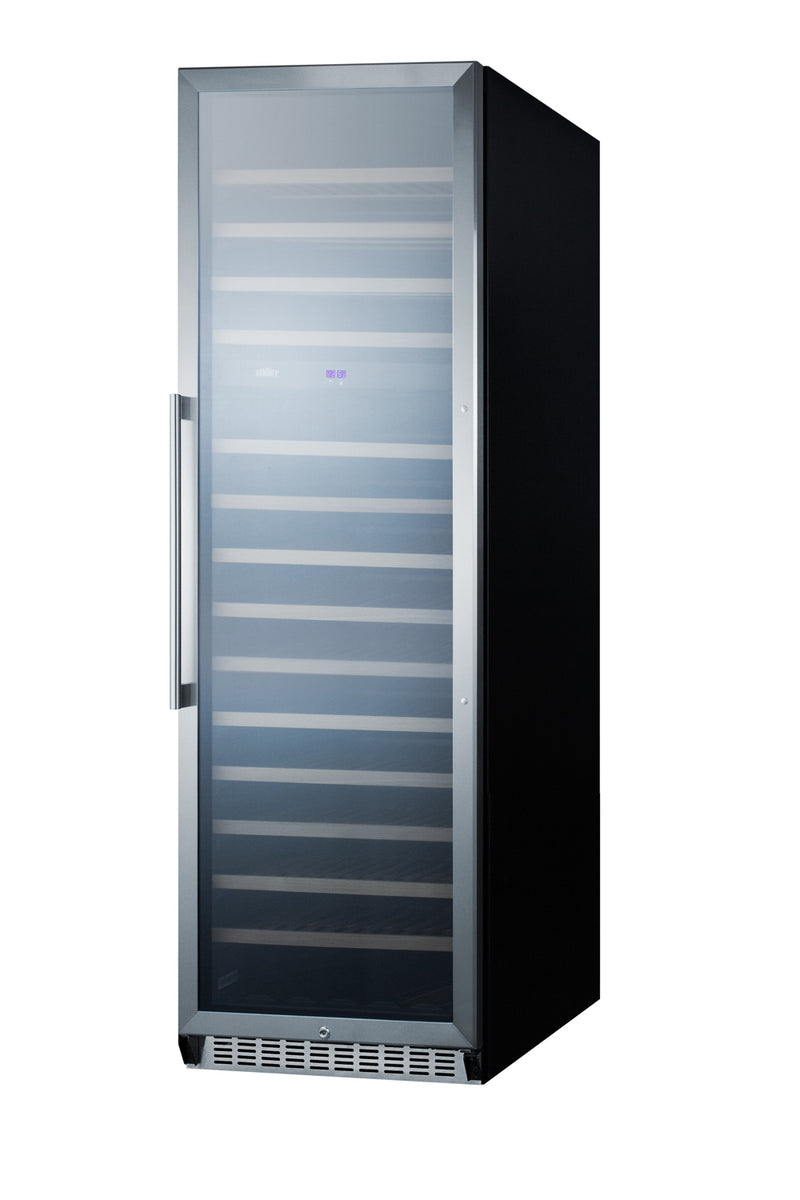

Summit SWC1966 wine cellar, black cabinet, angle view

Summit SWC1966 wine cellar filled with bottles

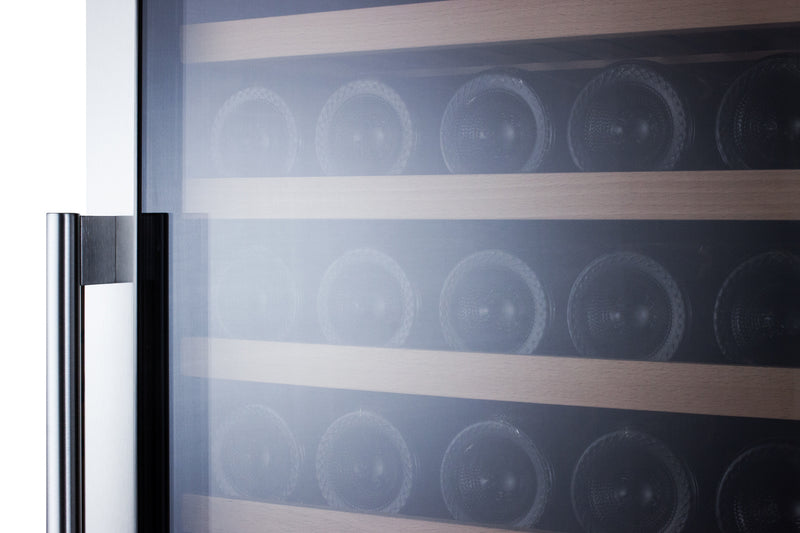

Summit SWC1966 stainless steel handle and wood shelves

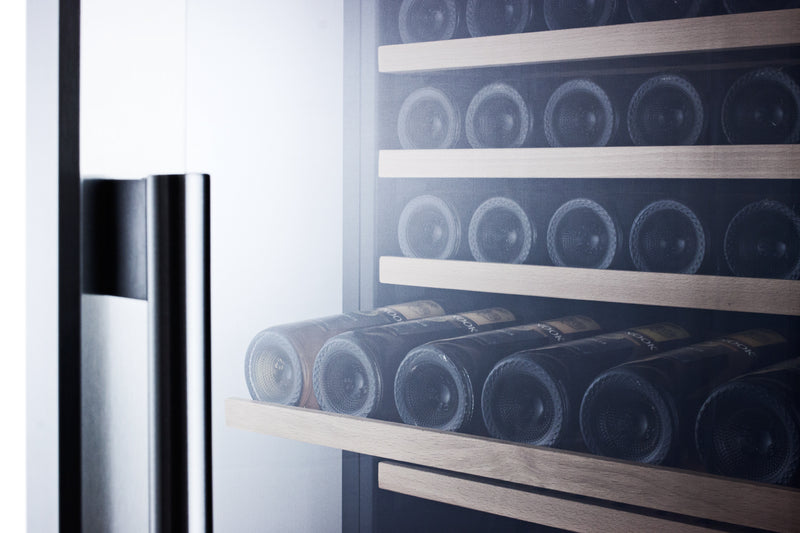

Summit SWC1966 slide-out wood shelf detail

Summit SWC1966CSS wine cellar, stainless steel cabinet, front

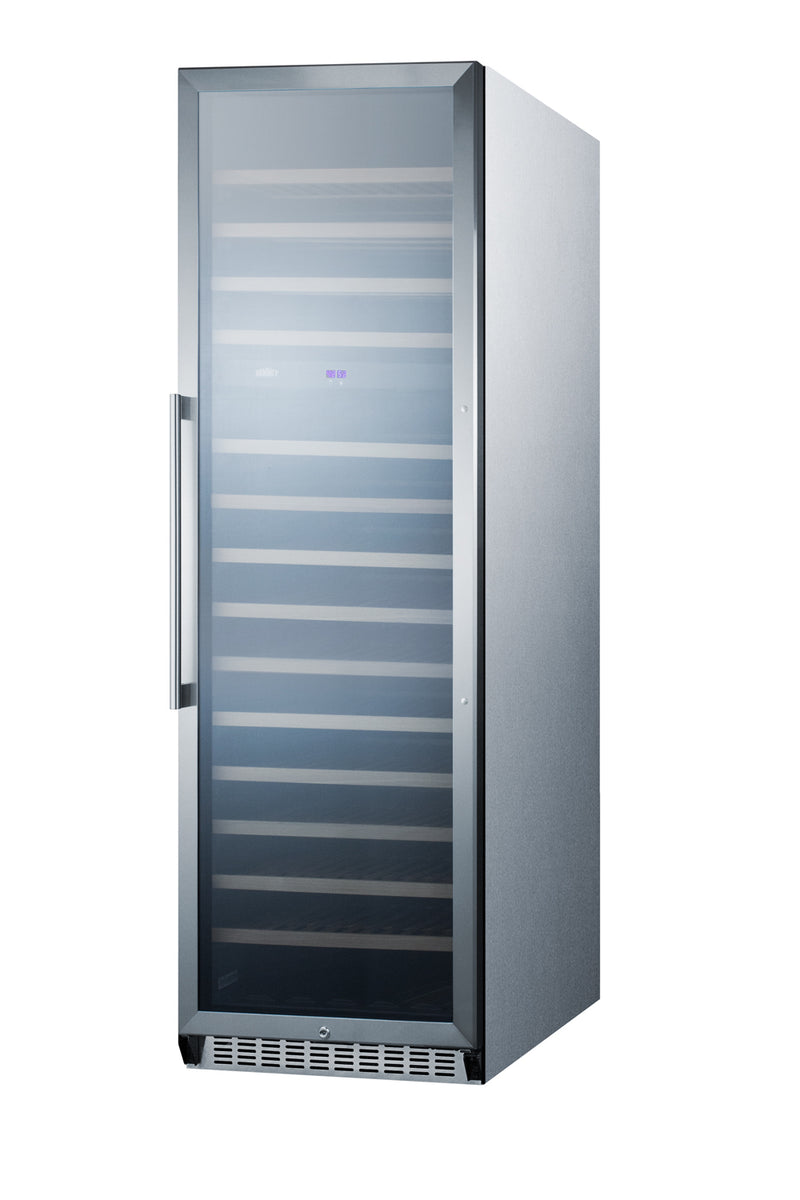

Summit SWC1966CSS wine cellar, stainless steel cabinet, angle view

Summit SWC1966CSS stainless steel wine cellar filled with bottles

Summit 4.9 · 39 verified reviews

Summit SWC1966 24" Dual-Zone Wine Refrigerator, 160-Bottle Full-Height Wine Cellar

Name: Summit SWC1966 24" Dual-Zone Wine Refrigerator, 160-Bottle Full-Height Wine Cellar
Brand: Summit
SKU: SWC1966
Price: 2495.0 USD
Availability: InStock

$3,175.00

$3,175.00 - $4,575.00

$3,175.00

$2,495.00

$2,495.00 - $3,645.00

$2,495.00

Pay in full

Free shipping included

Pay monthly from /mo

with Shop Pay Installments

Capacity160 bottles

Zones2 zones

Width23.63 in

Height69.75 in

Available · Ships in 7 to 14 business days

Trusted by 39+ collectors★★★★★4.9 · 39 verified reviews

Quantity

SKU: SWC1966

AI

Free Cellar ConsultationChat with our AI Wine Specialist, any time.Or call our team: (331) 244-8273 · Mon to Fri, 9 to 5 CT

Call

Free Standard DeliveryTo the contiguous United States
1 Year Parts and LaborCompressor covered to year 5 · Summit
No Change-of-Mind ReturnsUnopened units only · see return policy
Authorized Summit DealerShips new and sealed

Overview

Built to keep the collection at its temperature.

The Summit SWC1966 is a 24 inch wide, full-height wine refrigerator with two zones: 41 to 55°F for white and sparkling wine above and 55 to 72°F for reds below. It holds up to 160 standard Bordeaux bottles or 118 wider Burgundy bottles on 14 slide-out wooden shelves.

Best for

Large collections kept at two temperatures.
Freestanding placement. The cabinet is fully finished, in black or 304 grade stainless steel.
A modified built-in with at least 2 inches clear behind the unit.

Not the right fit if

You want a flush built-in with no gap at the back. The SWCP2163 and SDHWC98 breathe from the front.
There is not 48.75 inches of depth in front for the door open at 90 degrees.

Installation requirements

Freestanding, or built in with at least 2 inches of clearance at the rear for ventilation.
A 115 V outlet; the unit draws 1.7 A.

Key specs

Capacity	160 Bordeaux bottles (118 Burgundy)
Zones	Upper 41 to 55°F, lower 55 to 72°F
Dimensions	69.75" H x 23.63" W x 26.63" D (27.75" D with handle)
Weight	187 lb black, 195 lb stainless
Sound	33.7 dB
Warranty	1 year parts and labor, 5 years compressor
Shipping	Free, ships in 7 to 14 business days

Common questions

Which way does the door open? The standard unit opens from the right and the door is user-reversible. We also list a left hinge version.

Does it have alarms? Yes. A high temperature alarm, an open door alarm after 60 seconds and a memory that restores the last settings after a power loss.

Is it kosher certified? Summit lists STAR-K certification and a Sabbath mode.

Not sure it fits your space? Chat with our AI wine specialist or call (331) 244-8273, Monday to Friday, 9 to 5 CT, and we will check it before you order.

Wine Majesty is an authorized Summit dealer.

Capacity & Configuration

Bottle Capacity	160 Bordeaux bottles, or 118 Burgundy
Champagne	Up to 22 champagne plus 132 Bordeaux
Interior Volume	15.9 cu ft (450 L)
Cooling Zones	2 zones
Shelves	14 slide-out wood shelves
Controls	Two digital thermostats, display in °F or °C
Lighting	Recessed LED

Construction & Features

Cabinet	Black, fully finished for freestanding use (SWC1966); 304 stainless steel wrapped (SWC1966CSS)
Door	Double-pane tempered glass, slightly tinted, stainless steel trim
Handle & Kickplate	Stainless steel
Door Swing	Right hand, user-reversible
Lock	Factory-installed keyed lock
Alarms	High temperature; door open over 60 seconds
Power Loss	Temperature memory restores the last settings
Sabbath Mode	Disables lighting and alarm for up to 48 hours

Dimensions & Installation

Height	69.75 in (177 cm)
Width	23.63 in (60 cm)
Depth	26.63 in (68 cm)
Depth with Handle	27.75 in (70 cm)
Depth, Door Open 90°	48.75 in (124 cm)
Nominal Size	70 in H x 24 in W x 27 in D
Installation	Freestanding, or built-in with at least 2 in clearance at the back
Built-in Clearance	1/4 in each side, 2 in back, 1/8 in top; keep the front vent open
Weight	187 lb (85 kg) black · 195 lb (88 kg) stainless

Cooling, Electrical & Certifications

Temperature	Upper zone 41°F to 55°F · lower zone 55°F to 72°F
Fans	Interior and exterior
Refrigerant	R600a, 1.91 oz
Defrost	Automatic
Electrical	115V AC / 60 Hz, 1.7 A, three-prong grounded outlet
Room	Indoor use only, not below 60°F
Sound Level	33.7 dB
Certifications	ETL, ETL-C, STAR-K, CARB compliant
Commercial Design	Meets UL-471 commercial standards (black SWC1966)
Warranty	1 year parts and labor · compressor 5 years, replacement labor not included

Summit SWC1966 24" Dual-Zone Wine Refrigerator, 160-Bottle Full-Height Wine Cellar - Dimensions

Footprint & Clearances

Check the manual for the ventilation clearance before you build it in.

Height

69.75" (177cm)

Width

23.63" (60cm)

Depth

26.63" (68cm)

Weight

187.0 lb

Capacity

160 bottles

Manufacturer spec sheets and installation manuals are available on request, plus CAD files where the brand provides them.

Request CAD Files →

What we can send depends on the manufacturer.

STEP 01

Unpack and stand upright

Let the unit stand upright before first power-on so the refrigerant can settle. The manual gives the exact wait.

STEP 02

Position and level

Place and level the unit, leaving the ventilation clearance the manual specifies. Build it in only if the model is rated for built-in use.

STEP 03

Power and set

Plug in, set the temperature and let the unit cool down before loading it.

Downloads & Resources

Warranty

Parts & Labor	1 year from date of purchase
Compressor	Years 2 to 5 · see full terms
Who Is Covered	Original buyer · not transferable
Where	Contiguous 48 states

Full Summit Warranty Terms →

Care Instructions

Exterior	Soft, damp cloth · no abrasive cleaners
Interior	Mild soap and warm water, then dry
Door Gasket	Wipe clean · check the seal periodically
Refrigerant	Qualified technician only · do not self-service
