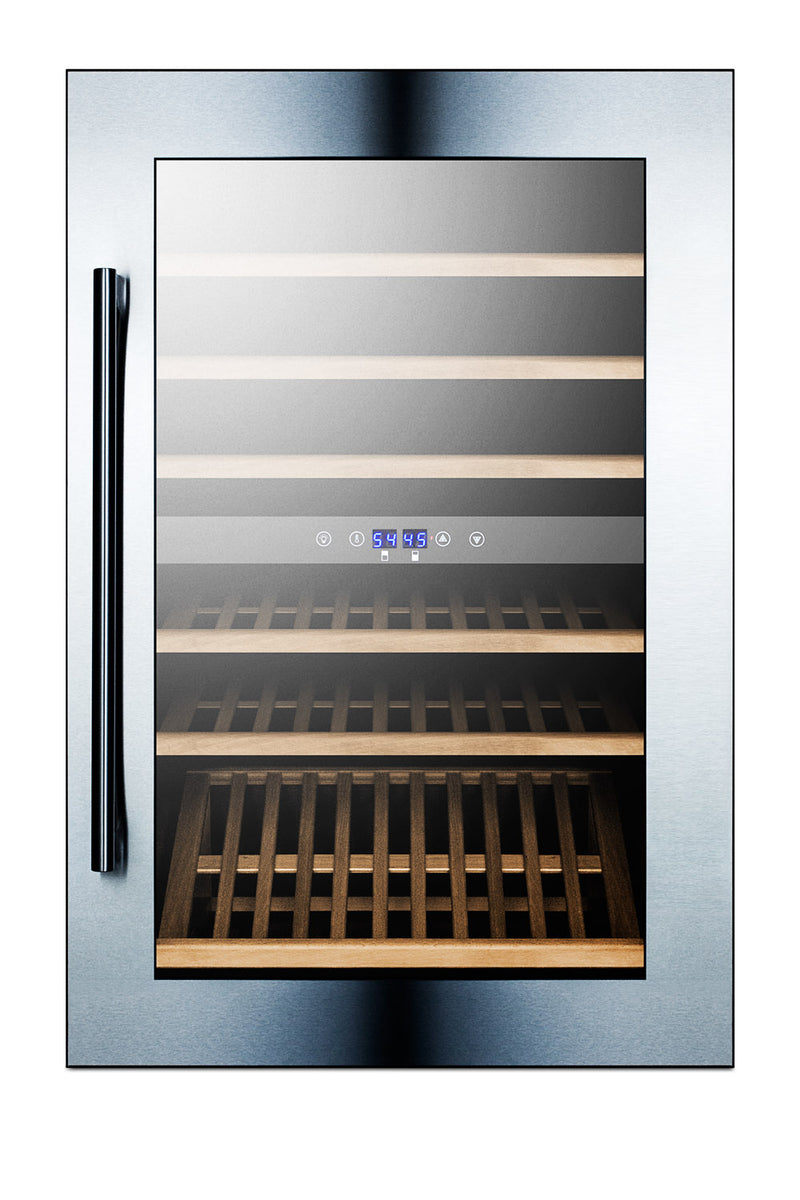

Summit VC60D 51-bottle fully integrated dual-zone wine cellar, front

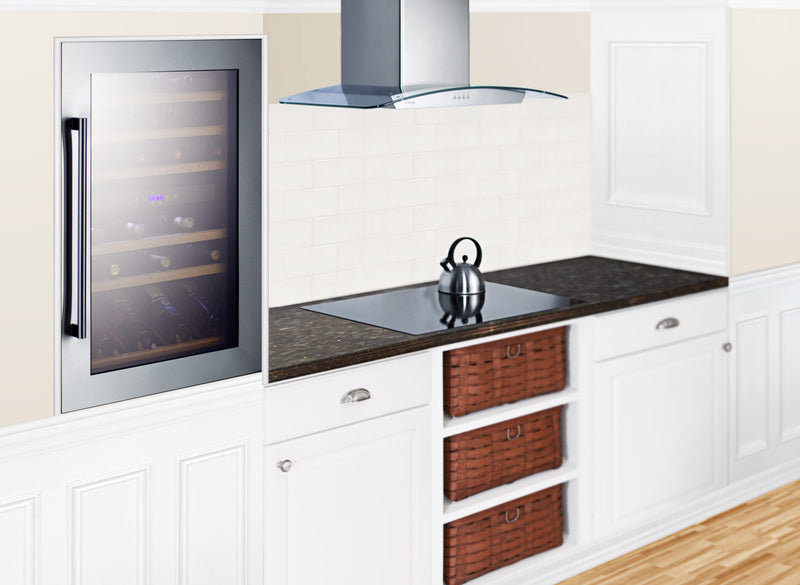

Summit VC60D integrated wine cellar installed in cabinetry

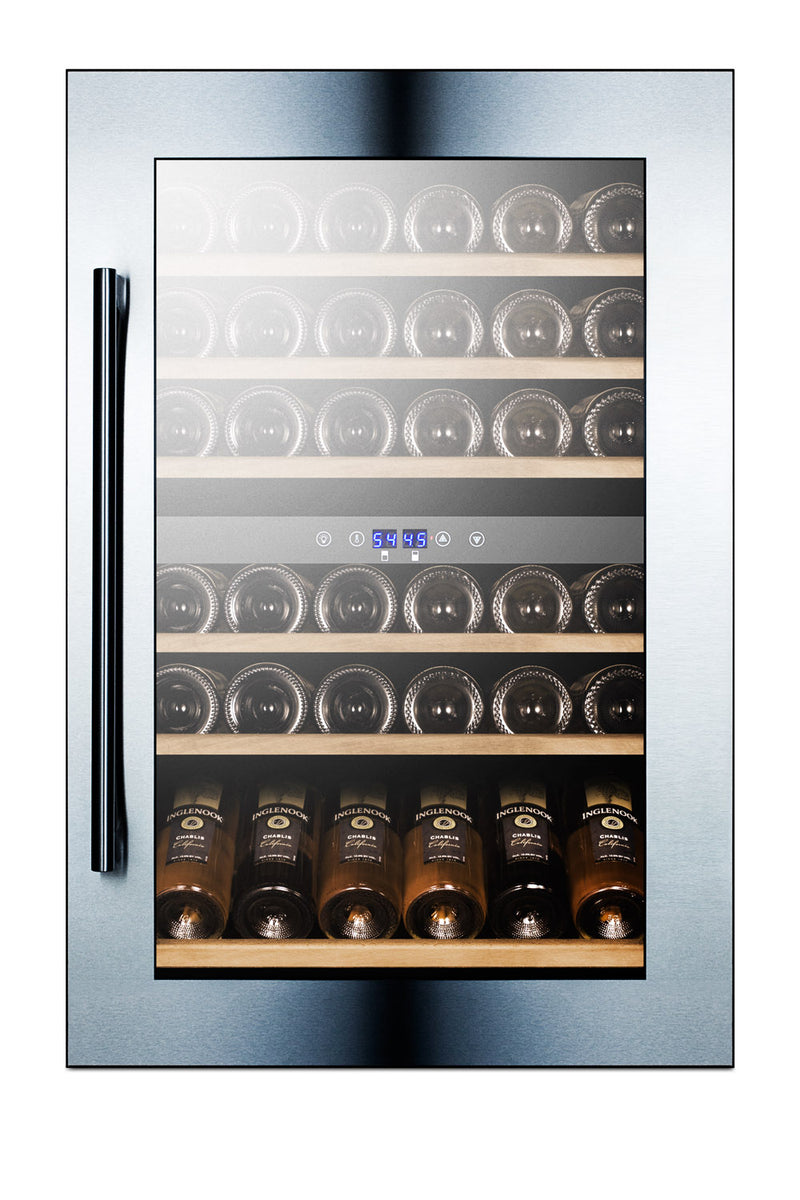

Summit VC60D wine cellar filled with bottles

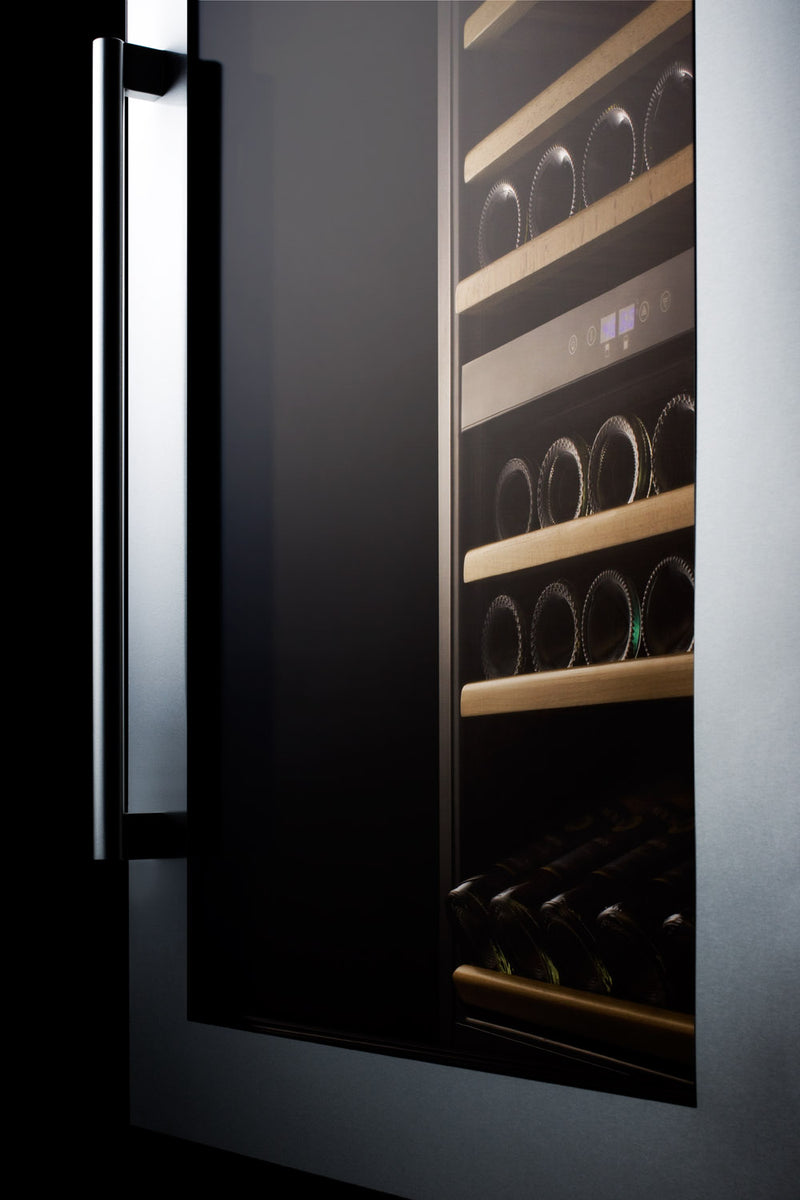

Summit VC60D stainless steel trimmed glass door and wood shelves

Summit VC60D 24" Fully Integrated Dual-Zone Wine Refrigerator, 51-Bottle Built-In

Name: Summit VC60D 24" Fully Integrated Dual-Zone Wine Refrigerator, 51-Bottle Built-In
Brand: Summit
SKU: VC60D
Price: 1695.0 USD
Availability: InStock

$2,245.00

$2,245.00 - $2,295.00

$2,245.00

$1,695.00

$1,695.00 - $1,735.00

$1,695.00

Pay in full

Free shipping included

Pay monthly from /mo

with Shop Pay Installments

Capacity51 bottles

Zones2 zones

Width23.25 in

Height34.88 in

Available · Ships in 7 to 14 business days

Trusted by 39+ collectors★★★★★4.9 · 39 verified reviews

Quantity

SKU: VC60D

AI

Free Cellar ConsultationChat with our AI Wine Specialist, any time.Or call our team: (331) 244-8273 · Mon to Fri, 9 to 5 CT

Call

Free Standard DeliveryTo the contiguous United States
1 Year Parts and LaborCompressor covered to year 5 · Summit
No Change-of-Mind ReturnsUnopened units only · see return policy
Authorized Summit DealerShips new and sealed

Overview

Built to keep the collection at its temperature.

The Summit VC60D is a 24 inch, 51-bottle wine refrigerator designed for fully integrated installation in cabinetry. The upper zone runs 41 to 55°F for whites and the lower zone 55 to 72°F for reds and blush.

Best for

Kitchens and bars where the unit goes inside cabinetry.
Showing labels. A tilted rack stands bottles at an angle to display the label.
Kosher kitchens. Summit lists STAR-K certification and a Sabbath mode.

Not the right fit if

You want it to stand on its own. The cabinet is unfinished and designed for integrated installation.
You want a wood panel on the door. Summit lists no panel-ready option for the VC60D.
You need more than 51 bottles.

Installation requirements

Cutout 34 3/8 to 34 5/8 inches high, 21 5/8 inches wide and 21 5/8 inches deep.
Ventilation and spacing as set out in Summit's user manual, which calls for an air vent in the cabinet base. We check this with you before you order.

Key specs

Capacity	51 bottles
Zones	Upper 41 to 55°F, lower 55 to 72°F
Dimensions	34.88" H x 23.25" W x 22.38" D (25.13" D with handle)
Electrical	115 V, 60 Hz, 2.0 A
Weight	110 lb
Warranty	1 year parts and labor, 5 years compressor
Shipping	Free, ships in 7 to 14 business days

Common questions

Is the VC60D panel-ready? No. Summit describes it as fully integrated, with a stainless trimmed glass door, and lists no panel option.

Which way does the door open? The standard unit opens from the right and the door is user-reversible. We also list a left hinge version.

Can the light stay on? Yes. The interior light can stay on in showcase mode or turn on only when the door opens.

Not sure it fits your space? Chat with our AI wine specialist or call (331) 244-8273, Monday to Friday, 9 to 5 CT, and we will check it before you order.

Wine Majesty is an authorized Summit dealer.

Capacity & Configuration

Bottle Capacity	51 Bordeaux bottles, or 36 Burgundy
Cooling Zones	2 zones
Shelves	6 slide-out wood shelves: 5 standard plus a tilted display shelf
Controls	Digital thermostat, display in °F or °C
Lighting	LED, showcase mode (stays on) or functional mode (on when the door opens)
Interior, Upper Zone	10.0 in H x 18.25 in W x 16.75 in D
Interior, Lower Zone	19.0 in H x 18.25 in W x 15.0 in D

Construction & Features

Cabinet	Unfinished, for fully integrated installation
Door	Double-pane tempered glass, seamless stainless steel trim
Door Swing	Right hand, user-reversible
Humidity	Condensation collection system maintains humidity inside
Alarms	Door open over one minute; temperature out of range
Sabbath Mode	Disables lighting and alarms for 48 hours

Dimensions & Installation

Height	34.88 in (89 cm)
Width	23.25 in (59 cm)
Depth	22.38 in (57 cm)
Depth with Handle	25.13 in (64 cm)
Depth, Door Open 90°	45.0 in (114 cm)
Nominal Size	35 in H x 24 in W x 23 in D
Installation	Fully integrated (built-in)
Cutout	34 3/8 in to 34 5/8 in H x 21 5/8 in W x 21 5/8 in D
Ventilation	Air vent in the base of the housing, channels at least 200 cm²
Weight	110 lb (50 kg)

Cooling, Electrical & Certifications

Temperature	Upper zone 41°F to 55°F · lower zone 55°F to 72°F
Cooling	Dynamic compressor cooling, interior fan
Refrigerant	R134a, 2.05 oz
Defrost	Automatic
Electrical	115V AC / 60 Hz, 2.0 A, three-prong grounded outlet
Room	Indoor use only, not below 60°F
Certifications	ETL, ETL-C, STAR-K
Commercial Design	Meets UL-471 commercial standards
Warranty	1 year parts and labor · compressor 5 years, replacement labor not included

Summit VC60D 24" Fully Integrated Dual-Zone Wine Refrigerator, 51-Bottle Built-In - Dimensions

Footprint & Clearances

Check the manual for the ventilation clearance before you build it in.

Height

34.88" (89cm)

Width

23.25" (59cm)

Depth

22.38" (57cm)

Weight

110.0 lb

Capacity

51 bottles

Manufacturer spec sheets and installation manuals are available on request, plus CAD files where the brand provides them.

Request CAD Files →

What we can send depends on the manufacturer.

STEP 01

Unpack and stand upright

Let the unit stand upright before first power-on so the refrigerant can settle. The manual gives the exact wait.

STEP 02

Position and level

Place and level the unit, leaving the ventilation clearance the manual specifies. Build it in only if the model is rated for built-in use.

STEP 03

Power and set

Plug in, set the temperature and let the unit cool down before loading it.

Downloads & Resources

Warranty

Parts & Labor	1 year from date of purchase
Compressor	Years 2 to 5 · see full terms
Who Is Covered	Original buyer · not transferable
Where	Contiguous 48 states

Full Summit Warranty Terms →

Care Instructions

Exterior	Soft, damp cloth · no abrasive cleaners
Interior	Mild soap and warm water, then dry
Door Gasket	Wipe clean · check the seal periodically
Refrigerant	Qualified technician only · do not self-service
